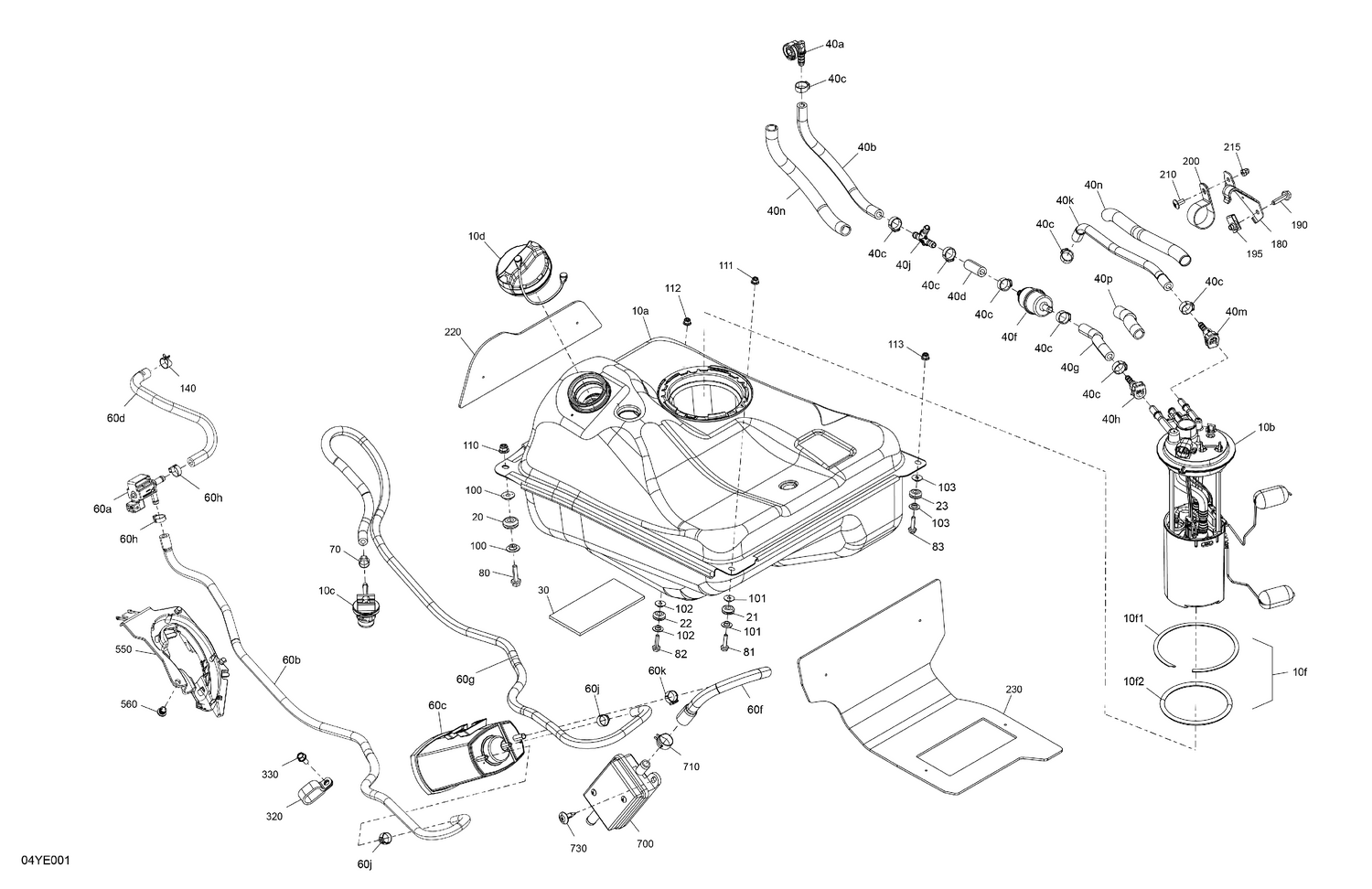

02- Engine - Fuel
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709001447 | Fuel Tank |
| 10b | 709001733 | Fuel Pump Module This part replaces 709001656. |
| 10c | 709000413 | Rollover Valve |
| 10d | 709000683 | Gaz Cap |
| 10f1 | XXX | Not Available As Spare Parts |
| 10f2 | XXX | Not Available As Spare Parts |
| 20 | 709000582 | Grommet |
| 21 | 709000582 | Grommet |
| 22 | 709000582 | Grommet |
| 23 | 709000582 | Grommet |
| 30 | 709001504 | Self Adhesive Insulating Pad |
| 40a | 293710105 | Elbow Fitting 90° |
| 40b | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 40c | 293650140 | Oetiker Clamp |
| 40d | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 40f | 513034047 | Fuel Filter |
| 40g | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 40h | 709000684 | Female Quick Fitting Ass'y |
| 40j | 513034150 | Y Fitting This part replaces 513034128. |
| 40k | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 40m | 293710192 | Quick Connect Pipe Fitting This part replaces 709000686. |
| 40n | 219704408 | Tubing 16 Mm 1000Mm Long |
| 40p | 513033231 | Protector Tube, 16 mm |
| 60a | 709001449 | Purge Valve |
| 60b | 709001623 | Formed Hose |
| 60c | 709000090 | Vapor Canister |
| 60d | 709001678 | Formed Hose |
| 60f | 709001112 | Hose, 238MM |
| 60g | 709001622 | Hose |
| 60h | 293650047 | Crimp Clamp, 15.3-706R |
| 60j | 293650025 | Oetiker Gear Clamp |
| 60k | 293650140 | Oetiker Clamp |
| 70 | 293650025 | Oetiker Gear Clamp |
| 80 | 207662554 | Hex. Flange Screw M6 X 25 |
| 81 | 207662554 | Hex. Flange Screw M6 X 25 |
| 82 | 207662554 | Hex. Flange Screw M6 X 25 |
| 83 | 207662554 | Hex. Flange Screw M6 X 25 |
| 100 | 709001287 | Bushing |
| 101 | 709001287 | Bushing |
| 102 | 709001287 | Bushing |
| 103 | 709001287 | Bushing |
| 110 | 233261466 | Hex. Flange Elastic Nut M6 |
| 111 | 233261466 | Hex. Flange Elastic Nut M6 |
| 112 | 233261466 | Hex. Flange Elastic Nut M6 |
| 113 | 233261466 | Hex. Flange Elastic Nut M6 |
| 140 | 513033029 | Universal Spring Clamp |
| 180 | 709000452 | Fuel Filter Support |
| 190 | 207662554 | Hex. Flange Screw M6 X 25 |
| 195 | 250100198 | Panel Nut M6 X 1.0 |
| 200 | 513033047 | Open Clamp |
| 210 | 250000767 | Torx Truss Screw M6 X 12 |
| 215 | 232361453 | Domed Hexagonal Nut Din.1587 |
| 220 | 709001374 | Heat Shield |
| 230 | 709001375 | Heat Shield |
| 320 | 709000057 | Open Clamp |
| 330 | 210261250 | Hex. Flange Screw M6 X 12 |
| 550 | 709001546 | Valve Purge Support |
| 560 | 518321954 | Panel Fastener |
| 700 | 709000524 | Air Filter |
| 710 | 513033865 | Spring Clamp |
