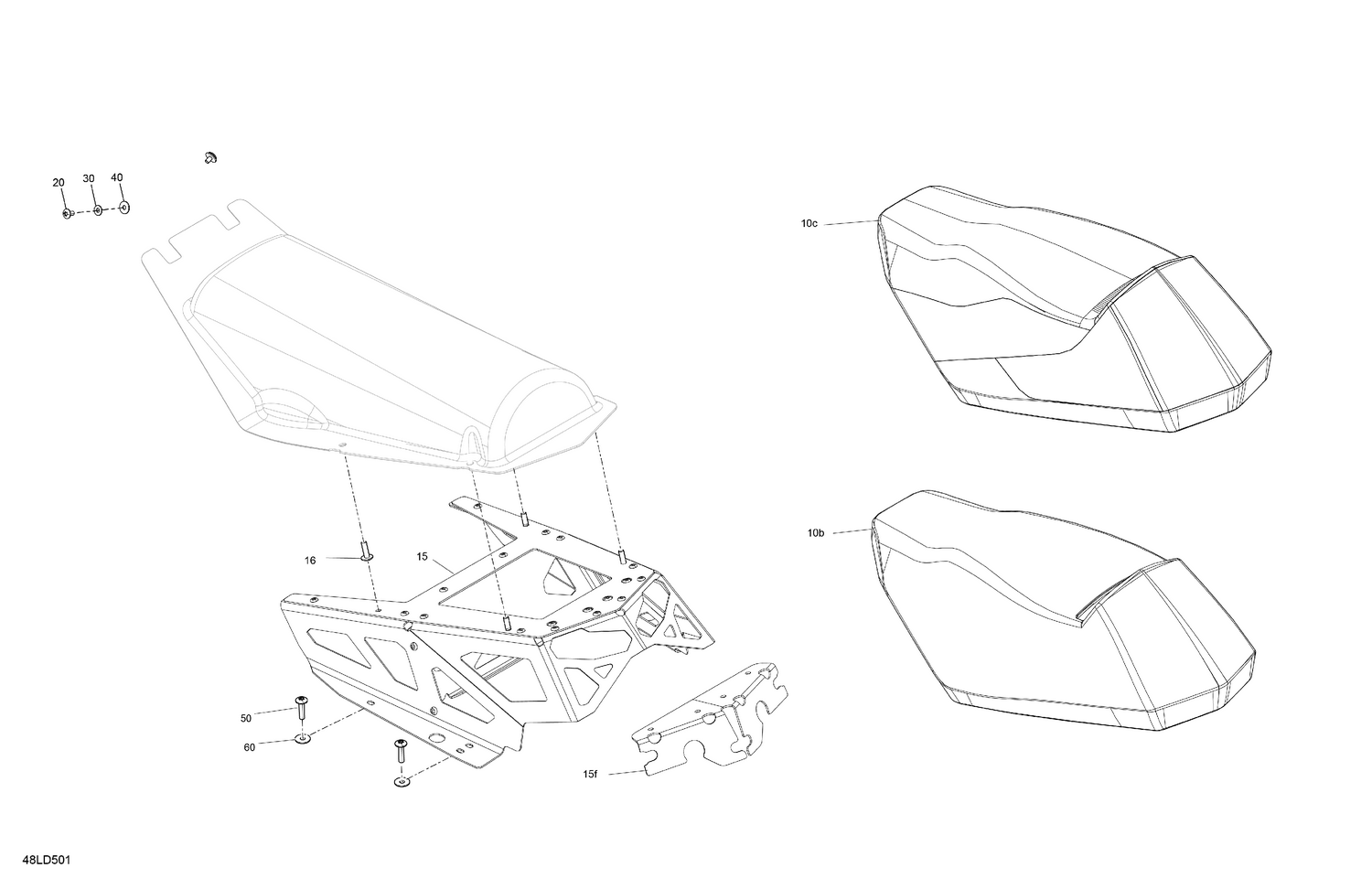

07- Body - Seat

07- Body - Seat

Parts (8)

RefPart NumberDescription
10b 510007862 Seat Foam
10c 510007847 Seat Cover
15f 520002296 Rear Light Support
16 250001000 Torx-Truss M/S M6 X 25
20 250000767 Torx Truss Screw M6 X 12
30 250200039 Flat Washer
40 250200200 Flat Washer 6 MM
50 250001000 Torx-Truss M/S M6 X 25
