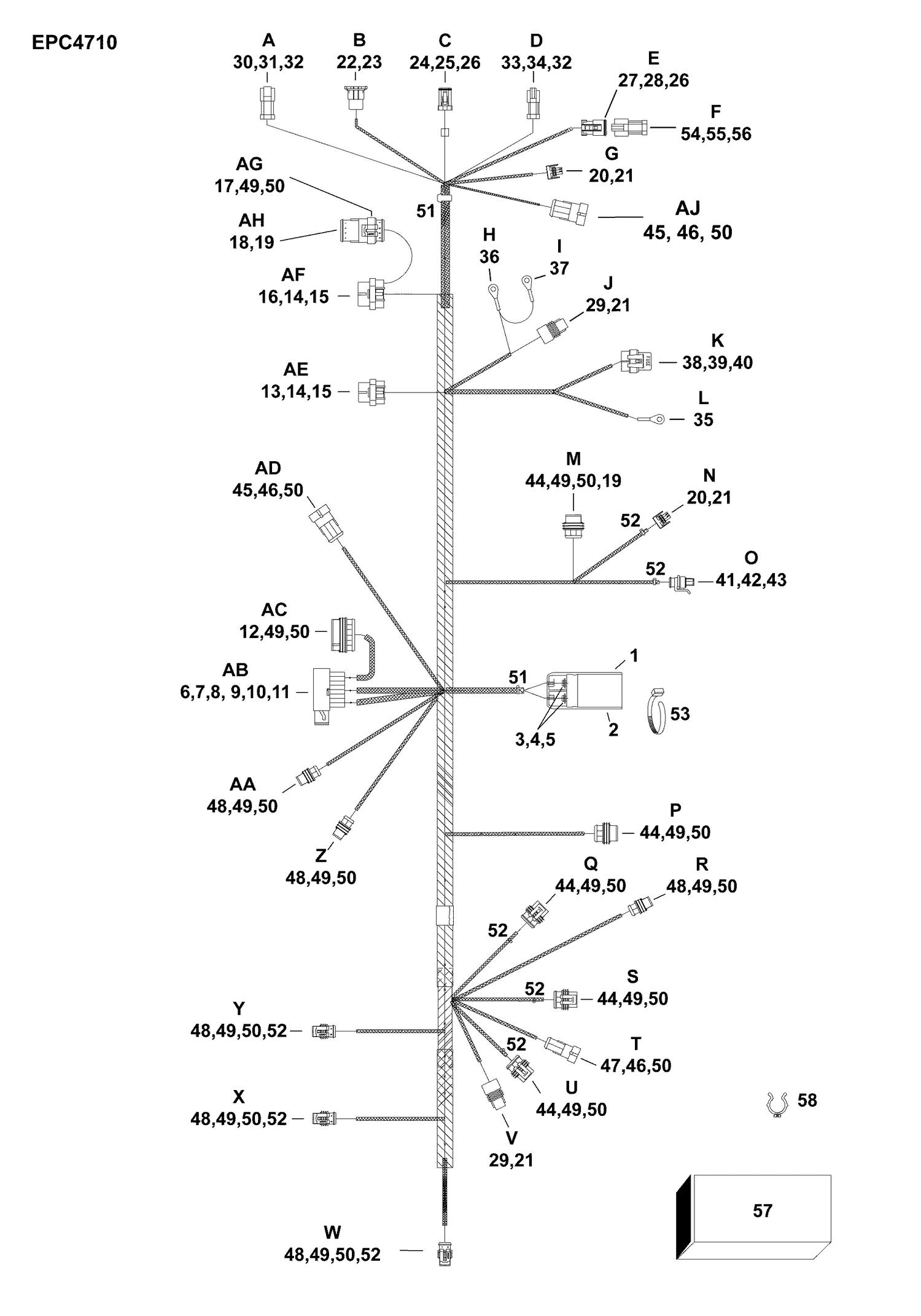

| Ref | Part Number | Description |
|---|
| A |
SYSTEM |
CHECK CONNECTOR |
| AA |
TILT |
LIMIT SWITCH CONNECTOR |
| AB |
EMM |
J2 CONNECTOR |
| AC |
STATOR |
CONNECTOR |
| AD |
TRIM |
SENDER CONNECTOR |
| AE |
EMM |
J1-B CONNECTOR |
| AF |
EMM |
J1-A CONNECTOR |
| AG |
CANbus |
CONNECTOR |
| AH |
SEAL |
ASSEMBLY, CANbus connector |
| B |
OIL |
PUMP CONNECTOR |
| C |
KEY |
SWITCH CONNECTOR |
| E |
DIAGNOSTIC |
CONNECTOR |
| F |
SEAL |
ASSEMBLY, Diagnostic connector |
| G |
CYLINDER |
HEAD TEMPERATURE SENDER |
| H |
STARTER |
SOLENOID GROUND |
| I |
CYLINDER |
BLOCK GROUND |
| J |
STARTER |
SOLENOID CONNECTOR |
| K |
FUSE |
HOLDER |
| M |
CRANKSHAFT |
POSITIION SENSOR |
| N |
AIR |
TEMPERATURE SENSOR |
| O |
THROTTLE |
POSITION SENSOR |
| Q |
IGNITION |
COIL #1 CONNECTOR |
| R |
FUEL |
PUMP CONNECTOR |
| S |
IGNITION |
COIL #2 CONNECTOR |
| T |
NUETRAL |
SWITCH |
| U |
IGNITION |
COIL #3 CONNECTOR |
| V |
LOW |
OIL SWITCH |
| W |
FUEL |
INJECTOR #1 CONNECTOR |
| X |
FUEL |
INJECTOR #2 CONNECTOR |
| Y |
FUEL |
INJECTOR #3 CONNECTOR |
| Z |
TRIM/TILT |
RELAY CONNECTOR |
| 51 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 58 |
3011450 |
ATTACHE, connecteur |
