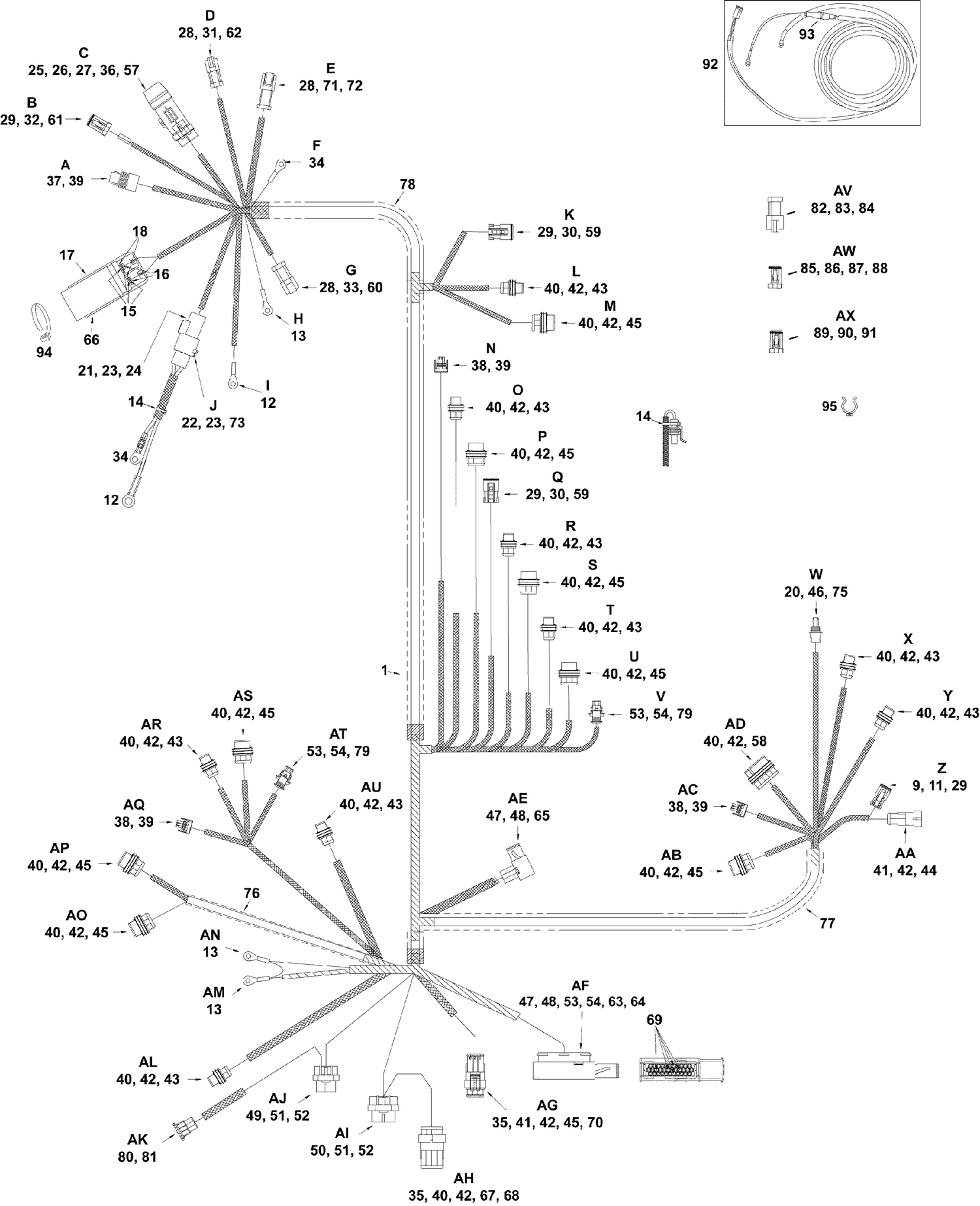

| Ref | Part Number | Description |
|---|
| A |
STARTER |
SOLENOID |
| AA |
SHIFT |
SWITCH CONNECTOR |
| AB |
CRANKSHAFT |
POSITION SENSOR CONNECTOR |
| AC |
AIR |
TEMPERATURE SENSOR |
| AD |
OIL |
PUMP CONNECTOR |
| AE |
STATOR |
CONNECTOR |
| AF |
EMM |
J2 CONNECTOR |
| AG |
WATER |
PRESSURE SENSOR CONNECTOR AND SEAL ASSEMBLY |
| AH |
CANbus |
CONNECTOR AND SEAL ASSEMBLY |
| AI |
EMM |
J1-A CONNECTOR |
| AJ |
EMM |
J1-B CONNECTOR |
| AK |
REAR |
OIL PUMP CONNECTOR |
| AL |
FUEL |
INJECTOR #2 CONNECTOR |
| AM |
BATTERY |
GROUND |
| AN |
IGNITION |
GROUND |
| AO |
IGNITION |
COIL #4 CONNECTOR |
| AP |
IGNITION |
COIL #2 CONNECTOR |
| AQ |
PORT |
TEMPERATURE SENSOR CONNECTOR |
| AR |
FUEL |
INJECTOR #6 CONNECTOR |
| AS |
IGNITION |
COIL #6 CONNECTOR |
| AT |
PORT |
KNOCK SENSOR |
| AU |
FUEL |
INJECTOR # 4 CONNECTOR |
| AV |
SEAL |
ASSEMBLY, Diagnostic connector |
| AW |
SEAL |
ASSEMBLY, SystemCheck connector |
| B |
KEY |
SWITCH CONNECTOR |
| C |
FUSE |
HOLDER AND SPARE |
| E |
OIL |
TANK CONNECTOR |
| F |
ISOLATOR |
B+ GROUND |
| G |
SYSTEM |
CHECK CONNECTOR |
| J |
ISOLATOR |
B+ |
| K |
TRIM |
SENDER CONNECTOR |
| L |
TRIM |
RELAY MODULE CONNECTOR |
| N |
STARBOARD |
TEMPERATURE SENSOR CONNECTOR |
| NS |
0777283 |
AMP CONNECTOR & SEAL KIT |
| NS |
3011345 |
ATTACHE, connecteur capteur de détonation |
| O |
FUEL |
INJECTOR #5 CONNECTOR |
| P |
IGNITION |
COIL #5 CONNECTOR |
| Q |
DIAGNOSTIC |
CONNECTOR |
| R |
FUEL |
INJECTOR #1 CONNECTOR |
| S |
IGNITION |
COIL #1 CONNECTOR |
| T |
FUEL |
INJECTOR #3 CONNECTOR |
| U |
IGNITION |
COIL #3 CONNECTOR |
| V |
STARBOARD |
KNOCK SENSOR |
| W |
THROTTLE |
POSITION SENSOR CONNECTOR |
| X |
FUEL |
PUMP CONNECTOR |
| Y |
FUEL |
FILTER SENSOR CONNECTOR |
| Z |
TILT |
LIMIT SWITCH CONNECTOR |
| 1 |
0587117 |
ENGINE HARNESS Assembly |
| 94 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 95 |
3011450 |
ATTACHE, connecteur |
