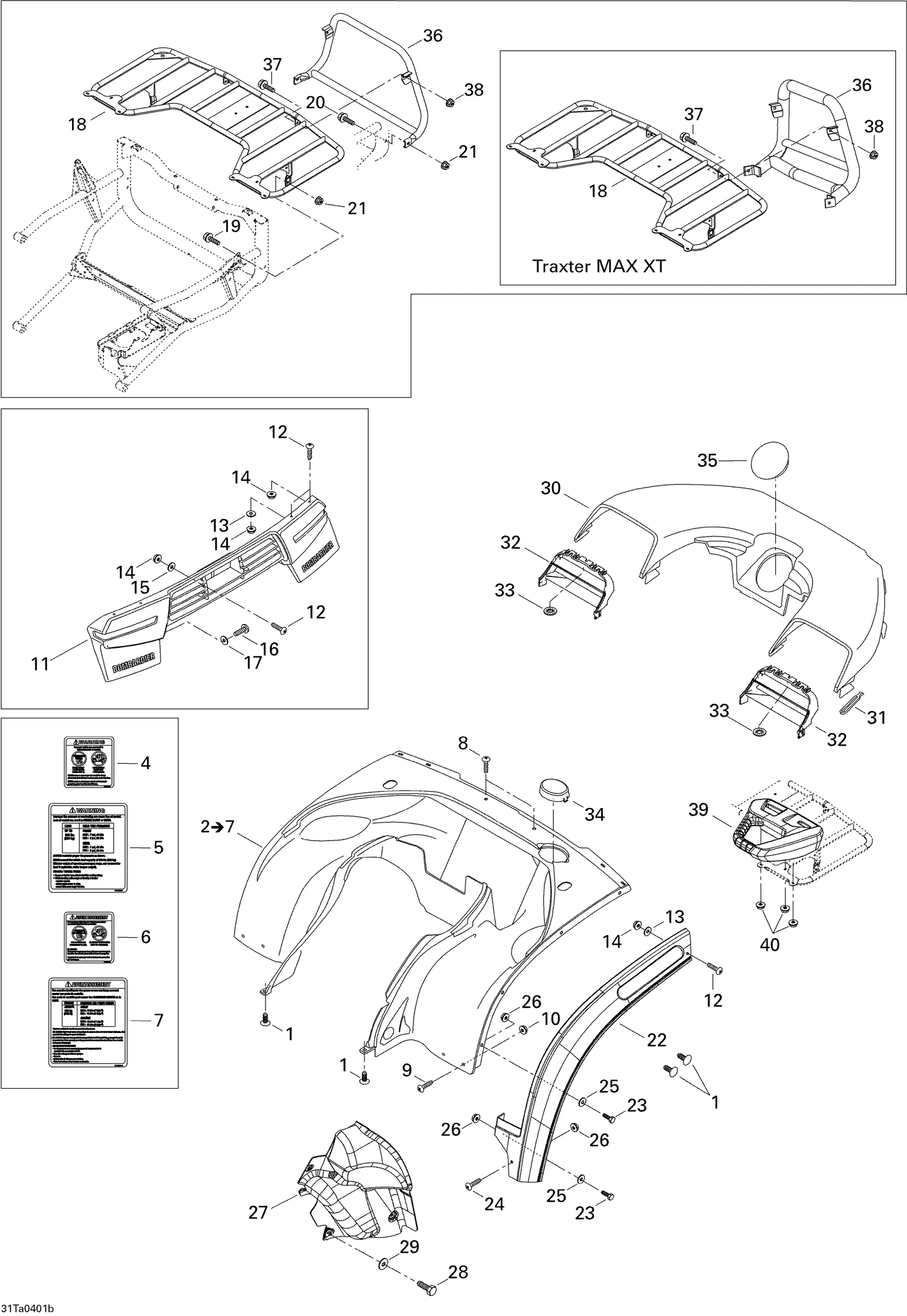

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Rear fender ass'y (Viper red) |
| 1 |
293730011 |
Black, Dart |
| 3 |
Not |
Available As Spare Part - Rear fender ass'y XT (Yellow) |
| 8 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 9 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
705000709 |
Rear Fascia, Slate Gray |
| 12 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 13 |
224060201 |
Flat Washer |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
224060201 |
Flat Washer |
| 16 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 17 |
224061121 |
Flat Washer |
| 18 |
705000874 |
Luggage Rack, Black |
| 19 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 20 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 21 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 22 |
705000701 |
LH rear mudguard |
| 23 |
207162044 |
Hex. Screw M6 X 20 |
| 24 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 25 |
224060201 |
Flat Washer |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
705000133 |
LH TANK PROTECTOR - Call your local BRP dealership |
| 28 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 29 |
224061201 |
Flat Washer |
| 30 |
705000179 |
Fender Cover, Yellow |
| 31 |
570023800 |
Windshield Latch |
| 32 |
705000180 |
LH Grill, Black |
| 33 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 34 |
705000132 |
COVER, BLACK - Call your local BRP dealership |
| 35 |
705000207 |
CAP - Call your local BRP dealership |
| 37 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 38 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 39 |
705000703 |
LH Handle |
| 705000134 |
Protecteur |
De Réservoir DR - Appelez votre concessionnaire BRP local 705000134 |
| 705000134 |
RH |
TANK PROTECTOR - Call your local BRP dealership 705000134 |
| 705000181 |
Louvre |
DR, Noir 705000181 |
| 705000181 |
RH |
Grill, Black 705000181 |
| 705000576 |
Fender |
Cover, Viper Red 705000576 |
| 705000704 |
Poignée |
DR 705000704 |
| 705000704 |
RH |
Handle 705000704 |
| 705000831 |
Fender |
Cover, Laurentian Green 705000831 |
