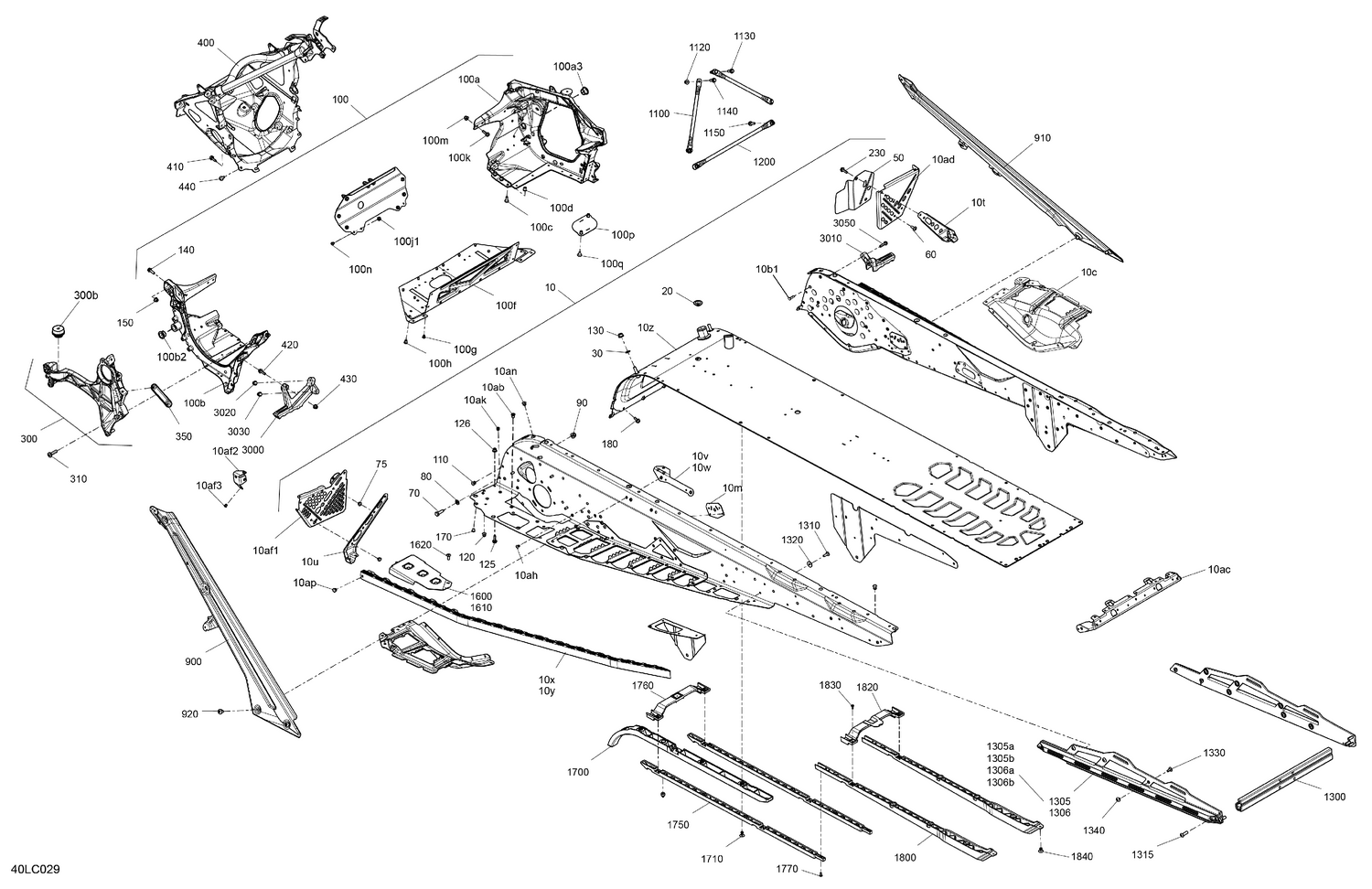

| Ref | Part Number | Description |
|---|
| 10ab |
605636003 |
Clinch Nut M6 Hexsert |
| 10ac |
518331532 |
Spacer |
| 10ad |
518332581 |
RH Footrest 400Mm |
| 10af1 |
518330550 |
LH Footrest 400mm |
| 10af2 |
518330998 |
LH Front Chassis Reinforcement |
| 10af3 |
390909200 |
Avex Rivet |
| 10ah |
390909100 |
Avex Rivet |
| 10ak |
390909200 |
Avex Rivet |
| 10an |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10ap |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10b1 |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518332805 |
RH Drive Axle Cover |
| 10m |
518330104 |
Front Arm Reinforcement |
| 10t |
518331253 |
Stirrup Reinforcement |
| 10u |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10v |
518331744 |
LH Under Chassis Reinforcement |
| 10w |
518331745 |
RH Under Chassis Reinforcement |
| 10x |
518330282 |
RH Roller |
| 10y |
518330281 |
LH Roller |
| 10z |
518334489 |
Radiator Tunnel 146 Ass'y |
| 20 |
293730052 |
Black, Plug |
| 30 |
250200146 |
Conical Spring Washer M8 |
| 50 |
518330928 |
Heat Shield |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 75 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505072690 |
Leg Bushing |
| 100b2 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332715 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j1 |
605636003 |
Clinch Nut M6 Hexsert |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
390909100 |
Avex Rivet |
| 100p |
518332276 |
Oil Plate |
| 100q |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 120 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 125 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 126 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 300b |
512061516 |
Vibration Damper |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518332098. |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 420 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 440 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 900 |
518334726 |
Platinum Silver, LH Diagonal Cross Member Ass'y |
| 910 |
518334727 |
Platinum Silver, RH Rear Diagonal Cross Member |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 1200 |
518329755 |
Center Column Support |
| 1300 |
518334045 |
Platinum Silver, Rear Extruded Bumper |
| 1305a |
518330509 |
LH Rear Bumper |
| 1305b |
293450275 |
Insert |
| 1306a |
518330510 |
RH Rear Bumper |
| 1306b |
293450275 |
Insert |
| 1310 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1315 |
250000757 |
Screw-Torx Button Head M8 X 25 S.Gr |
| 1320 |
224061201 |
Flat Washer |
| 1330 |
250000789 |
Torx Truss M6X14 |
| 1340 |
518329469 |
Barrel Nut |
| 1600 |
518330279 |
Black, LH Footrest |
| 1610 |
518330280 |
Black, RH Footrest |
| 1620 |
250000755 |
Torx Screw M6 X 16 |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1750 |
518329994 |
Rear Protector |
| 1760 |
518334162 |
Front Protective Structure |
| 1770 |
250001131 |
Torx Truss PT K40 x 12 |
| 1800 |
518329979 |
Rear Protector |
| 1820 |
518333936 |
Central Protective Structure |
| 1830 |
250001131 |
Torx Truss PT K40 x 12 |
| 1840 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3000 |
518329136 |
Black, Toe-Hold |
| 3010 |
518329138 |
Black, Toe-Hold |
| 3020 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 3030 |
233261466 |
Hex. Flanged Elastic Nut M6 |
