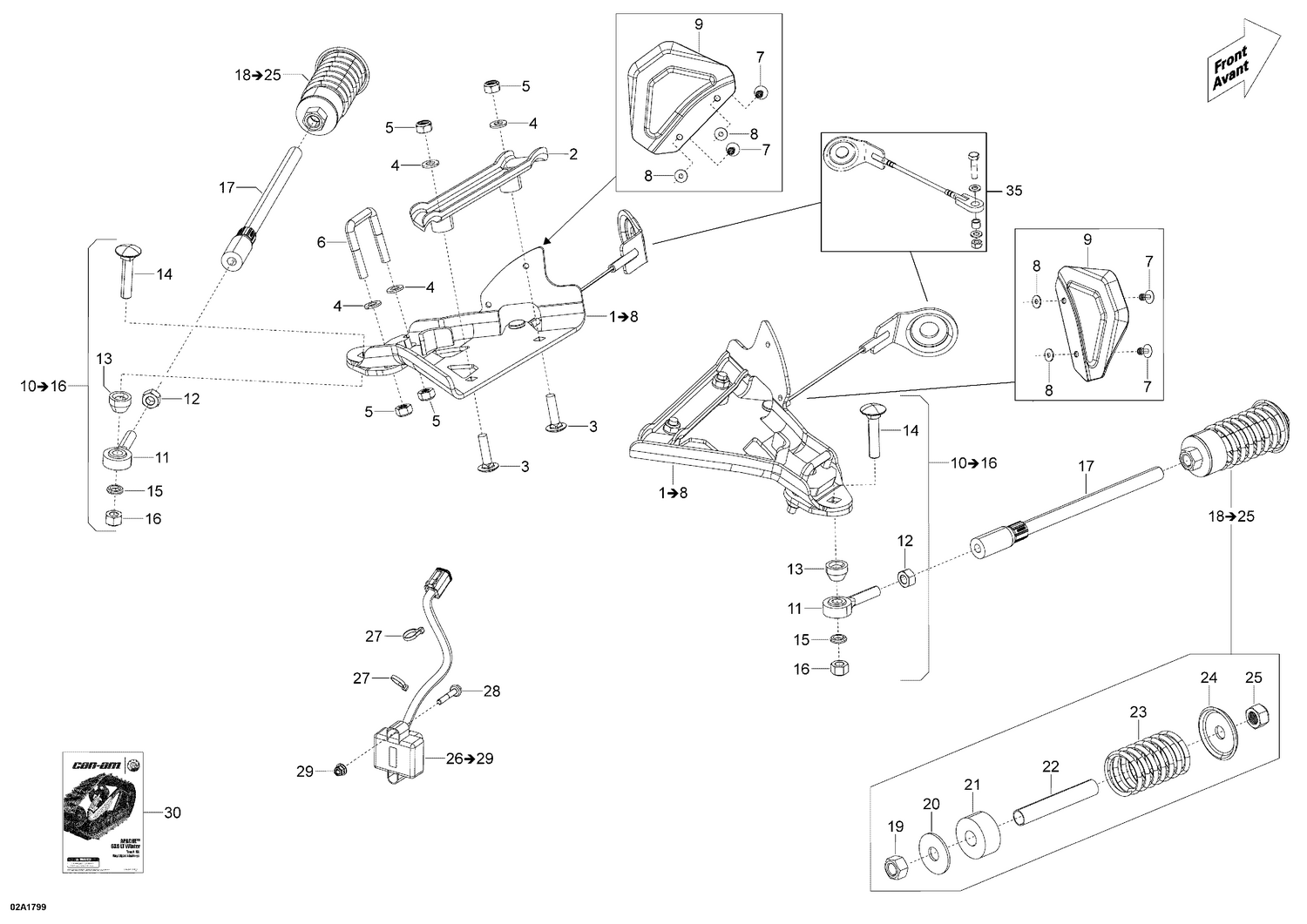

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Plate |
| 3 |
Not |
Available As Spare Part - Carriage Bolt M10 x 40 |
| 4 |
Not |
Available As Spare Part - Flat Washer |
| 5 |
Not |
Available As Spare Part - Elastic Hex. Nut M10 |
| 6 |
Not |
Available As Spare Part - Square U-Bolt M10 |
| 7 |
Not |
Available As Spare Part - Pop Rivet 3/16" |
| 8 |
Not |
Available As Spare Part - Washer |
| 9 |
706201185 |
LH PROTECTOR - Call your local BRP dealership |
| 9 |
706201186 |
RH PROTECTOR - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Rod End |
| 12 |
Not |
Available As Spare Part - Hex. Nut M12 |
| 13 |
Not |
Available As Spare Part - Long Spacer |
| 14 |
Not |
Available As Spare Part - Carriage Bolt M12 x 70 |
| 15 |
Not |
Available As Spare Part - Short Spacer |
| 16 |
Not |
Available As Spare Part - Elastic Hex. Nut M12 |
| 17 |
705401214 |
Front Anti-Rotation |
| 19 |
Not |
Available As Spare Part - Hex. Nut M16 |
| 20 |
Not |
Available As Spare Part - Flat Washer |
| 21 |
Not |
Available As Spare Part - Rubber Bumper |
| 22 |
Not |
Available As Spare Part - Spacer |
| 23 |
Not |
Available As Spare Part - Spring |
| 24 |
Not |
Available As Spare Part - Formed Washer |
| 25 |
Not |
Available As Spare Part - Elastic Hex. Nut M16 |
| 27 |
293750002 |
Tie Wrap 142 mm |
| 28 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
