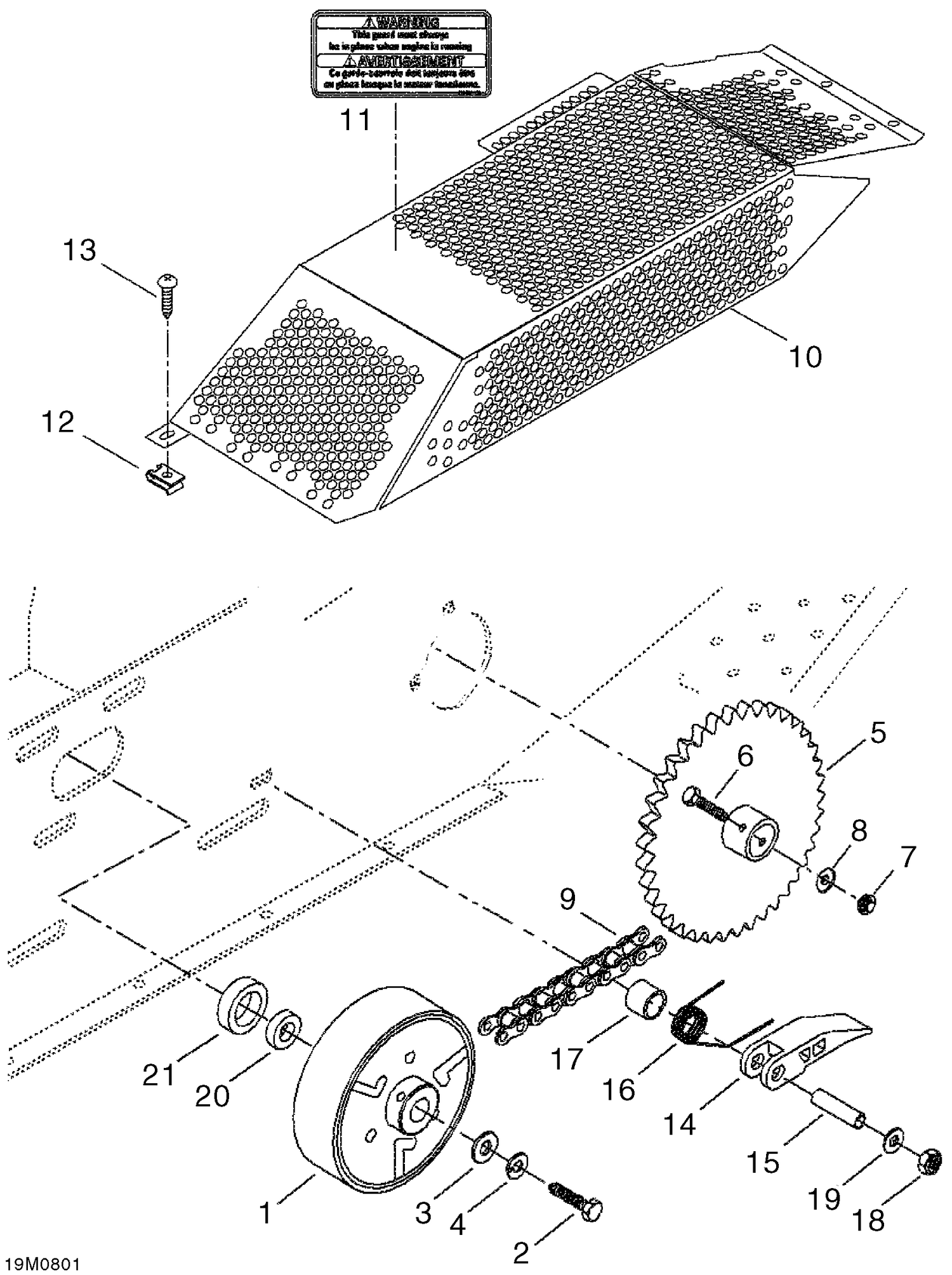

| Ref | Part Number | Description |
|---|
| 1 |
415129554 |
DRIVE PULLEY ASSY - Call your local BRP dealership This part replaces 417217200. |
| 2 |
309808900 |
Hex. Screw 5/16-24 |
| 3 |
234082410 |
Flat Washer 8 mm |
| 4 |
234181401 |
Lock Washer 8 mm |
| 5 |
504149500 |
Sprocket (48 Tooth-Large) |
| 6 |
417126304 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
234081410 |
Flat Washer 8 mm |
| 9 |
412107500 |
CHAIN - Call your local BRP dealership |
| 10 |
417300224 |
CHAIN GUARD - Call your local BRP dealership |
| 11 |
516000131 |
Warning Decal (Pulley Guard) |
| 12 |
417300005 |
SPRING NUT U #10-24 - Call your local BRP dealership |
| 13 |
417300006 |
Tapping Screw M4.8 X 16 |
| 14 |
572041600 |
CHAIN TENSIONER - Call your local BRP dealership |
| 15 |
504051600 |
Spacer |
| 16 |
415123000 |
SPRING - Call your local BRP dealership |
| 17 |
504018200 |
SPACER - Call your local BRP dealership |
| 18 |
232561414 |
Elastic Stop Nut M6 |
| 19 |
224061121 |
Flat Washer |
| 20 |
504150500 |
EXTENSION - Call your local BRP dealership |
