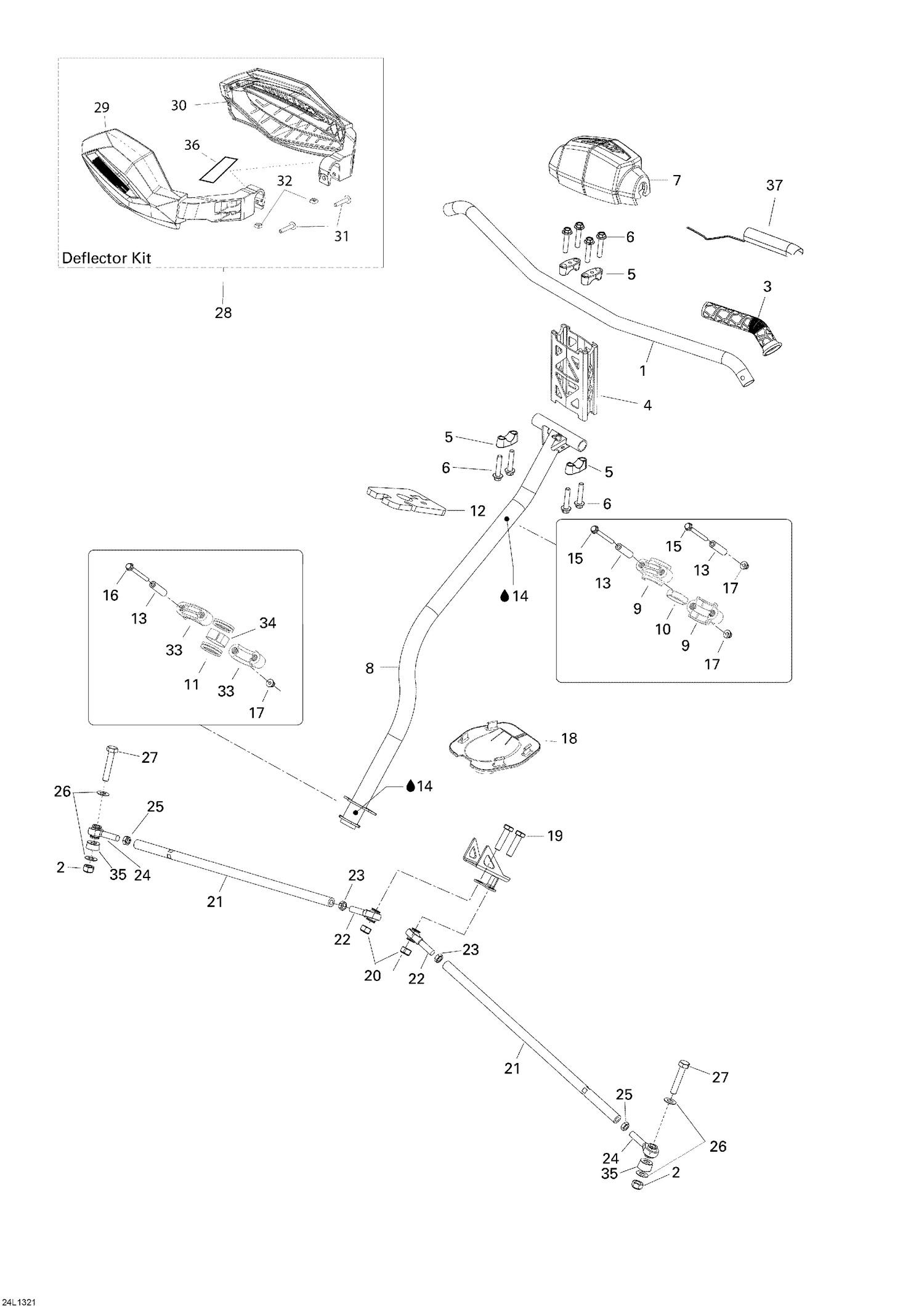

| Ref | Part Number | Description |
|---|
| 1 |
506152087 |
BLACK HANDLE BAR - Call your local BRP dealership |
| 2 |
232500416 |
Elastic Stop Nut M10 |
| 3 |
506152483 |
Grip |
| 4 |
506151753 |
Extension 115 mm. |
| 4 |
506152457 |
Extension 130 mm. |
| 5 |
506152751 |
Steering Support This part replaces 506152395. |
| 6 |
250000285 |
Hex Flanged Screw M8 x 40 |
| 7 |
506152265 |
Steering Pad |
| 8 |
506152962 |
Steering Column This part replaces 506152584. |
| 9 |
506152293 |
Upper Half-Housing |
| 10 |
Not |
Available As Spare Part - VIBRAT. GASKET upper |
| 11 |
Not |
Available As Spare Part - VIBRAT. GASKET lower |
| 12 |
506152476 |
Cushion |
| 13 |
506152297 |
Housing Bushing |
| 14 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 15 |
207667056 |
Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 16 |
207667056 |
Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 17 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 18 |
506152163 |
Plate |
| 19 |
207004044 |
Hex. Screw M10 X 40 |
| 20 |
232500416 |
Elastic Stop Nut M10 |
| 21 |
506152618 |
Tie rod, painted |
| 22 |
506152081 |
Ball Joint |
| 23 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 24 |
506152019 |
Ball Joint |
| 25 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 26 |
506152194 |
Washer |
| 27 |
207005544 |
Hex Screw M10 X 55 |
| 28 |
517305053 |
Deflector pack |
| 29 |
Not |
Available As Spare Part - RH deflector |
| 30 |
Not |
Available As Spare Part - LH deflector |
| 31 |
250000501 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 32 |
250000498 |
SQUARE NUT M6 - Call your local BRP dealership |
| 33 |
506152549 |
LOWER HALF-HOUSING - Call your local BRP dealership |
| 34 |
Not |
Available As Spare Part - Retain Ring |
| 35 |
503192496 |
Washer |
| 36 |
Not |
Available As Spare Part - Friction tape |
