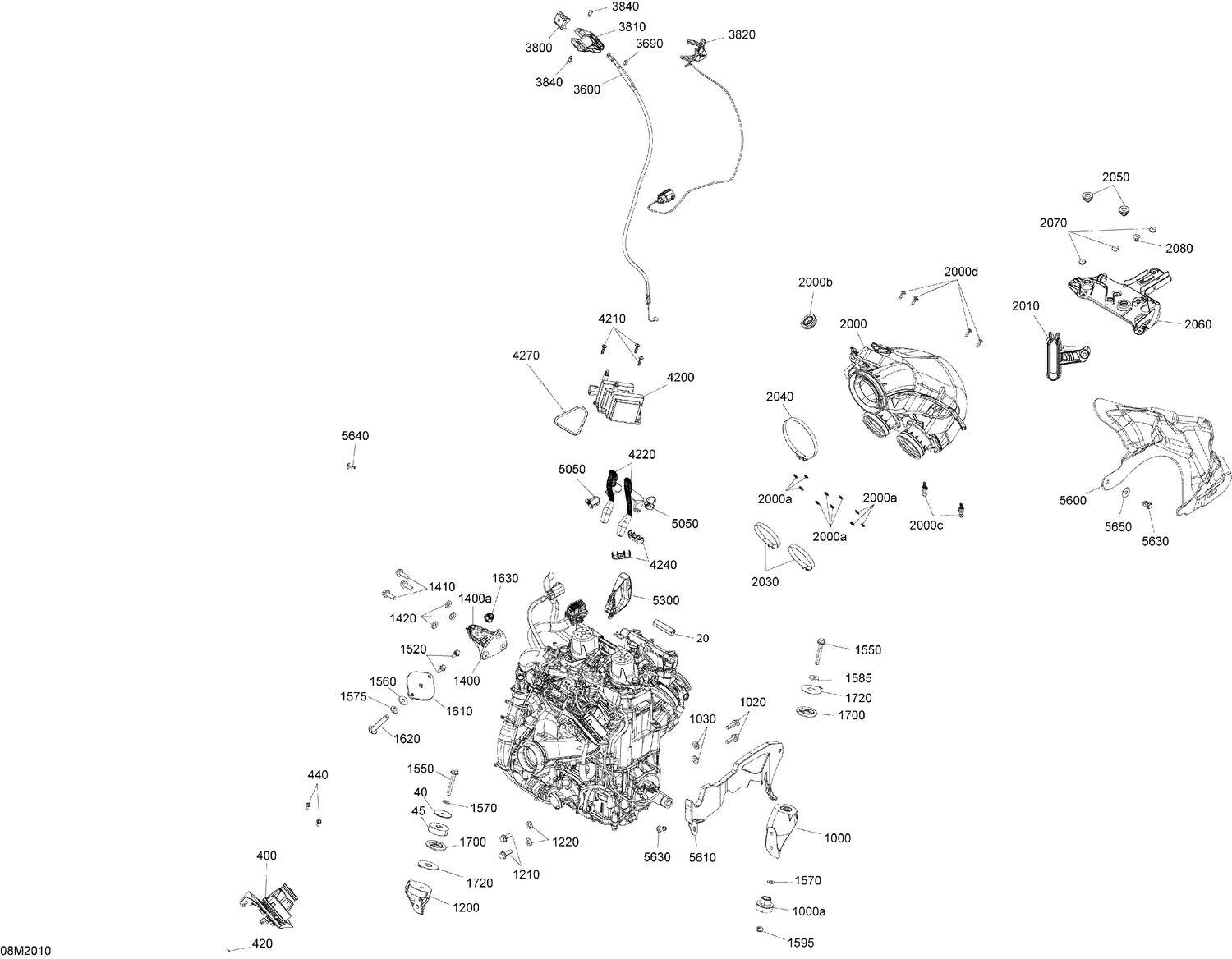

01- Engine - System
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 515178492 | Braided Sleeve 60MM Long |
| 40 | 512061333 | Washer |
| 45 | 512061334 | PTO Limiter |
| 400 | 420889432 | Servo Motor Ass'y This part replaces 420889431. |
| 420 | 293370122 | Circlip |
| 440 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1000a | 512061516 | Vibration Damper This part replaces 512060295. |
| 1020 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061025 | Front PTO Support |
| 1210 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1400a | 512061516 | Vibration Damper This part replaces 512060295. |
| 1410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1520 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 506151245 | Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1575 | 250200146 | Conical Spring Washer M8 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1610 | 512061347 | Shim |
| 1620 | 250000761 | Torx Truss Screw M8 X 50 |
| 1630 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1700 | 512061137 | Engine Stopper |
| 1720 | 512061354 | Spacer |
| 2000a | 732610072 | Push Nut |
| 2000b | 512061083 | Rubber |
| 2000c | 420441840 | Screw |
| 2010 | 512061325 | Cable Guide |
| 2030 | 293650212 | GEMI Clamp |
| 2040 | 293650247 | Gemi Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061274 | Airbox Support |
| 2070 | 293150103 | Pop Rivet 3/16" |
| 2080 | 293150104 | Pop Rivet 3/16" |
| 3600 | 512061326 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800 | 512060859 | Upper Housing |
| 3810 | 512060860 | Lower Housing |
| 3820 | 512061266 | Throttle Ass'y |
| 3840 | 732601143 | Flange Screw |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 4220 | 512061166 | Ignition Cable |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 4270 | 293300059 | O-Ring |
| 5050 | 512060993 | Clamp |
| 5600 | 512061305 | LH Acoustic Cover |
| 5610 | 512061215 | LH Acoustic Cover |
| 5630 | 293150230 | Tuflok Plastic Rivet |
| 5640 | 250000725 | Screw M4 X 16 |
