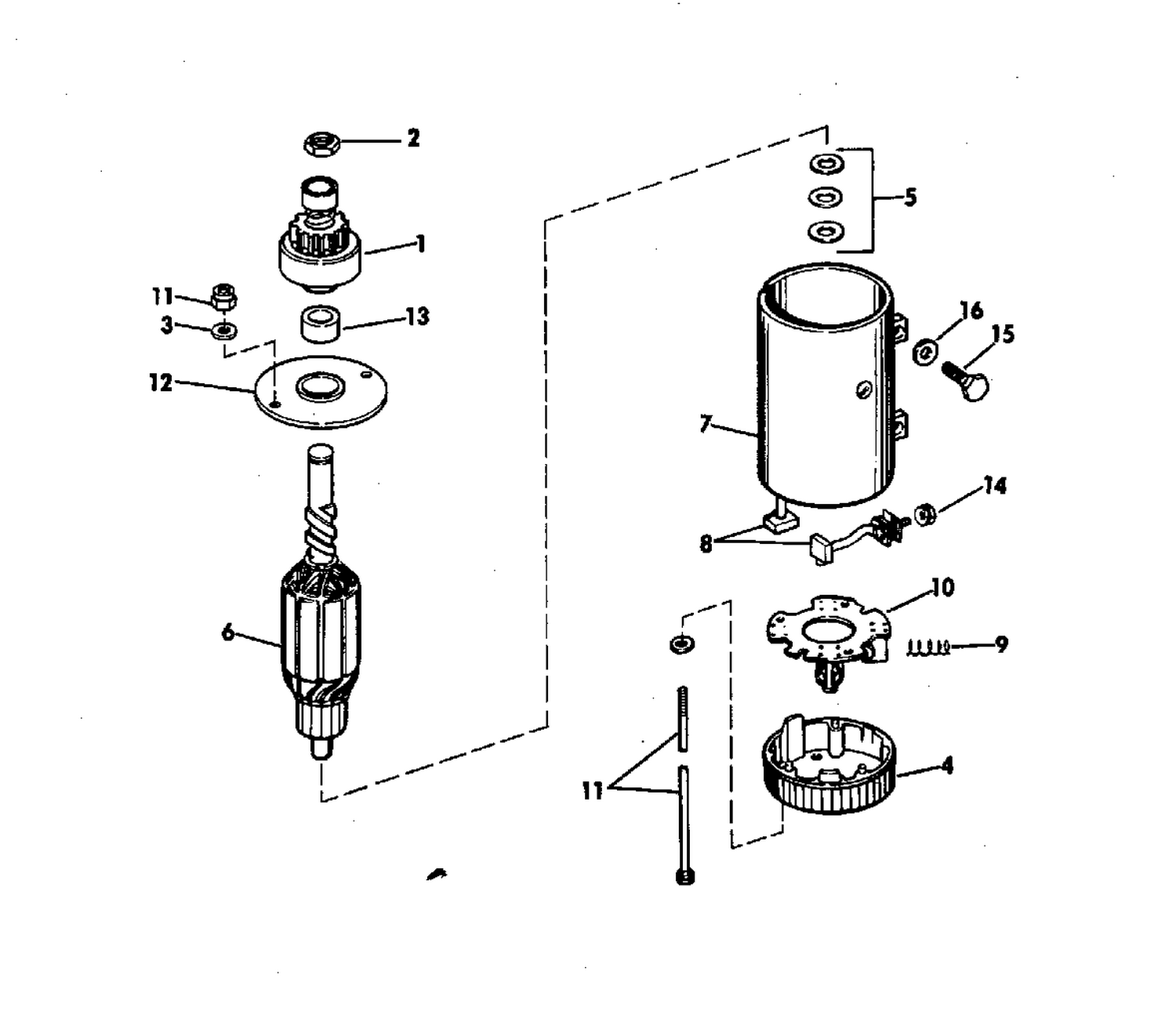

ELECTRIC STARTER GROUP
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0315377 | DRIVE ASSEMBLY |
| 3 | 0329241 | RONDELLE This part replaces 0306482. |
| 4 | 0379966 | HEAD ASSEMBLY, Commutator end |
| 5 | 0384306 | THRUSH WASHER PKG. |
| 6 | 0315376 | ARMATURE |
| 7 | 0382963 | FRAME & FIELD ASSEMBLY, Complete |
| 9 | 0383142 | SPRING SET |
| 10 | 0384502 | BRUSH |
| 12 | 0385059 | HEAD ASSY, Drive end This part replaces 0383842. |
| 15 | 0302479 | VIS, démarreur vers bloc cylindres-carter |
| 15 | 0306501 | BOLT, Water pump |
| 0383575 | 0383575 | STARTER MOTOR ASSEMBLY |
