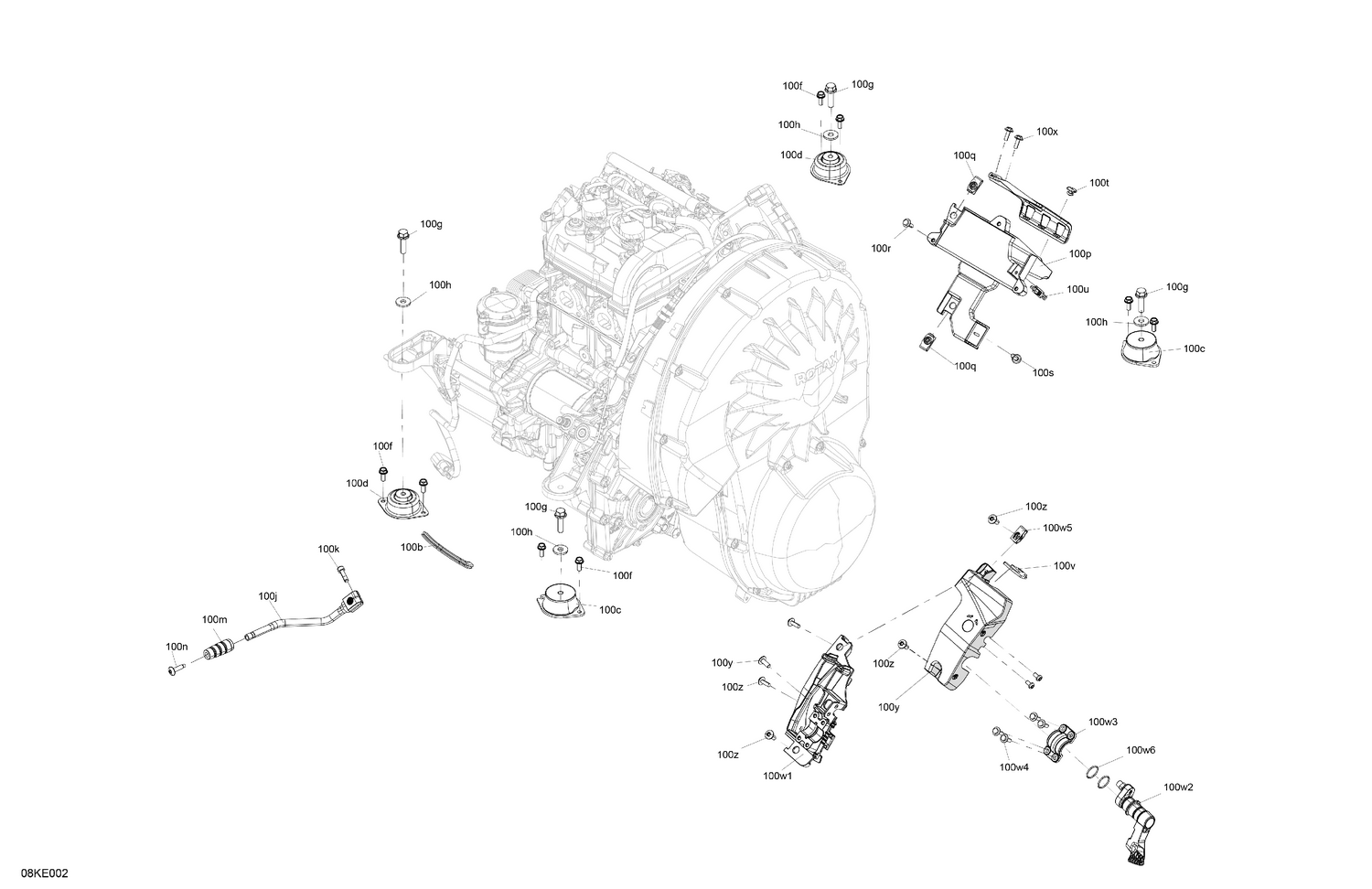

02- Engine - System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 100b | 219704354 | Trim 1000Mm Long |
| 100c | 512061508 | Vibration Damper |
| 100d | 512061507 | Vibration Damper |
| 100f | 210261650 | Hex. Flange Screw M6 X 16 |
| 100g | 207583054 | Hex. Flange Screw S.GRIP M8 X 30 |
| 100h | 279000336 | Flat Washer |
| 100j | 707002045 | Shift Lever |
| 100k | 250001077 | Socket Head Screw Scotch Grip M6 X 20 |
| 100m | 707003509 | Shift Lever Tip |
| 100n | 250000728 | Torx Screw M6 X 25 |
| 100p | 707002214 | Support Module |
| 100q | 250100198 | Panel Nut M6 X 1.0 |
| 100r | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 100s | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 100t | 390406500 | Pop Rivet 3/16" |
| 100u | 515179692 | Connector Support |
| 100v | 707002273 | Bracket |
| 100w1 | 707002218 | Support Parking Brake |
| 100w2 | 707002827 | Parking Brake Lever |
| 100w3 | 707002240 | Clamp |
| 100w4 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 100w5 | 250100198 | Panel Nut M6 X 1.0 |
| 100w6 | 293300079 | O-Ring |
| 100x | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 100y | 707002239 | Cover |
