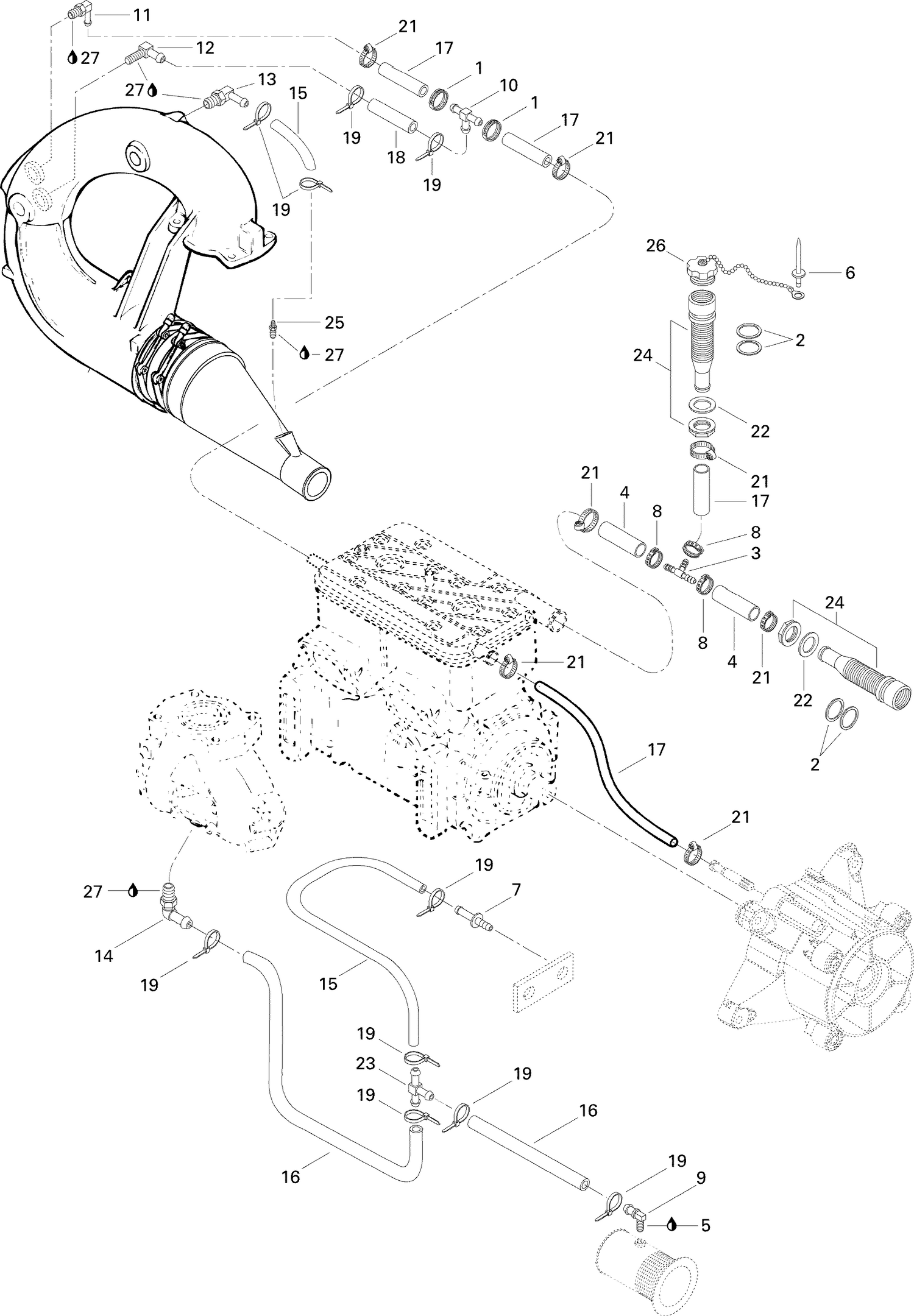

01- Cooling System SPEEDSTER
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293650012 | Oetiker Clamp |
| 2 | 293250028 | GASKET - Call your local BRP dealership |
| 3 | 293710053 | T-FITTING - Call your local BRP dealership |
| 4 | 219704394 | Was 276000001 Hose 12.5 mm |
| 5 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 6 | 293150023 | RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 7 | 291000306 | BLEED FITTING - Call your local BRP dealership |
| 8 | 293650018 | Caillau Clic Clamp |
| 9 | 293700016 | Elbow Fitting |
| 10 | 293710052 | T-FITTING - Call your local BRP dealership |
| 11 | 293700023 | Elbow Fitting 90° |
| 12 | 293710048 | Elbow Fitting 90° |
| 13 | 293710018 | Elbow Fitting 90° |
| 14 | 293700016 | Elbow Fitting |
| 15 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 16 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 17 | 219704394 | Was 276000001 Hose 12.5 mm |
| 18 | 219704360 | Hose 6 Mm 15000Mm Long |
| 19 | 293750001 | Tie Wrap 94 mm |
| 20 | XXX | Not Available As Spare Parts |
| 21 | 293650172 | Tridon Gear Clamp This part replaces 293650037. |
| 22 | 293050003 | WASHER - Call your local BRP dealership |
| 24 | 293710063 | Fitting |
| 25 | 293710037 | Male Connector |
| 26 | 293000055 | PLUG - Call your local BRP dealership |
