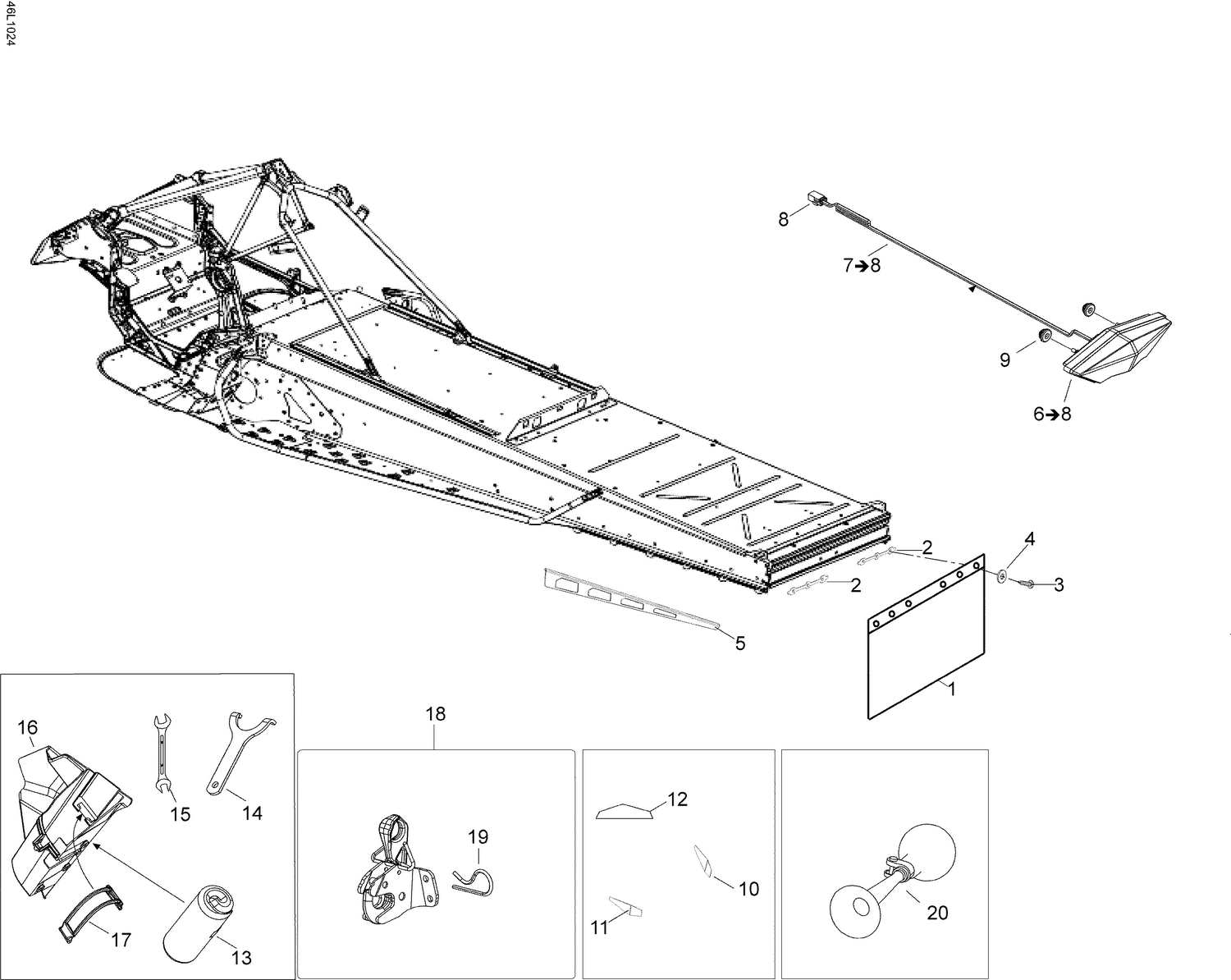

09- Utilities
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000857 | SNOW GUARD - Call your local BRP dealership |
| 2 | 520000847 | THREADED PLATE - Call your local BRP dealership |
| 3 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 520000692 | Rear light |
| 7 | 520000849 | Wiring Harness |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 40611 | Screw Plastofast |
| 10 | 520001600 | Yellow RH Reflector This part replaces 520000843. |
| 11 | 520001601 | Yellow LH Reflector This part replaces 520000844. |
| 12 | 705002423 | Reflector Amber |
| 13 | 529000065 | Tool Kit This part replaces 529000050. |
| 14 | 529035582 | ADJUSTMENT WRENCH - Call your local BRP dealership |
| 15 | 34017 | Wrench |
| 16 | 520000720 | TOOL KIT RACK - Call your local BRP dealership |
| 17 | 520000528 | Fastening rubber |
| 18 | 520001774 | Hitch Ass'y This part replaces 520000796. |
| 19 | 41029 | Needle Pin |
