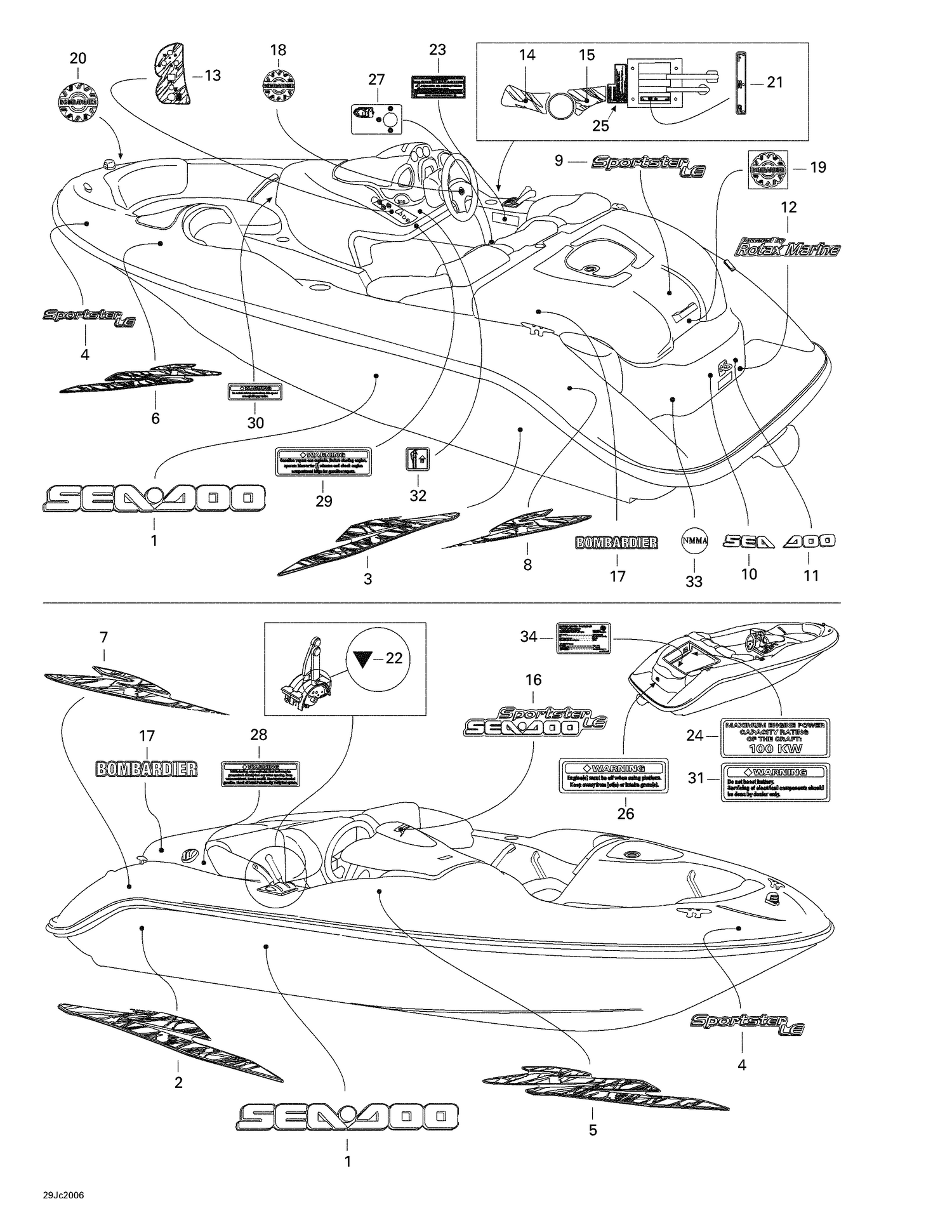

09- Decals
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204900700 | Logo "Sea-Doo" (Hull) |
| 2 | 204900709 | Decal - RH Hull |
| 3 | 204900707 | Decal - LH Hull |
| 4 | 204900703 | Logo "Sportster" |
| 5 | 209900704 | Decal - RH Front Side |
| 6 | 204900705 | Decal - LH Front Side |
| 7 | 204900708 | Decal - RH Deck |
| 8 | 204900706 | Decal - LH Deck |
| 9 | 204900697 | Logo - Engine Cover |
| 10 | 204900701 | Decal "Sea" |
| 11 | 204900702 | Decal "Doo" |
| 12 | 204900694 | Decal "Rotax" |
| 13 | 204900710 | Decal - Controls |
| 14 | 204900695 | Decal - Trim Cup (type A) |
| 15 | 204900696 | Decal - Trim Cup (type B) |
| 16 | 204900698 | Decal - Windscreen |
| 18 | 516008738 | BRP Logo 48mm This part replaces 516000282. |
| 19 | 204900692 | Logo "Bombardier" |
| 20 | 204900435 | Bombardier Logo |
| 21 | 204900136 | DECAL, SHIFTER - Call your local BRP dealership |
| 22 | 204900138 | POINTER, SHIFTER - Call your local BRP dealership |
| 23 | 204900265 | Label - Warning (CE) |
| 24 | 204900716 | Power Capacity Decal |
| 25 | 204900424 | Label - Warning (Navigation) |
| 26 | 204900226 | Warning Label |
| 27 | 219900504 | Decal - Valve Fuel |
| 28 | 204900224 | Label <<Fuel>> |
| 29 | 204900162 | Label - Warning, Gas Blower |
| 30 | 204900229 | Warning Label |
| 31 | 204900225 | Battery Warning Decal |
| 32 | 204900359 | Extinguisher Decal |
| 33 | 204900464 | NMMA Certification Decal |
