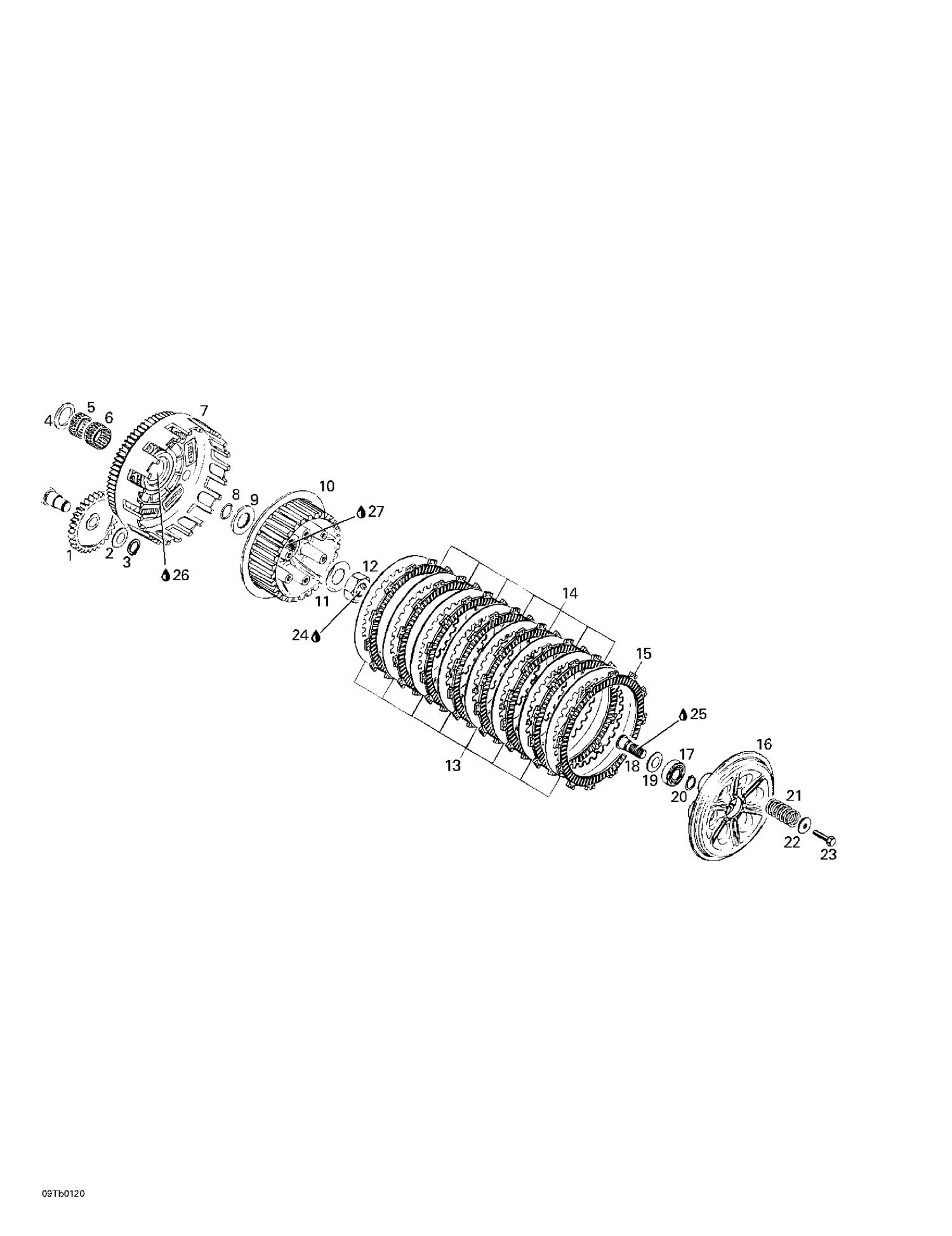

05- Clutch
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711235272 | Oil Pump Gear |
| 2 | 711227401 | Thrust Washer |
| 3 | 711945650 | Retaining Ring |
| 4 | 711427460 | Thrust Washer |
| 5 | 420932930 | Needle Bearing This part replaces 711932930. |
| 6 | 711232890 | Needle Bearing |
| 7 | 711296365 | Primary Drive Ass'y |
| 8 | 420250890 | O-Ring This part replaces 290250890. |
| 9 | 711244950 | Thrust Washer |
| 10 | 711259117 | Clutch Hub |
| 11 | 711245325 | Tab Washer |
| 12 | 711242607 | Nut M18 |
| 13 | 420259262 | Plate 1,5 mm This part replaces 711259262. |
| 14 | 420259210 | Friction Plate 3,5 mm This part replaces 711259210. |
| 15 | 420259215 | FRICTION PLATE 3,5 MM - Call your local BRP dealership This part replaces 711259215. |
| 16 | 711259122 | Pressure Plate |
| 17 | 711232262 | Ball Bearing 6002 |
| 18 | 711259202 | Rack-Actuation Clutch |
| 19 | 711227401 | Thrust Washer |
| 20 | 711945650 | Retaining Ring |
| 21 | 420239162 | CLUTCH SPRING - Call your local BRP dealership This part replaces 711239162. |
| 22 | 711244020 | Washer |
| 23 | 207162544 | Hex. Screw M6 X 25 |
| 24 | 293800060 | Loctite 243, 10 ml |
| 25 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 26 | Not | Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
