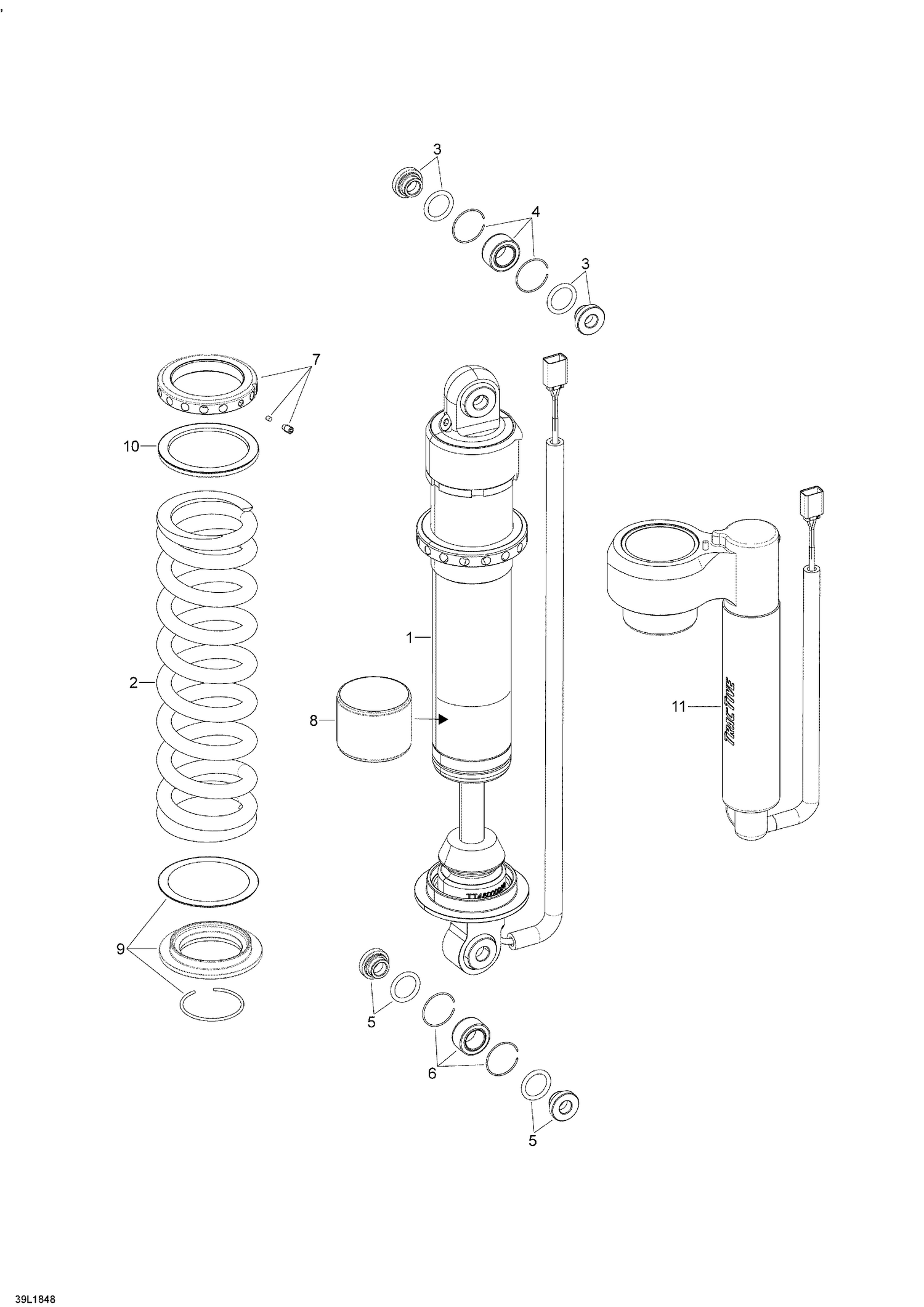

08- Rear Shocks Commander GT
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Rear Shock |
| 2 | 619300178 | Spring |
| 3 | 619300183 | Bearing Bushing, Upper |
| 4 | 619300186 | Bearing Upper Ass'y |
| 5 | 619300183 | Bearing Bushing, Upper |
| 6 | 619300187 | Bearing Set, Lower |
| 7 | 619300188 | Spring Retainer Screw Set |
| 8 | 619300189 | Rubber Protection Sleeve |
| 9 | 619300190 | Spring Retainer Set, Lower |
| 10 | 619300191 | Retainer Spacer, Spring |
