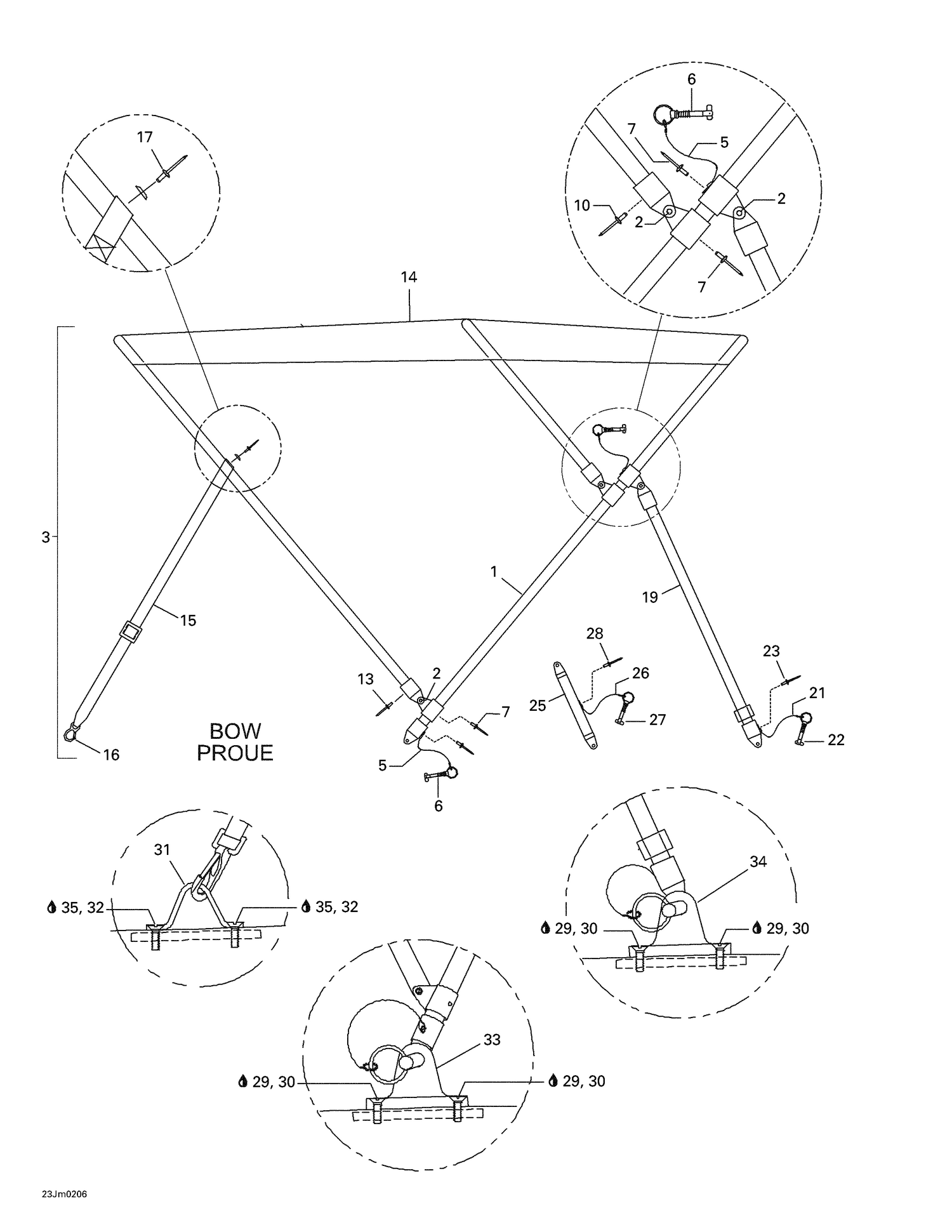

09- Bimini Top
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204100066 | SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership |
| 3 | 204071443 | Bimini Top |
| 4 | Not | Available As Spare Part - External Fitting |
| 6 | 204070960 | Retaining Pin |
| 7 | 293150039 | Pop Rivet 3/16" |
| 9 | Not | Available As Spare Part - External Fitting |
| 10 | 293150039 | Pop Rivet 3/16" |
| 12 | Not | Available As Spare Part - External Fitting |
| 13 | 293150039 | Pop Rivet 3/16" |
| 14 | 204071444 | Bimini Canvas |
| 16 | 204071007 | Hook Snap |
| 17 | 293150039 | Pop Rivet 3/16" |
| 18 | Not | Available As Spare Part - Countersunk Washer |
| 20 | Not | Available As Spare Part - External Fitting |
| 21 | 204071012 | Retaining Cable |
| 22 | 204070960 | Retaining Pin |
| 23 | 293150039 | Pop Rivet 3/16" |
| 24 | 204071009 | Bimini Cover (Not Shown) |
| 26 | 204071012 | Retaining Cable |
| 27 | 204070960 | Retaining Pin |
| 28 | 293150039 | Pop Rivet 3/16" |
| 29 | 293800060 | Loctite 243, 10 ml |
| 30 | 208453060 | PHILLIPS SCREW M5 X 30 - Call your local BRP dealership |
| 31 | 204070234 | Strap Tie |
| 32 | 208443060 | Phillips Screw M4 X 30 |
| 33 | 204070910 | BIMINI BRACKET - Call your local BRP dealership |
| 34 | 204071011 | BIMINI BRACKET - Call your local BRP dealership |
| 204071112 | Brace | Ass’y, Starbord 204071112 |
