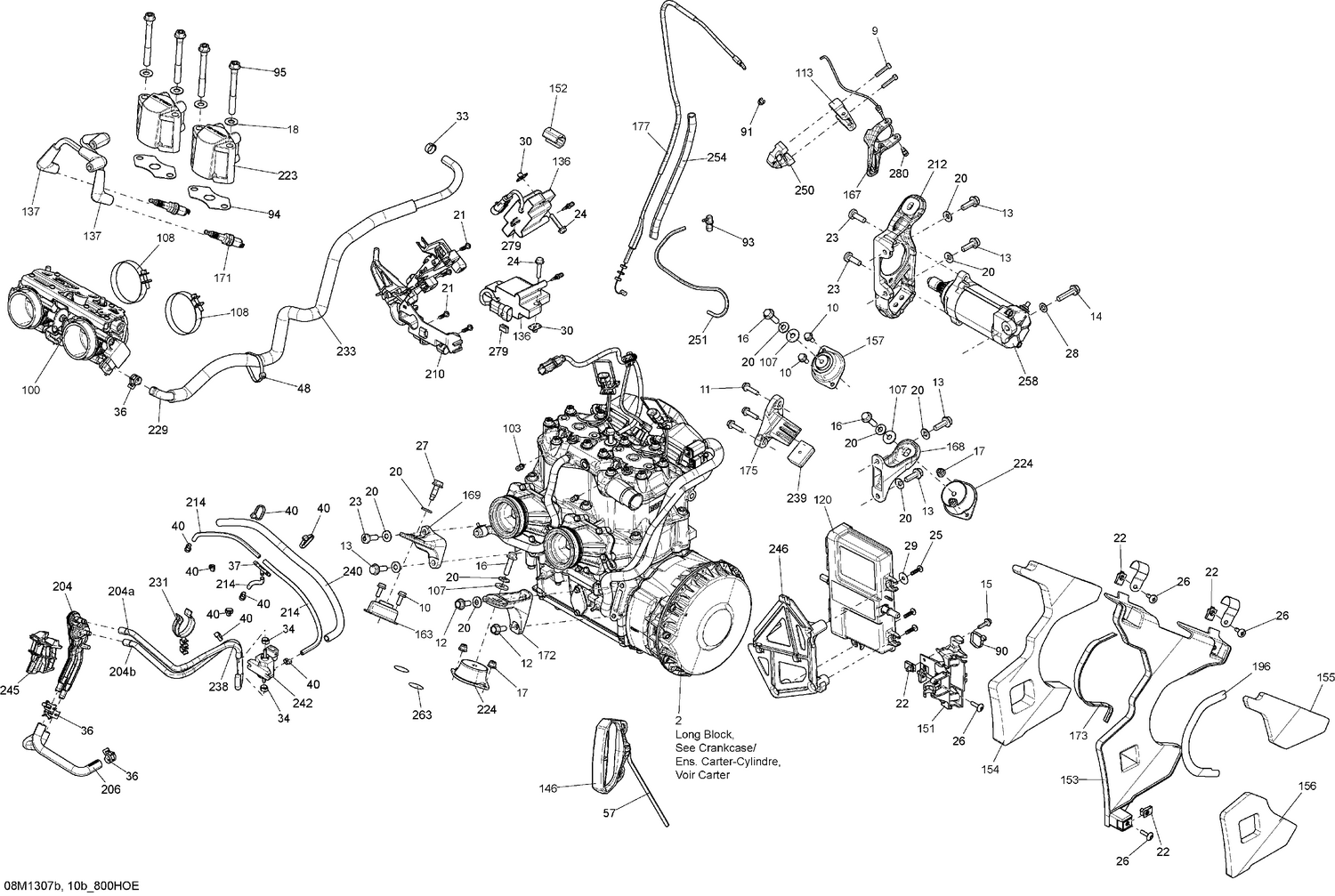

| Ref | Part Number | Description |
|---|
| 10 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 11 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 12 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 13 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 15 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 16 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
234001410 |
Flat Washer 10 mm |
| 20 |
250200146 |
Conical Spring Washer M8 |
| 21 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 22 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 23 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 24 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 25 |
250000297 |
Truss Head Torx Screw K50 X 20 |
| 26 |
250000528 |
Torx Screw M5 X 20 |
| 27 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570. |
| 29 |
250200040 |
Flat Washer |
| 30 |
293100003 |
Nut Welded, M6 |
| 33 |
293650046 |
Oetiker Clamp |
| 34 |
293650043 |
Oetiker Gear Clamp |
| 36 |
293650214 |
Norma Spring Clamp |
| 37 |
293710068 |
T-Fitting |
| 40 |
293750001 |
Tie Wrap 94 mm |
| 48 |
293750008 |
Tie Wrap 368 mm |
| 90 |
414115200 |
Tie-Rap 180 mm |
| 91 |
414274500 |
Circlip |
| 93 |
414814100 |
Male Connector |
| 94 |
420430930 |
Gasket |
| 95 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 |
| 103 |
420924724 |
Hose Nipple |
| 107 |
503183200 |
Yellow, Washer |
| 136 |
512060953 |
Ignition Coil This part replaces 512060810. |
| 137 |
512061126 |
Ignition Cable, 177mm long This part replaces 512060094. |
| 151 |
512060298 |
Solenoid Support |
| 152 |
512060313 |
Protector |
| 154 |
512060343 |
Interior Noise Foam |
| 155 |
512060344 |
Upper Exterior Noise Foam |
| 157 |
512061507 |
Vibration Damper This part replaces 512060387. |
| 163 |
512060448 |
Rubber Mount |
| 168 |
512060469 |
Front Support, MAG |
| 169 |
512060478 |
Rear Support, PTO |
| 172 |
512060559 |
Rear Support, MAG |
| 173 |
512060574 |
Heat Shield |
| 175 |
512060576 |
Stopper Support |
| 204 |
512060692 |
Manifold |
| 204a |
512060814 |
SPRING - Call your local BRP dealership |
| 204b |
512060807 |
SPRING - Call your local BRP dealership |
| 206 |
512060694 |
RH Formed Hose |
| 206 |
512060695 |
LH Formed Hose |
| 210 |
512060888 |
Ignition Coils Support This part replaces 512060696. |
| 214 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 224 |
512060729 |
Rubber Mount |
| 231 |
512060762 |
HOSE SUPPORT - Call your local BRP dealership |
| 233 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 238 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 240 |
219704407 |
Tubing 10 MM 1000MM Long |
| 242 |
270600005 |
Solenoid Valve This part replaces 512060774. |
| 246 |
512060858 |
Calibrated Module Support |
| 251 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 263 |
518325560 |
Adhesive Patch |
| 279 |
710000992 |
Clip |
