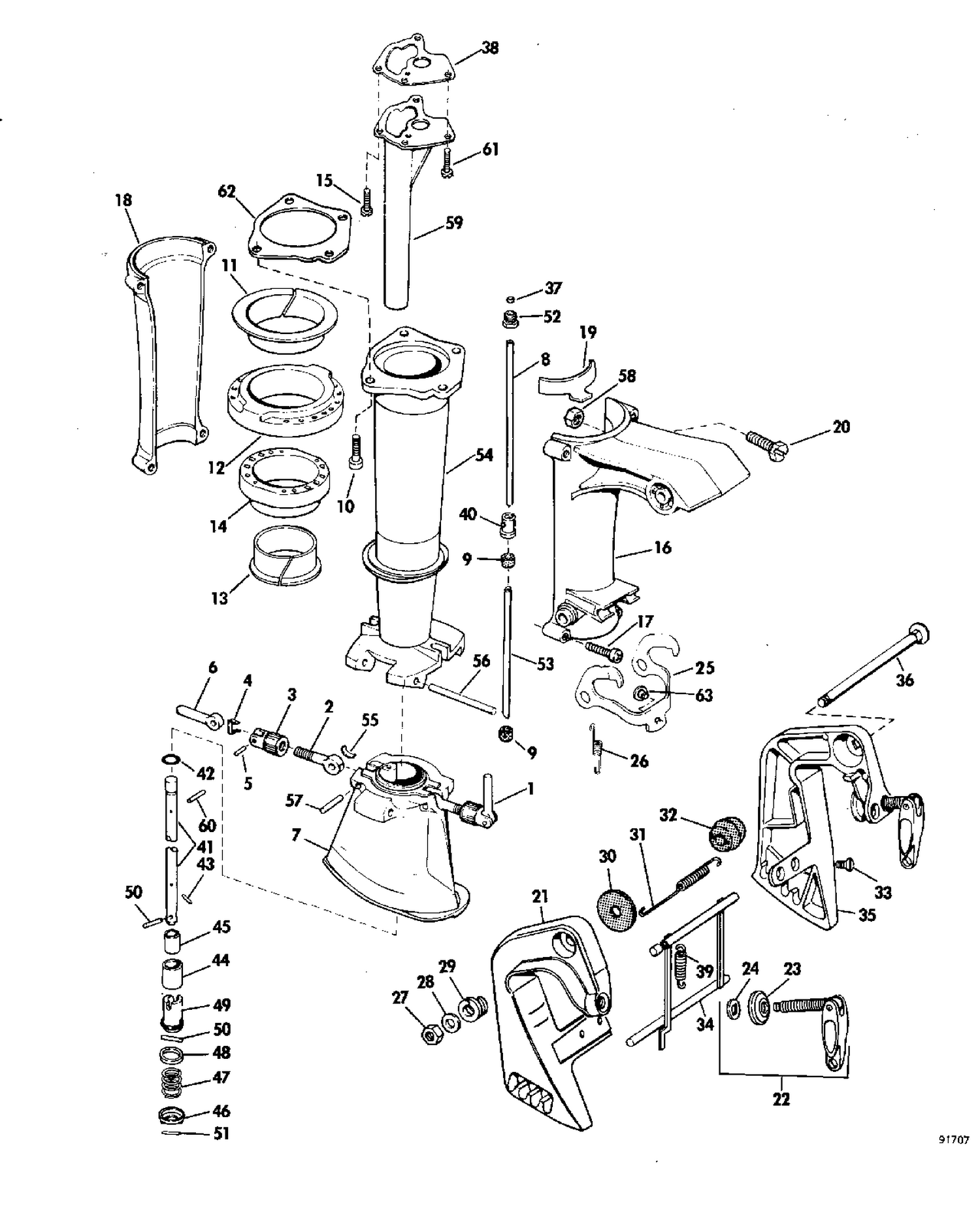

| Ref | Part Number | Description |
|---|
| 1 |
0278844 |
CLAMP SCREW ASSEMBLY |
| 2 |
0205688 |
CLAMP SCREW |
| 3 |
0205689 |
NUT |
| 4 |
0205692 |
SPRING |
| 5 |
0205691 |
PIN |
| 6 |
0205898 |
HANDLE |
| 7 |
0205681 |
HOUSING, Exhaust lower |
| 8 |
0315122 |
WATER TUBE, Standard |
| 9 |
0317372 |
GROMMET, Wate tube, lower This part replaces 0203131. |
| 10 |
0308707 |
SCREW |
| 11 |
0314866 |
PICOT BEARING, Upper |
| 12 |
0314930 |
DAMENER,Vibration,upper |
| 13 |
0314865 |
PIVOT BEARING, Lower |
| 14 |
0314929 |
DAMPENER, Vibration pivot bearing, lower |
| 15 |
0132679 |
SCREW, Handle adjustment |
| 16 |
0314788 |
SWIVEL BRACKET ASS, Front |
| 18 |
0314787 |
SWIVEL BRACKET, Rear |
| 19 |
0314947 |
BLOCK, Friction |
| 20 |
0314946 |
SCREW, Friction block |
| 21 |
0391955 |
STERN BRACKET ASSY This part replaces 0380872. |
| 22 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0375742. |
| 25 |
0314801 |
LOCK, Reverse |
| 26 |
0315040 |
SPRING, Reverse lock |
| 28 |
0306433 |
WASHER |
| 29 |
0302051 |
SPRING Tilting bolt |
| 30 |
0304278 |
WASHER |
| 31 |
0311279 |
SPRING, Long |
| 32 |
0301983 |
CONICAK WASHER,Stern brkt |
| 33 |
0901889 |
SCREW This part replaces 0303396. |
| 34 |
0381816 |
LEVER,Titl adj. |
| 35 |
0380871 |
STERN BRACKET ASSEMBLY PORT(INCL.ITEM 22) |
| 36 |
0326134 |
BOLT, Tilting This part replaces 0304277. |
| 37 |
0306344 |
BALL SLEEVE |
| 38 |
0315121 |
GASKET, Exhaust housing to cover |
| 39 |
0202021 |
SPRING, Link to shallow water drive |
| 40 |
0205572 |
GROMMET, Upper housing |
| 41 |
0205573 |
DRIVESHAFT, Upper |
| 46 |
0303327 |
WASHER |
| 47 |
0313496 |
SPRING, Washer to coupler |
| 48 |
0313497 |
RETAINING WASHER, Coupler |
| 49 |
0313498 |
COUPLER, Driveshaft |
| 50 |
0313499 |
PIN |
| 52 |
0132691 |
COMPRESSION NUT |
| 53 |
0205544 |
WATER TUBE, Lower |
| 54 |
0315123 |
HOUSING, Exhaust |
| 55 |
0205693 |
SPRING |
| 56 |
0205687 |
PIN, Hinge housing |
| 57 |
0312129 |
PIN,Clamp to housing |
| 59 |
0315120 |
EXHAUST HOUSING INNER |
| 61 |
0313776 |
SCREW, Knob to link This part replaces 0315341. |
| 62 |
0315338 |
GASKET, Exh housing |
