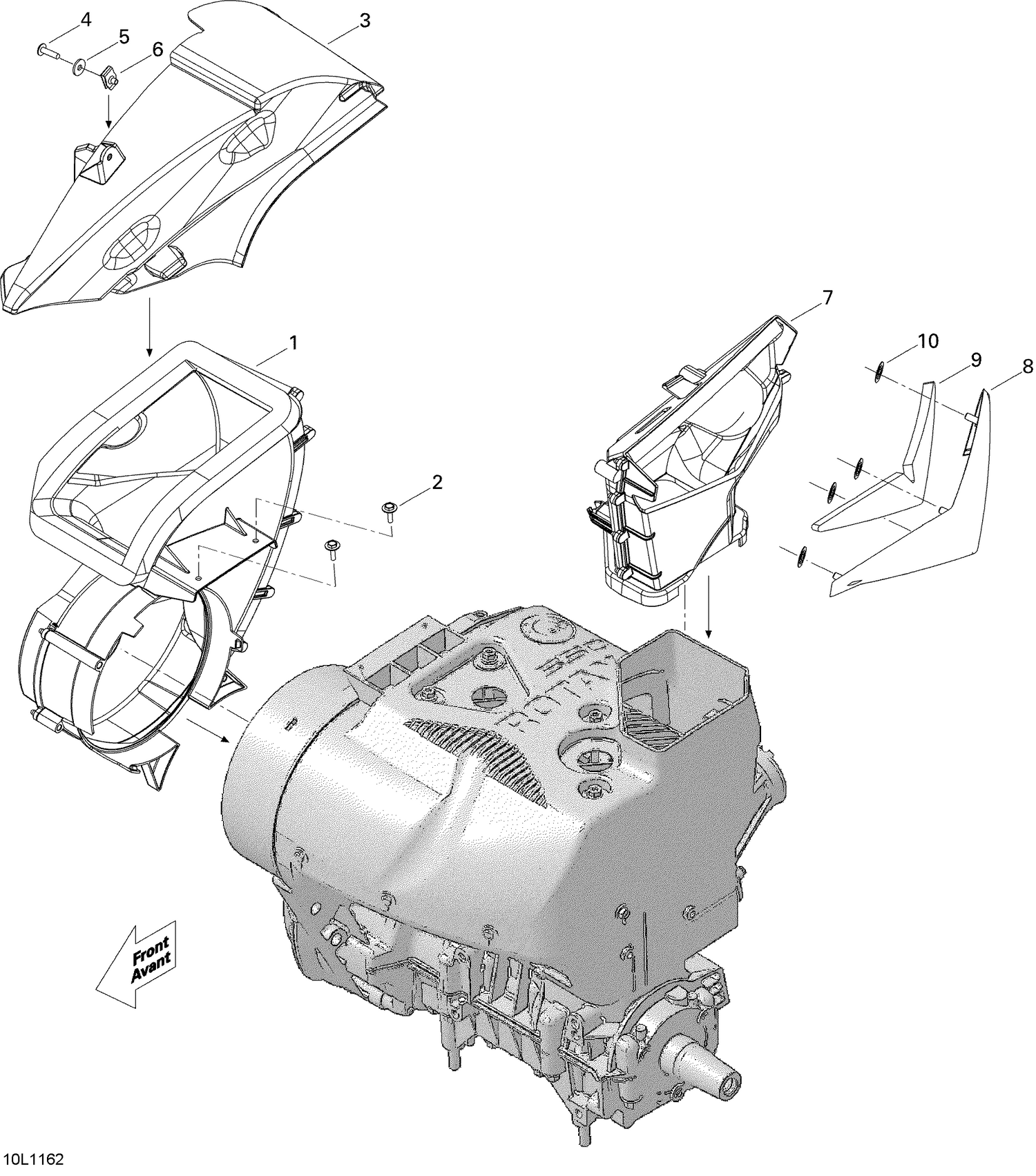

01- Cooling System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000840 | Inlet Duct This part replaces 509000448. |
| 2 | 250000377 | PLASTITE SCREW TYPE K-40 M4 X 16 - Call your local BRP dealership |
| 3 | 509000451 | Air Chamber Ass'y |
| 4 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 5 | 391301600 | Washer |
| 6 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 7 | 509000452 | Outlet Duct Ass. |
| 8 | 509000585 | OUTLET AIR DEFLECTOR - Call your local BRP dealership |
| 9 | 509000574 | Air Inlet Foam |
