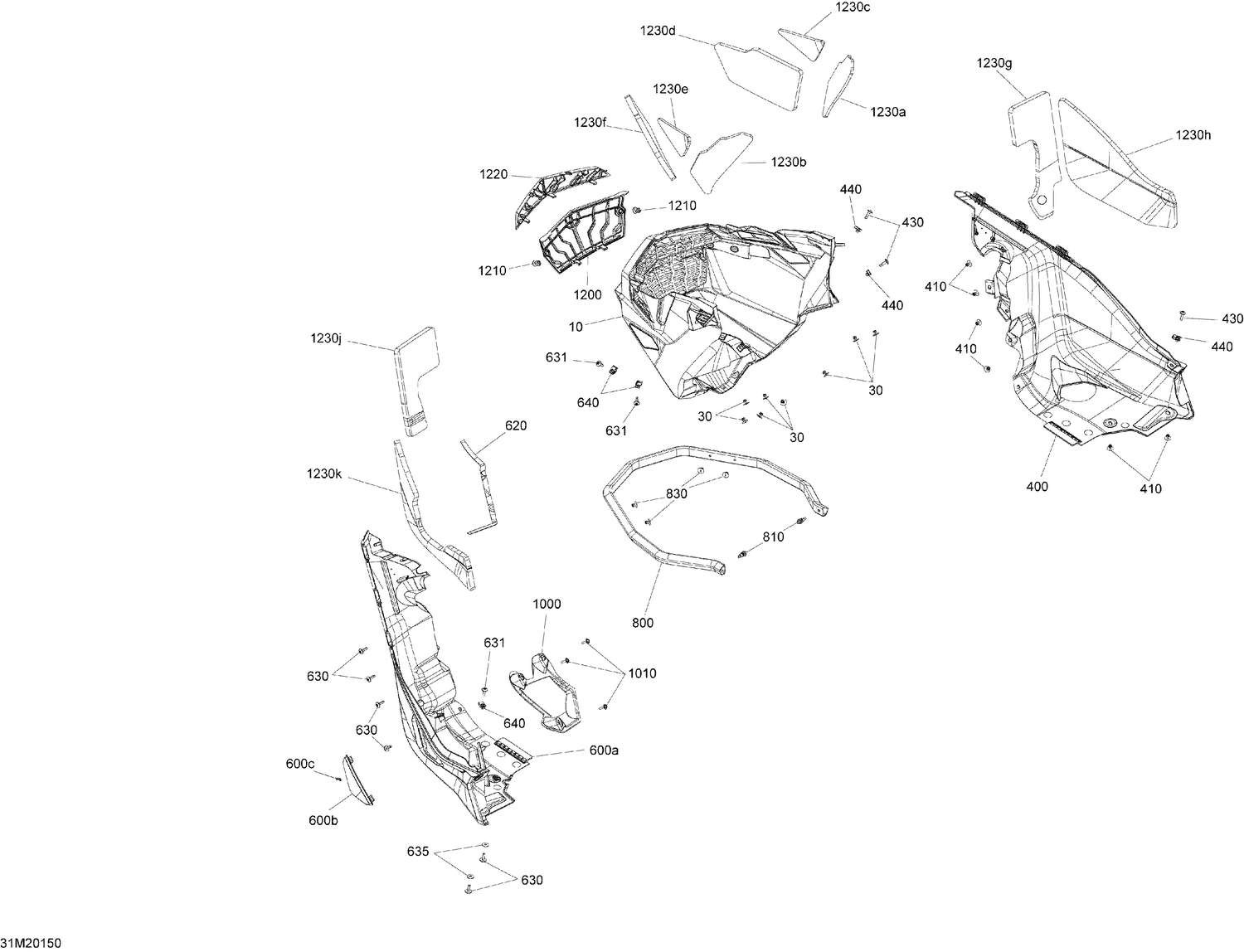

09- Body - Bottom Pan - Racing
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007775 | Front Bottom Pan |
| 30 | 293150104 | Pop Rivet 3/16" |
| 400 | 502007755 | Bottom Pan - Rh |
| 410 | 293150104 | Pop Rivet 3/16" |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 600a | 502007675 | LH Bottom Pan |
| 600b | 502007676 | Bottom Pan Door |
| 600c | 269800431 | Hairpin Cotter |
| 620 | 219704364 | Neoprene Seal (1PAC=3M) |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 800 | 502007460 | Front Bumper |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16" |
| 1000 | 502007670 | Protection Plate |
| 1010 | 250000725 | Screw M4 X 16 |
| 1200 | 502008674 | Lower Prefilter Grille This part replaces 508000958. |
| 1210 | 293150230 | Tuflok Plastic Rivet |
| 1220 | 508000959 | Upper Hood Filter |
| 1230a | 502007788 | RH Upper Bottom Pan Foam This part replaces 502007463. |
| 1230b | 502007789 | LH Upper Bottom Pan Foam This part replaces 502007653. |
| 1230c | 502007545 | RH Bottom Pan Central Foam |
| 1230d | 502007800 | RH Lower Bottom Pan Foam This part replaces 502007465. |
| 1230e | 502007546 | LH Bottom Pan Central Foam |
| 1230f | 502007799 | LH Lower Bottom Pan Foam This part replaces 502007466. |
| 1230g | 502007547 | RH Bottom Pan Upper Foam |
| 1230h | 502007548 | RH Bottom Pan Lower Foam |
| 1230j | 502007549 | LH Bottom Pan Upper Foam |
