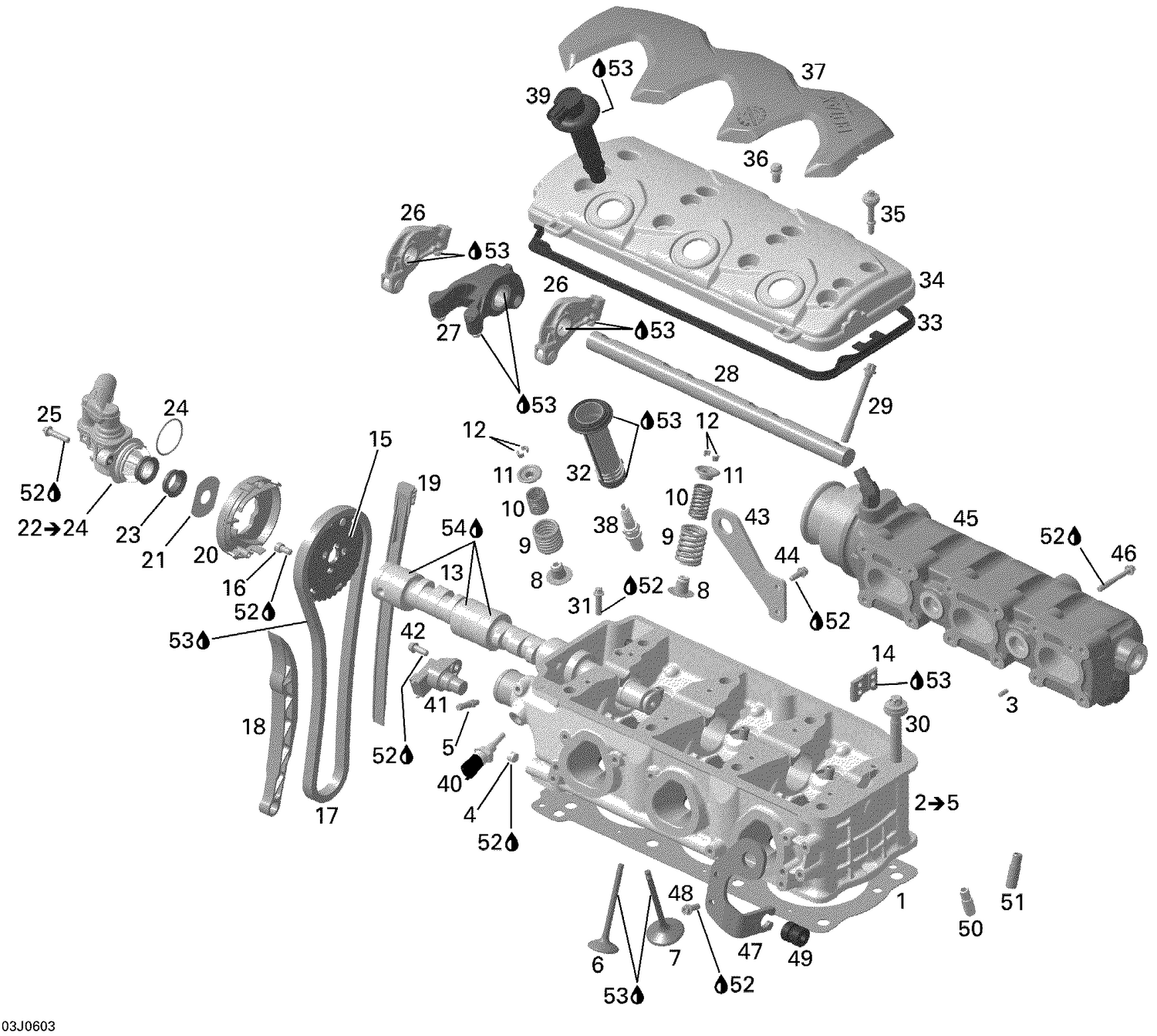

01- Cylinder Head

01- Cylinder Head

Parts (50)

RefPart NumberDescription
1 420950771 Cylinder Head Gasket This part replaces 420950770.
3 420929650 Drive Pin 5 X 10
4 420641323 Plug Screw M10 X 1
5 420924724 Hose Nipple This part replaces 420924720.
7 420253163 Intake Valve 38MM This part replaces 420254293.
8 420630202 Valve Steam Seal This part replaces 420630200.
9 420238180 Valve Spring
10 420838280 Valve Spring Inside
11 420254283 Valve Spring Retainer This part replaces 420254281.
12 420253645 Valve Cotter
13 420637780 Camshaft This part replaces 420837851.
14 420851694 Camshaft Guide This part replaces 420851692.
15 420254309 Timing Gear, 38 Teeth This part replaces 420254307.
16 420840032 Allen Screw M6 X 12 This part replaces 420840031.
17 420898042 Camshaft Chain This part replaces 420898040.
18 420236541 Chain Tension Guide
19 420236501 Chain Guide
20 420660037 Cover
21 420627494 Thrust Washer
23 420630125 V-Ring 20S FPM Blow By Valve
24 420950870 O-Ring
25 420641238 Torx Flange Screw M6 X 25
26 420254329 Rocker Arm, Exhaust
27 420254316 Rocker Arm, Inner
28 420854594 Rocker Arm, Shaft
29 420641080 Torx Screw M8 X 72
30 420641110 Torx Flange Screw M11 X 147
31 420641238 Torx Flange Screw M6 X 25 This part replaces 420440237.
32 420851754 Spark Plug Pipe This part replaces 420851751.
33 420950820 Valve Cover Gasket
34 420811587 VALVE COVER - Call your local BRP dealership This part replaces 420811585.
35 420440568 Hex Screw M6 X 30 This part replaces 420440567.
36 420641488 TORX SCREW M6 X 8 - Call your local BRP dealership
37 420660167 Valve Cover This part replaces 420660164.
38 715900637 Spark Plug NGK DCPR8E This part replaces 707000246.
39 296000307 Ignition Coil Kit This part replaces 420664020.
40 278002895 Temperature Sensor This part replaces 420222425.
41 420664046 Camshaft Position Sensor Ass'y This part replaces 420664040.
42 420641048 Torx Flange Screw M6 X 16 This part replaces 420440167.
43 420851618 Transport Bracket PTO This part replaces 420851616.
44 420641048 Torx Flange Screw M6 X 16 This part replaces 420440167.
45 296000422 Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673290.
46 420641198 Torx Flange Screw M6 X 45 This part replaces 420440327.
47 420951380 TRANSPORT BRACKET FRONT - Call your local BRP dealership This part replaces 420851614.
48 420641048 Torx Flange Screw M6 X 16 This part replaces 420440167.
49 420660090 Rubber Bracket
50 420253929 Valve Guide This part replaces 420253924.
51 420253929 Valve Guide This part replaces 420253924.
52 293800060 Loctite 243, 10 ml
53 293600121 OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 219700346.
