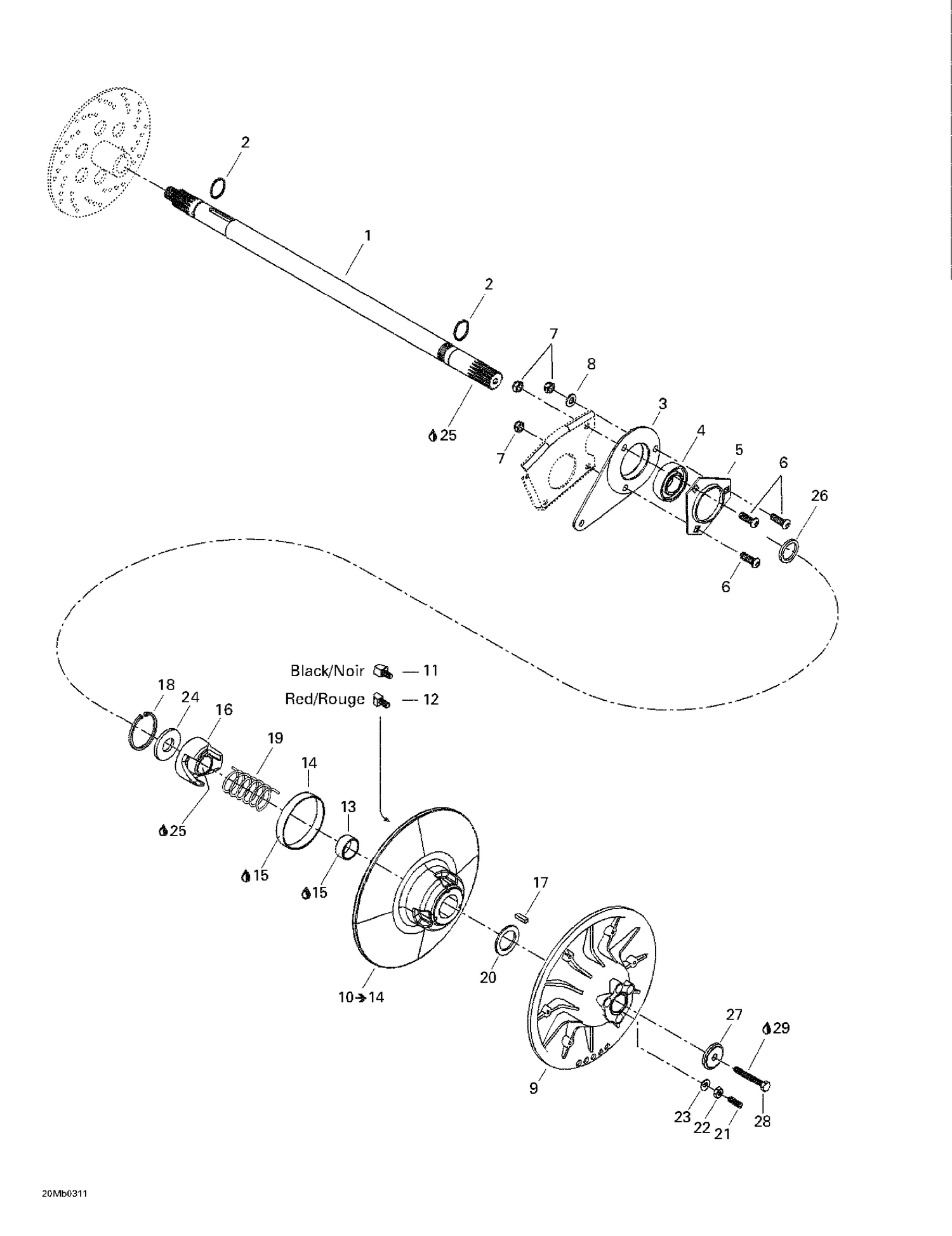

05- Driven Pulley
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504152041 | Countershaft |
| 2 | 371910000 | Circlip |
| 3 | 080044200 | Spacer (Casting) |
| 4 | 504152008 | BALL BEARING - Call your local BRP dealership |
| 5 | 501025000 | FLANGE - Call your local BRP dealership |
| 6 | 205482546 | SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 7 | 232581414 | Hex. Elastic Stop Nut M8 |
| 8 | 234081410 | Flat Washer 8 mm |
| 11 | 417126538 | Slider Shoe, Front |
| 12 | 417126539 | SLIDER SHOE, REAR - Call your local BRP dealership |
| 13 | 417126515 | CUSHION - Call your local BRP dealership |
| 14 | 417126562 | Bushing |
| 15 | 413703100 | Loctite 609, 10 ml |
| 17 | 414820800 | Key |
| 18 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 19 | 504152070 | RELEASE SPRING, WHITE - Call your local BRP dealership |
| 20 | 504141900 | Thrust Washer |
| 21 | 206263044 | Socket Set Screw M6 X 30 |
| 22 | 232061414 | Hex. Nut M6 |
| 23 | 420245370 | WASHER - Call your local BRP dealership |
| 24 | 504141800 | Washer |
| 25 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 26 | 504149100 | Spacer |
| 27 | 517302322 | Strength Washer |
| 28 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
