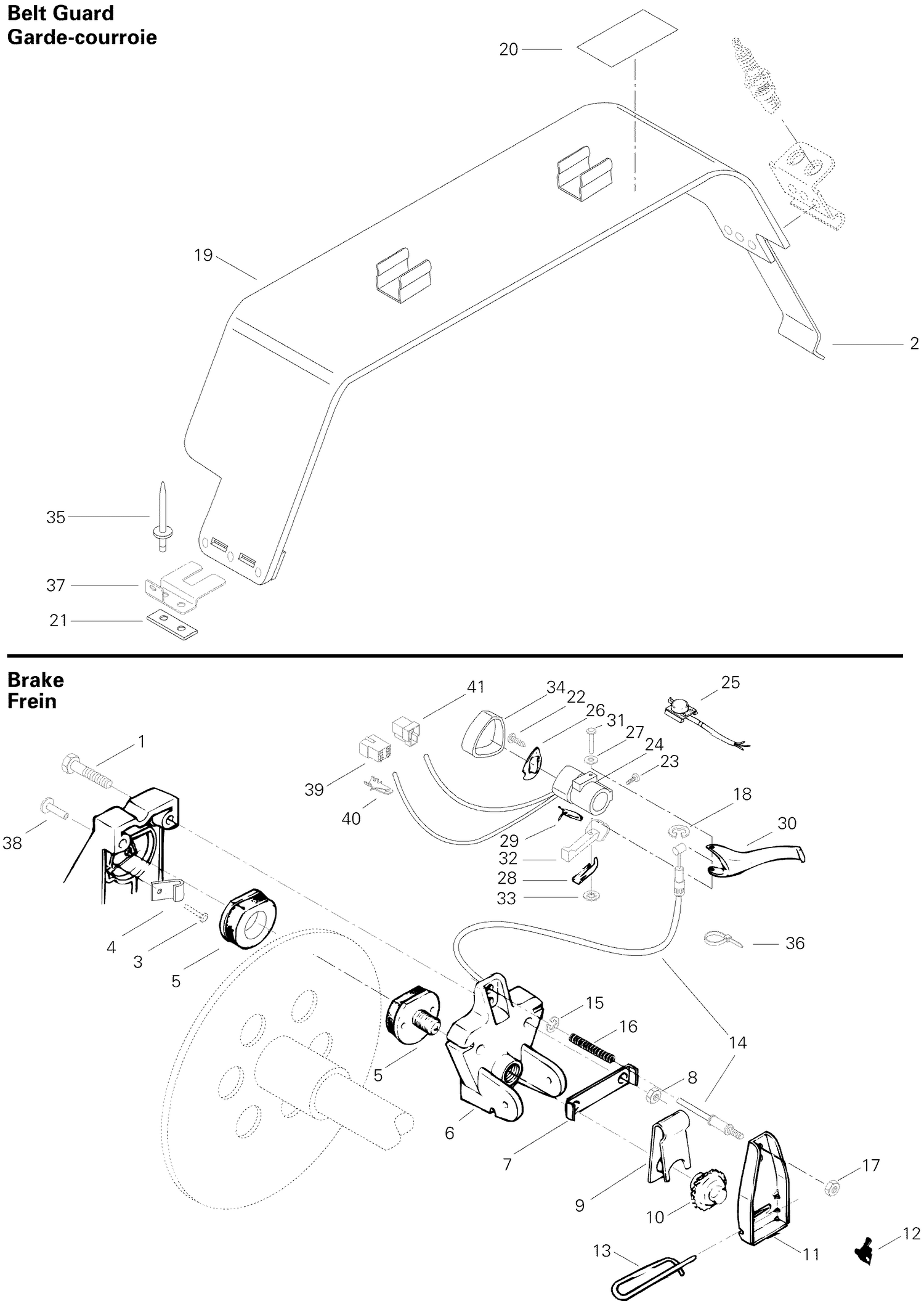

06- Brake
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207085544 | Hex. Screw M8 X 55 This part replaces 222085565. |
| 2 | 414941800 | Tool Box Spring |
| 3 | Not | Available As Spare Part - Rivet |
| 4 | 507022600 | WEAR INDICATOR - Call your local BRP dealership |
| 5 | 860701700 | Pad_Brake Kit - Call your local BRP dealership |
| 6 | 507027600 | Machined Caliper |
| 7 | 507020400 | LOCK-TAB - Call your local BRP dealership |
| 8 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 9 | 507020200 | RELEASE SPRING - Call your local BRP dealership |
| 10 | 507019600 | Wheel Ratchet |
| 11 | 507021500 | LEVER - Call your local BRP dealership |
| 12 | 507009400 | RATCHET SPRING - Call your local BRP dealership |
| 13 | 507027500 | Hair Pin |
| 14 | 414922500 | BRAKE CABLE - Call your local BRP dealership |
| 15 | 371901300 | Circlip |
| 16 | 414460600 | SPRING - Call your local BRP dealership |
| 17 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 18 | 414274500 | Circlip |
| 20 | 414108700 | Warning Decal |
| 21 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 22 | 414473200 | Screw |
| 23 | 414440800 | Socket Set Screw M8 X 10 |
| 24 | 414441600 | Brake Handle Housing |
| 25 | 414612600 | Dimmer Switch |
| 26 | 414473100 | Cover |
| 27 | 414729400 | WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 28 | 517229300 | Spring |
| 29 | 414612500 | Brake Light Switch |
| 30 | 572025700 | BRAKE HANDLE - Call your local BRP dealership |
| 31 | 517229400 | PIN - Call your local BRP dealership |
| 32 | 572025200 | Brake Lever |
| 33 | 389804300 | Push Nut |
| 34 | 572073800 | BRAKE COVER - Call your local BRP dealership |
| 35 | 390403600 | Pop Rivet 3/16 |
| 36 | 414115200 | Tie-Rap 180 mm |
| 37 | 518314200 | Pulley Guard Bracket |
| 38 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 39 | 409209300 | MALE HOUSING - Call your local BRP dealership |
| 40 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
