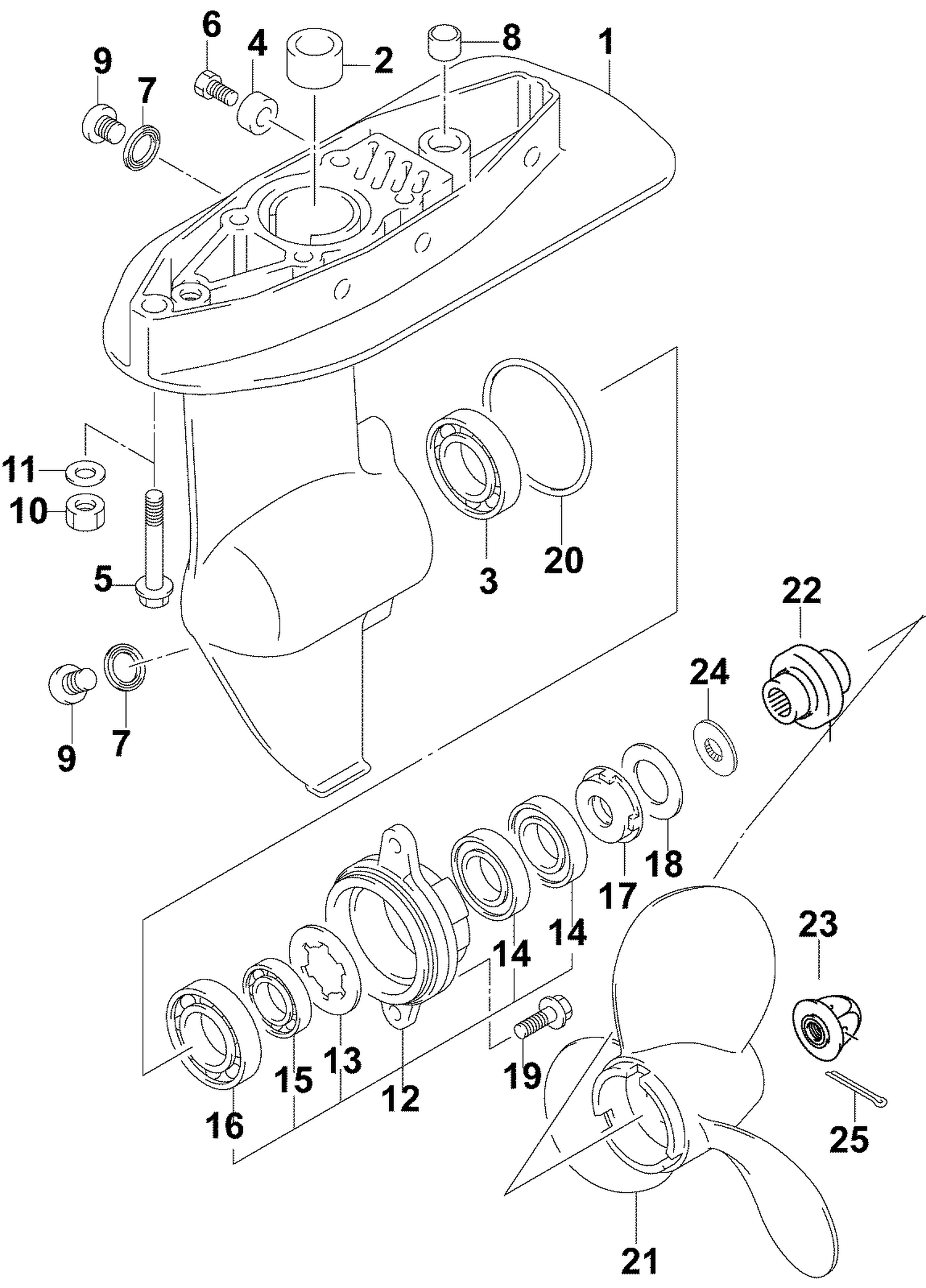

GEARCASE

GEARCASE

Parts (10)

Ref	Part Number	Description
1	5033425	CASE ASSY, GEAR
5	5031822	BOLT
7	5030071	GASKET
8	5030092	PIN
9	5030094	BOLT (10X7.5mm)
12	5033426	HOUSING, PROP SFT BRG
17	5030270	PROTECTOR, OIL SEAL
18	5030271	WASHER
20	5030106	O RING
23	5030288	NUT, Propeller
