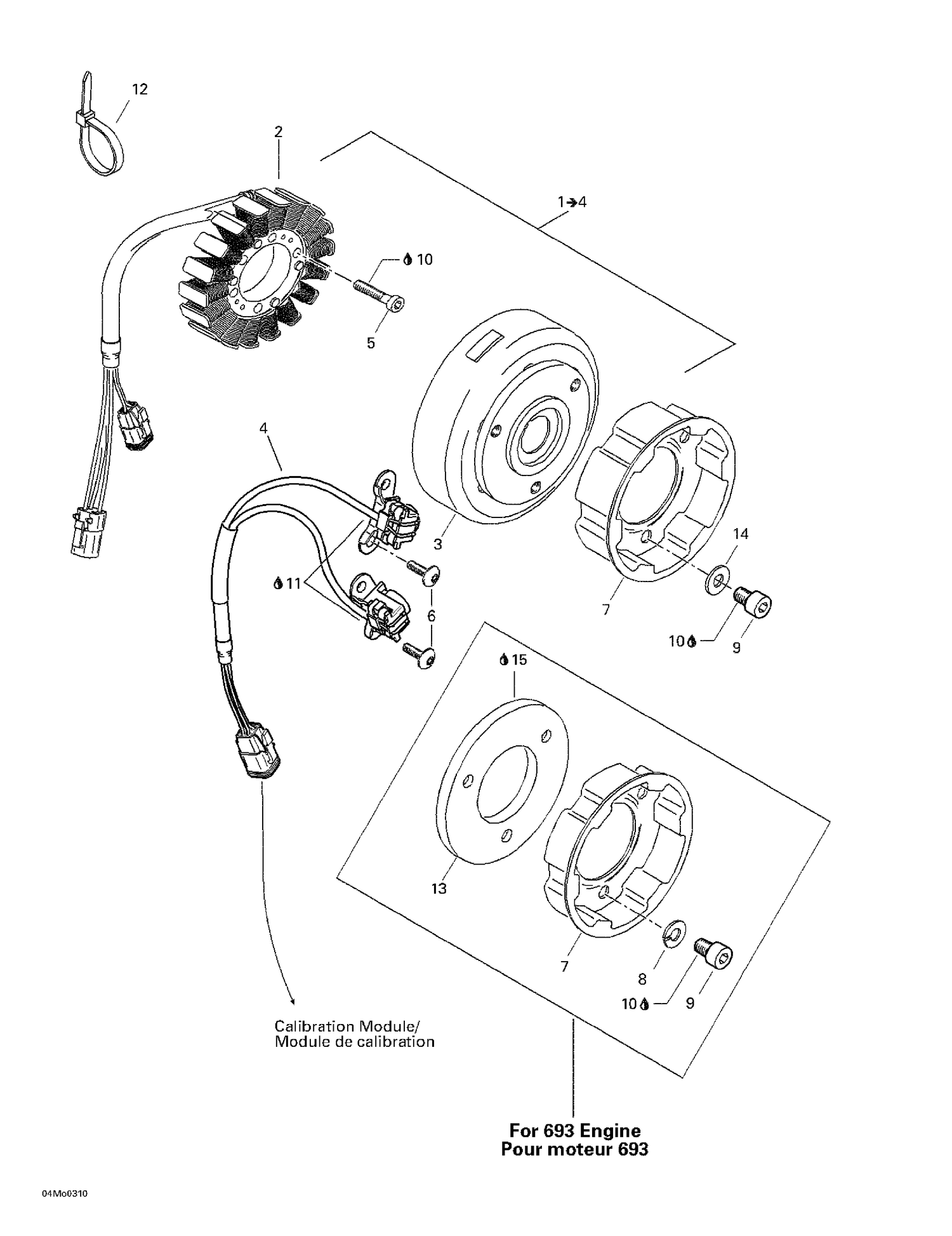

03- Magneto (12V, 360W)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420889905 | Stator Plate A This part replaces 410922946. |
| 3 | 410922947 | FLYWHEEL - Call your local BRP dealership |
| 4 | 410922948 | Pickup Ass'y |
| 5 | 205063044 | Socket Head Screw M6 X 30 |
| 6 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 10 | 293800060 | Loctite 243, 10 ml |
| 11 | Not | Available As Spare Part - Sikaflex 255, 310 ml |
| 12 | 293750001 | Tie Wrap 94 mm |
