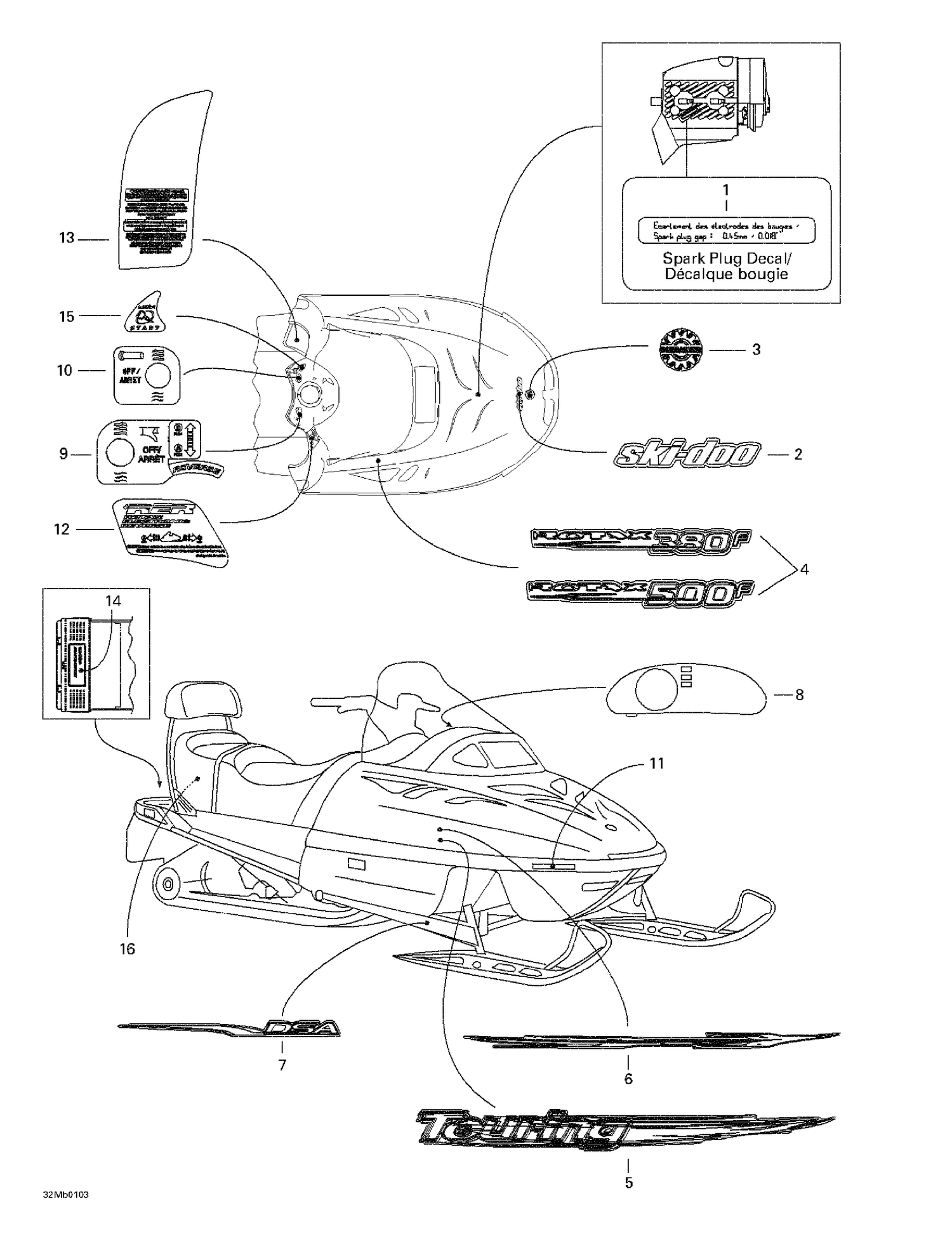

09- Decals
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 516008738 | BRP Logo 48mm This part replaces 516000983. |
| 5 | 415127964 | Kit -Side Decal |
| 6 | 415127965 | Kit -Upper Side Decal |
| 7 | 415127966 | Kit -Arm Decal |
| 8 | 516000144 | Dash Decal |
| 9 | 516000262 | Heating Thumb Decal |
| 10 | 414898500 | Heatgrip Decal |
| 11 | 861805523 | Yellow, LH/RH Rear Reflector Kit This part replaces 418001009. |
| 12 | 418001602 | Reverse Decal |
| 13 | 414935000 | Label - Warning (2 pass.) |
| 14 | 414954400 | Label - Warning (Model Fan) |
| 15 | 516000271 | Electric Decal |
| 16 | 415037900 | White, Reflector |
