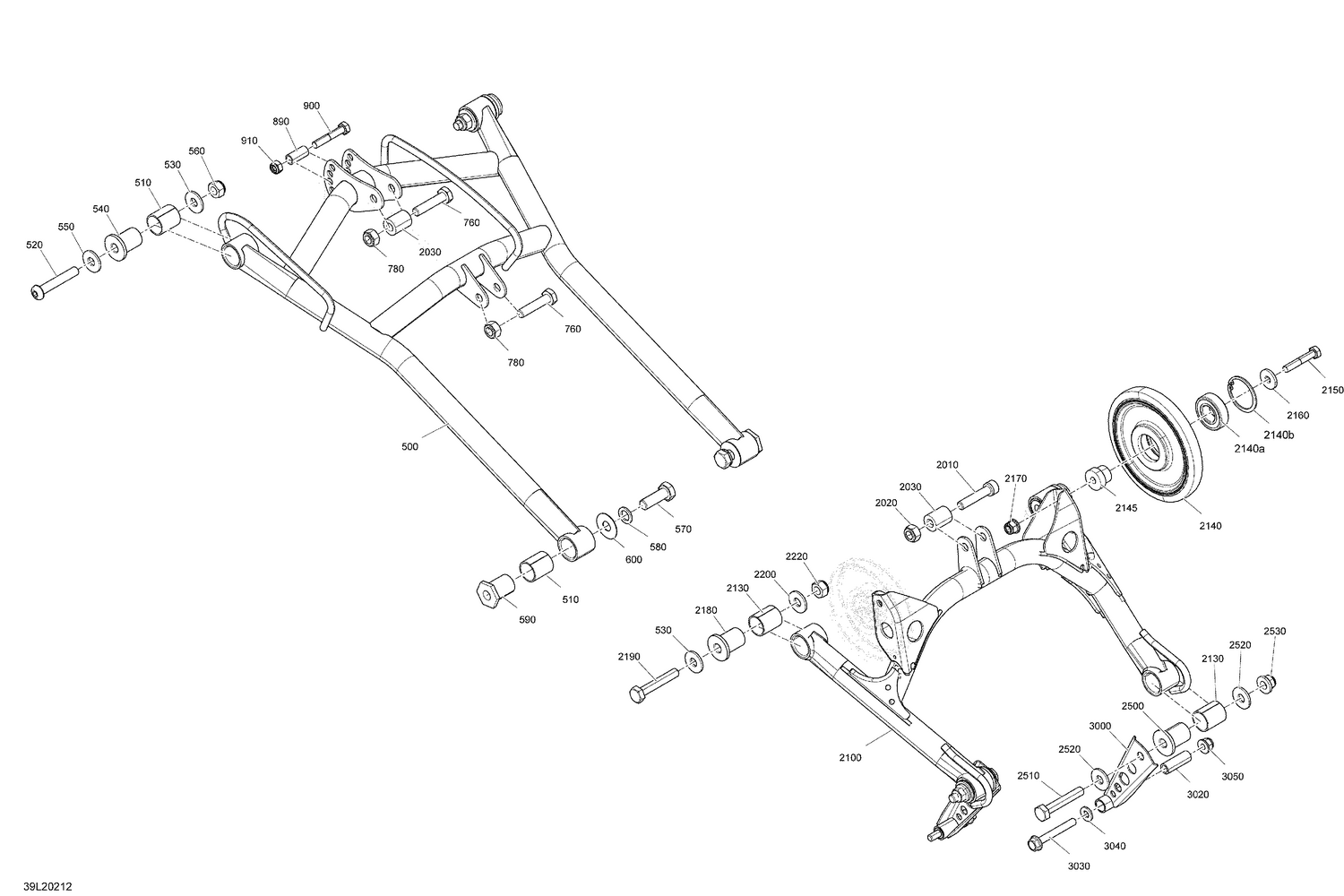

08- Suspension, Rear - Upper Section
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 503195417 | Front Arm |
| 510 | 503191554 | Bushing |
| 520 | 503194947 | Screw-socket Bn.hd. M10 X 60 |
| 530 | 503191926 | Washer |
| 540 | 503190698 | Axle |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 570 | 250000537 | Hex. Cap Screw M12 X 35 |
| 580 | 503192491 | Washer |
| 590 | 503191966 | Lower Axle |
| 600 | 503190656 | Washer |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 890 | 605455335 | Sleeve |
| 900 | 207084544 | Hex. Screw M8 X 45 |
| 910 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
| 2100 | 503194848 | Rear Arm |
| 2130 | 503191554 | Bushing |
| 2140a | 503190396 | Ball Bearing |
| 2140b | 415129371 | Retaining Ring |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2180 | 503190698 | Axle |
| 2190 | 250000696 | Hexagonal Screw |
| 2200 | 503191926 | Washer |
| 2220 | 233601466 | Elastic Locking Nut M10 |
| 2500 | 503190698 | Axle |
| 2510 | 250000696 | Hexagonal Screw |
| 2520 | 503191926 | Washer |
| 2530 | 233201466 | Flanged Elastic Nut M10 |
| 3000 | 503194869 | Rear Swing |
| 3020 | 503194890 | Pivot Arm Axle |
| 3030 | 207686044 | Hex. Flange Screw M8 x 60 |
| 3040 | 503192494 | Washer |
