01- Engine

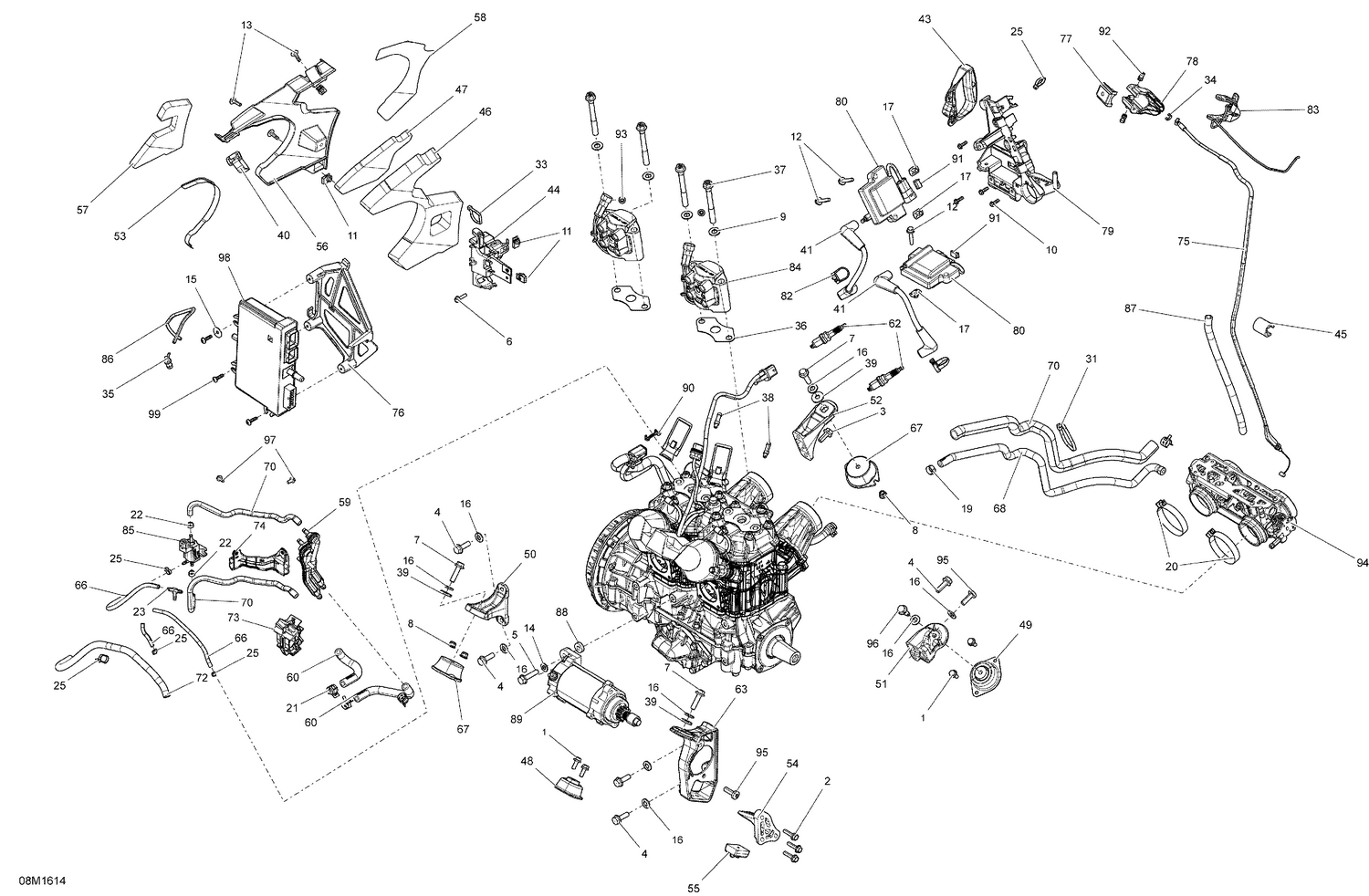

01- Engine

Parts (85)

RefPart NumberDescription
1 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
2 207562544 Hex. Flange Screw M6 X 25
3 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
4 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
5 207583544 Hex Flange Screw M8 X 35, Scotch Grip
6 207652044 Hex.Flange Screw M5 X 20
7 207683044 Hex. Flange Screw M8 X 30
8 233261414 Hex. Flange Elastic Nut M6 x 1.0
9 234001410 Flat Washer 10 mm
10 241151640 Hex. Flange Screw K50 X 2.24 X 16
11 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
12 250000253 Hex. Flange Screw M6 X 1.0 X 30
13 250000528 Torx Screw M5 X 20
14 250200008 Flat Washer With Teflon 8 mm
15 250200040 Flat Washer
16 250200146 Conical Spring Washer M8
17 293100003 Nut Welded, M6
19 293650046 Oetiker Clamp
20 293650158 Gemi Clamp
21 293650214 Norma Spring Clamp
22 293650234 Crimp Clamp
23 293710068 T-Fitting
25 293750001 Tie Wrap 94 mm
31 293750008 Tie Wrap 368 mm
33 414115200 Tie-Rap 180 mm
34 414274500 Circlip
35 414814100 Male Connector
36 420430930 Gasket
37 420441187 Torx Flange Screw M10 X 90 -SW 13/T50
38 420924724 Hose Nipple
39 503183200 Yellow, Washer
40 508000599 Velcro Strip
41 512061126 Ignition Cable, 177mm long This part replaces 512060094.
43 512060136 Starter Grip
44 512060298 Solenoid Support
45 512060313 Protector
46 512060343 Interior Noise Foam
47 512060344 Upper Exterior Noise Foam
48 512061507 Vibration Damper This part replaces 512060387.
49 512060448 Rubber Mount
50 512060469 Front Support, MAG
51 512060478 Rear Support, PTO
52 512060559 Rear Support, MAG
53 512060574 Heat Shield
54 512060576 Stopper Support
55 512060627 Stopper
56 512060634 Noise Shield
57 512060665 Lower Exterior Noise Foam
58 512060666 Heat Shield
59 512060692 Manifold
60 512060694 RH Formed Hose
60 512060695 LH Formed Hose
62 415130430 Spark Plug NGK PZFR6F This part replaces 415129375.
63 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.
66 219704352 Was 420660574 Pressure Hose 280 mm
67 512060729 Rubber Mount
68 512060740 Formed Hose, Output
70 219704408 Tubing 16 Mm 1000Mm Long
72 219704399 Was 409901700 Tubing (9 mm)
73 512060769 Manifold Support
74 512060827 Hose Support
75 512060851 Throttle Cable
76 512060858 Calibrated Module Support
77 512060859 Upper Housing
78 512060860 Lower Housing
79 512060888 Ignition Coils Support
80 512060953 Ignition Coil
82 512060993 Clamp
83 512061250 Handle Ass'y This part replaces 512061051.
84 512061233 Fuel Injector This part replaces 512061053.
85 270600005 Solenoid Valve This part replaces 512061078.
86 219704709 NEEDS DESCRIPTION This part replaces 219704409.
87 219704399 Was 409901700 Tubing (9 mm)
88 515176500 Washer
89 515178473 Starter This part replaces 515177389.
90 515177770 Locker
91 710000992 Clip
92 732601143 Flange Screw
93 732610072 Push Nut
94 420889201 Throttle Body
95 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip
96 250000796 Hex. Flange Screw M8 X 1.25 X 25
97 210251150 Hex Flange Screw M5 X 11
98 512060780 Calibrated Module
99 250000760 Torx Screw Truss Head K50X20 T20
