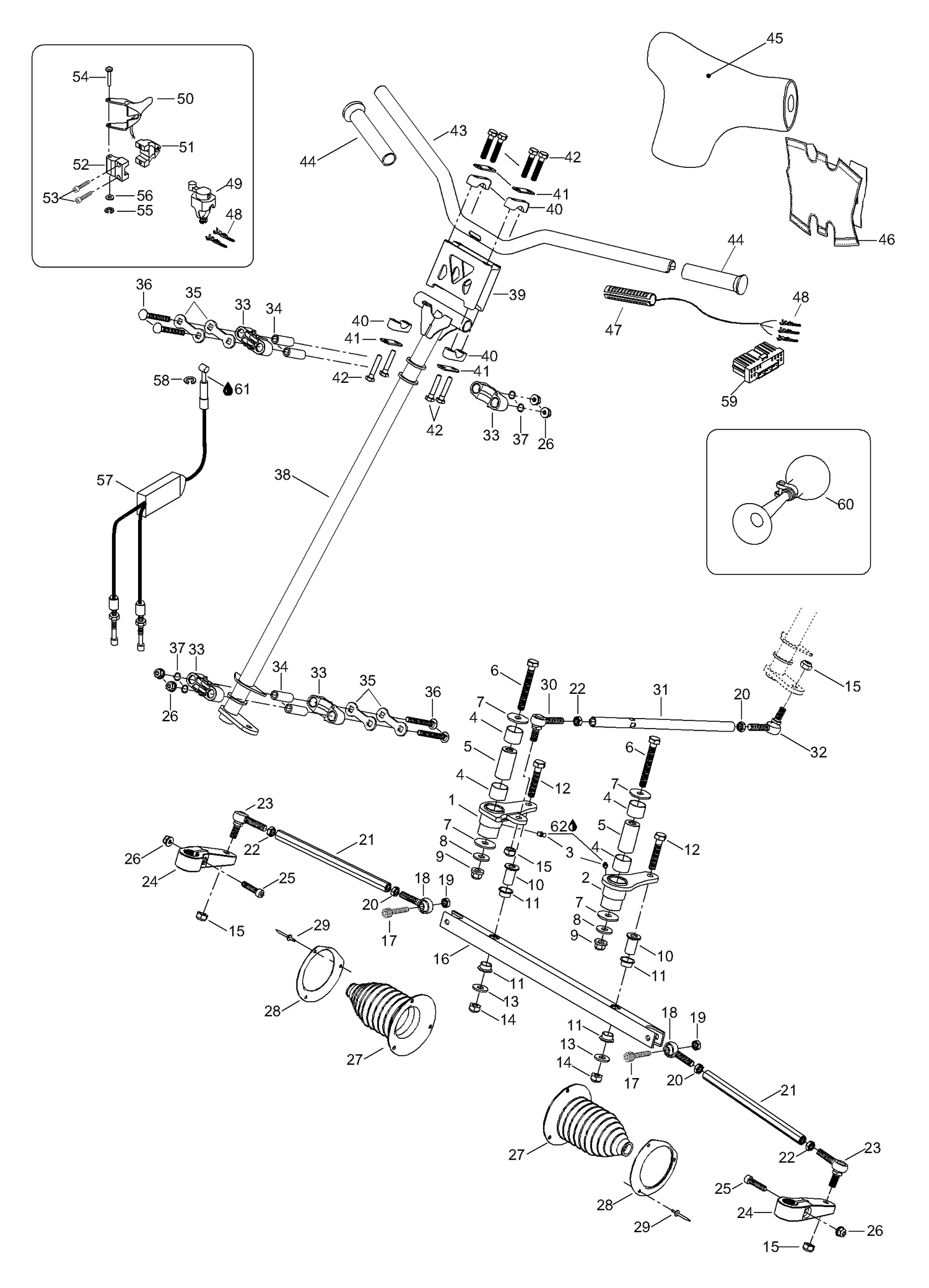

| Ref | Part Number | Description |
|---|
| 1 |
506151506 |
R.H. swivel arm |
| 2 |
506151623 |
LH SWIVEL ARM - Call your local BRP dealership |
| 3 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 4 |
506149900 |
BUSHING SWIVEL - Call your local BRP dealership |
| 5 |
506150100 |
PIVOT SWIVEL - Call your local BRP dealership |
| 6 |
40229 |
Screw M10 x 80 |
| 7 |
20080 |
Washer |
| 8 |
20101 |
Washer, hardened |
| 9 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 10 |
506147300 |
BAR PIVOT - Call your local BRP dealership |
| 11 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 12 |
40018 |
Screw M10 x 55 |
| 13 |
20028 |
Washer |
| 14 |
33012 |
Nut elastic M10 |
| 15 |
33023 |
Nut elastic M10 |
| 16 |
605348756 |
Bar-swivel |
| 17 |
40395 |
Allen screw M8 x 35 |
| 18 |
506151496 |
LH BALL JOINT - Call your local BRP dealership |
| 19 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 20 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 21 |
5346200 |
Tie Rod |
| 22 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 23 |
506151491 |
Joint ball |
| 24 |
506145800 |
RH STEERING ARM - Call your local BRP dealership |
| 24 |
506145900 |
LH STEERING ARM - Call your local BRP dealership |
| 25 |
40843 |
Allen screw M8 x 35 |
| 26 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 27 |
570070500 |
TIE-ROD CAP - Call your local BRP dealership |
| 28 |
5347006 |
Retainer ring |
| 29 |
36009 |
Rivet |
| 30 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 31 |
506151375 |
TIE-ROD - Call your local BRP dealership |
| 32 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 33 |
506150400 |
Half housing |
| 34 |
506150500 |
Housing bushing |
| 35 |
506150600 |
Stopper plate |
| 36 |
207787044 |
Carriage bolt M8 x 70 |
| 37 |
506151140 |
O-RING - Call your local BRP dealership |
| 38 |
506151488 |
Main tube |
| 39 |
506151413 |
Extension |
| 40 |
709400919 |
Steering Support This part replaces 506151622. |
| 41 |
709400509 |
Stiffner This part replaces 506151196. |
| 42 |
250000074 |
Screw M8 x 55 |
| 43 |
605249130 |
Handle bar |
| 44 |
5340464 |
Grip |
| 45 |
506151509 |
Padding |
| 46 |
605249239 |
Cover |
| 47 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 48 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 49 |
515177454 |
KILL SWITCH - Call your local BRP dealership This part replaces 515175685. |
| 50 |
512060214 |
Handle Assy This part replaces 512059152. |
| 51 |
512059537 |
Throttle housing, lower |
| 52 |
512059538 |
UPPER HOUSING - Call your local BRP dealership |
| 53 |
40220 |
Allen screw M5 x 25 |
| 54 |
414438700 |
Pin |
| 55 |
414439000 |
Circlip |
| 56 |
234051600 |
Washer M5 This part replaces 414438900. |
| 57 |
512058901 |
Throttle cable |
| 58 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 60 |
549011291 |
Horn This part replaces 21003. |
| 61 |
293550004 |
Dielectric grease |
