Parts Catalog

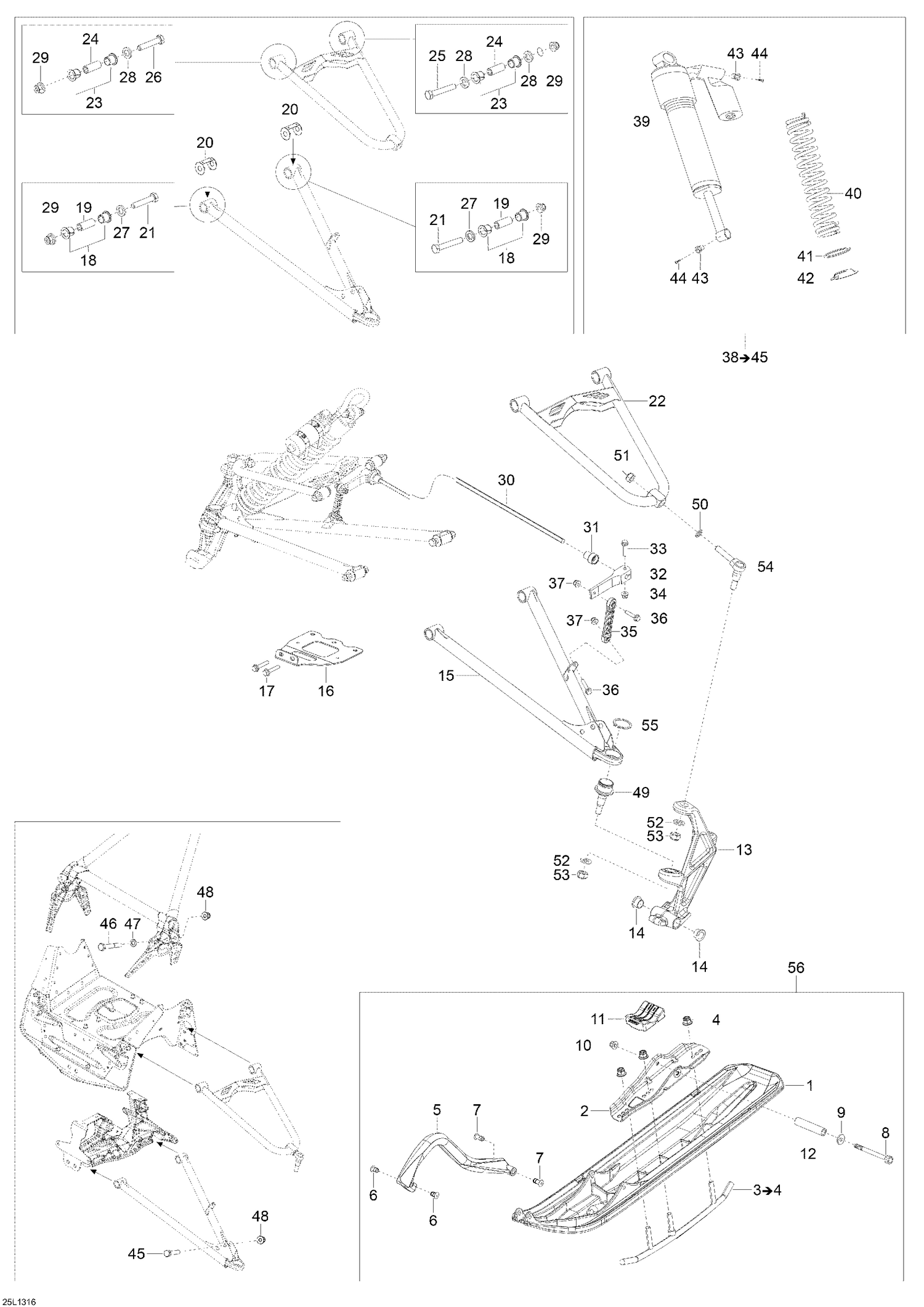

07- Front Suspension And Ski

Parts (56)

Ref	Part Number	Description
1	505073154	Blade Ski (Black)
2	505073240	Ski Bridge
4	233201414	Hex. Flanged Elastic Nut M10
5	505072976	Black, Handle
6	505071812	Retainer 17mm long
7	505072133	Retainer 23mm Long
8	231080044	Socket HD Screw M10 x 100
9	732900049	Washer
10	233201414	Hex. Flanged Elastic Nut M10
11	505073309	Rubber Damper
12	506133300	Spacer
13	505072957	Ski Leg LH
13	505072958	Ski Leg RH
14	505072690	Leg Bushing
15	505072664	Lower Arm RH
15	505072665	Lower Arm LH
16	505072584	Lower Reinforcement Plate
17	207182044	Hex. Cap Screw M8 x 20
18	503191766	Cushion
19	505072401	Aluminum Bushing
20	505072634	Wear Plate
21	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
22	505072455	Upper Arm
23	503191555	Swivel Bushing
24	505072143	Aluminum Bushing
25	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
26	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
27	503189564	Washer
28	505072392	Washer
29	250100165	Hex. Flanged Elastic Nut M10 This part replaces 250100088.
30	505072444	Stabilisator
31	505072445	Bushing
32	505072446	Stabilisator Lever
33	207663046	Hex. Flange Screw M6 X 30
34	233261416	Elastic Flanged Nut M6 X 1.0
35	505072204	Sway Bar Double Joint Link
36	207663046	Hex. Flange Screw M6 X 30
37	233261416	Elastic Flanged Nut M6 X 1.0
39	505073299	Front Shock RH
39	505073300	Front Shock LH
40	505073311	Spring 18 Nm.
41	505073150	Washer
42	503194270	Spring Stopper This part replaces 503192608.
43	505072753	Adjustment Knob
44	250000644	Allen Screw M3 X 0.5 X 10 This part replaces 205031060.
45	207005544	Hex. Cap Screw M10 x 55
46	207006544	Hex. Cap Screw M10 x 65
47	503189564	Washer
48	233201414	Hex. Flanged Elastic Nut M10
49	505073636	Ball Joint This part replaces 505072682.
50	503189276	Washer
51	250100089	Nut M12
52	234021410	Flat Washer
53	250100089	Nut M12
54	505072257	Upper Ball Joint
55	293370035	Circlip
