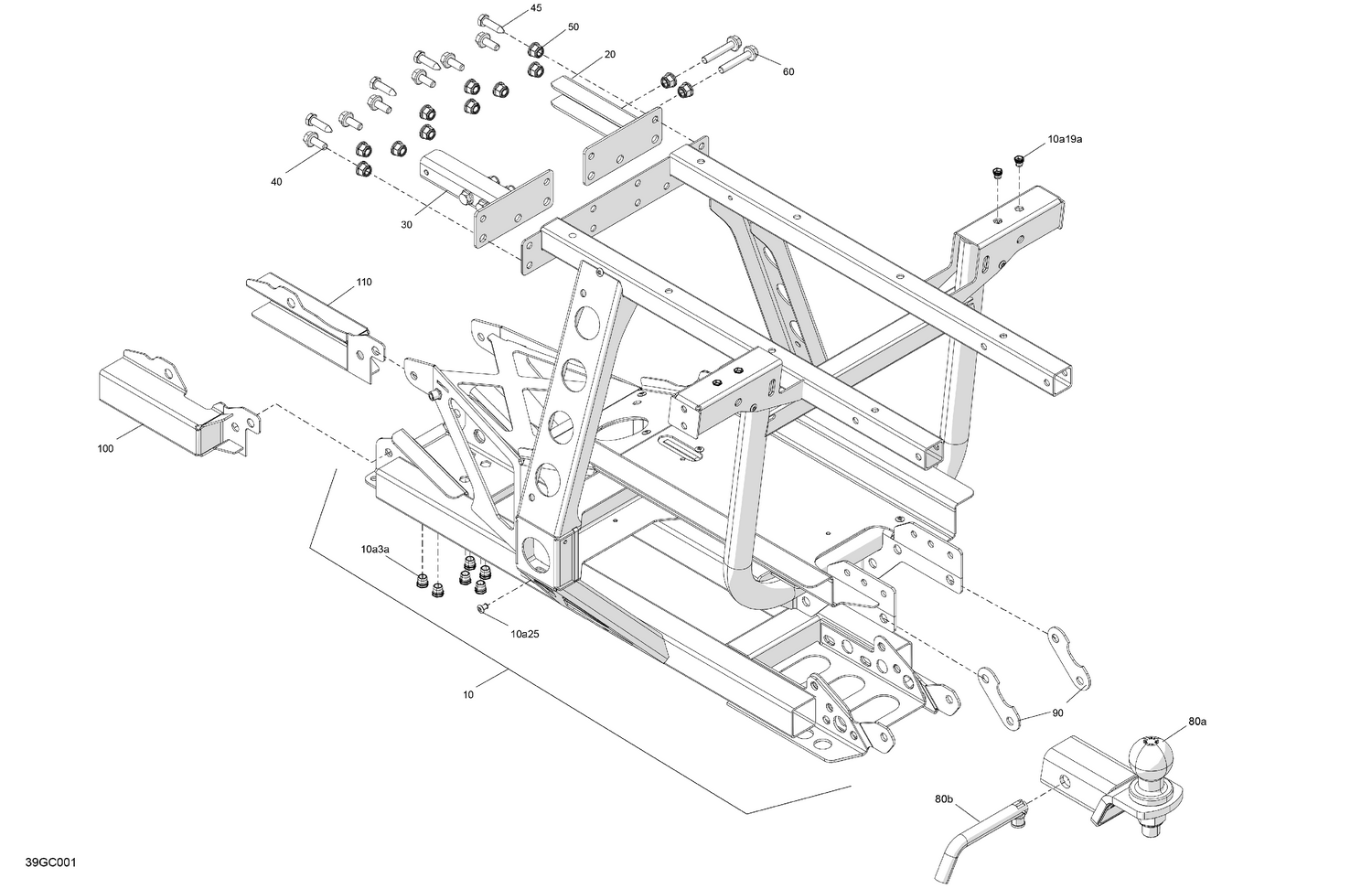

06- Frame - Rear Section
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10a19a | 605636003 | Clinch Nut M6 Hexsert |
| 10a25 | 390402200 | Pop Rivet 3/16" |
| 10a3a | 250100065 | Clinching Nut Hexert M8 |
| 20 | 705207086 | RH Inner Support |
| 30 | 705207087 | LH Inner Support |
| 40 | 207682046 | Hex. Flange Screw M8 X 20 |
| 45 | 250000942 | Hex Screw M8 X 30 |
| 50 | 233281416 | Hex. Elastic Flange Nut M8 |
| 60 | 250001028 | Hex. Flange Screw M6 X 45 |
| 80a | 705210328 | Trailer Hitch Kit |
| 80b | 705204490 | Hitch Pin |
| 90 | 705203564 | Support Plate |
| 100 | 705207420 | LH Sheath |
