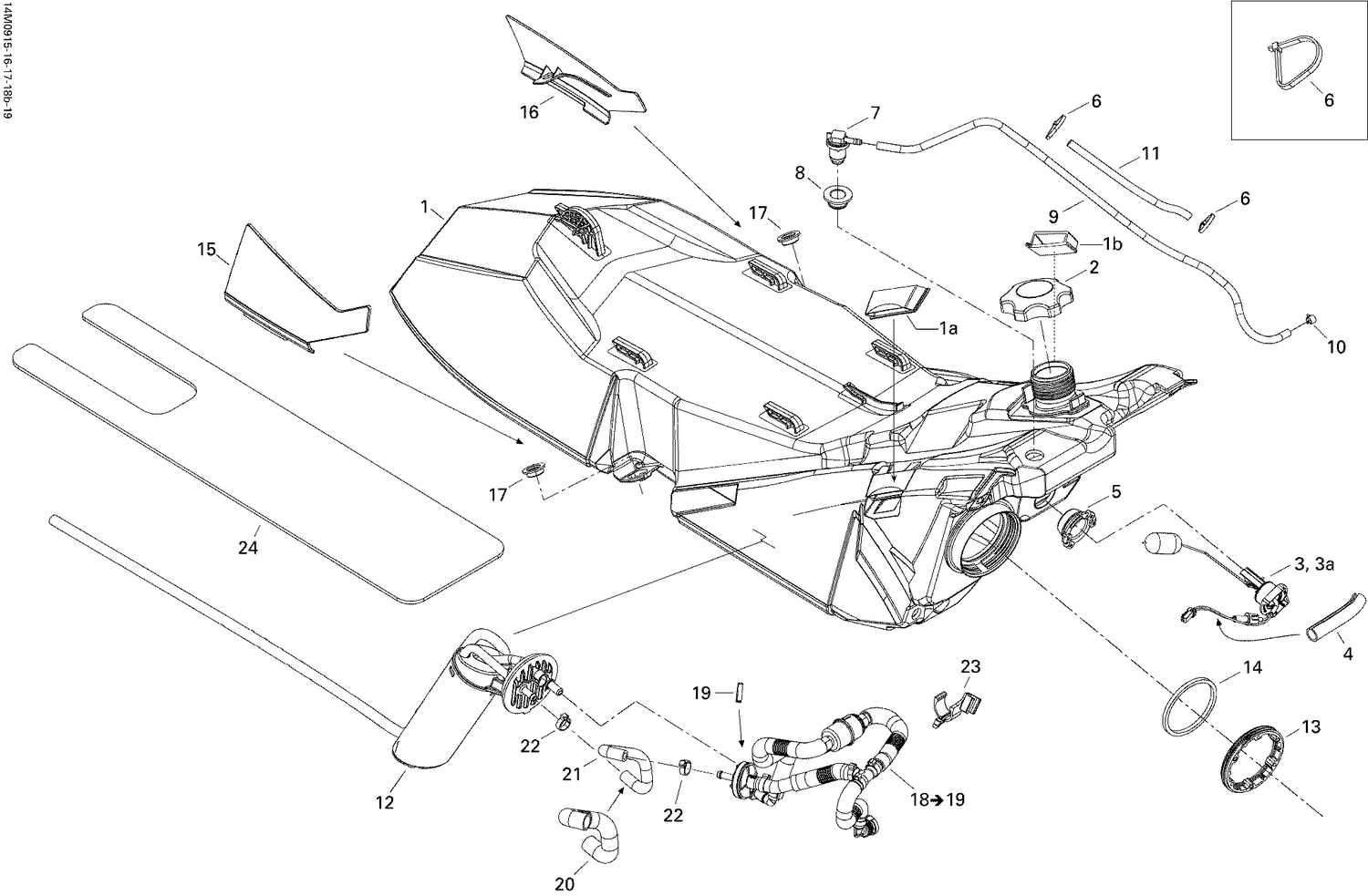

02- Fuel System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033459 | Fuel Tank |
| 1a | 513033471 | RH Panel Clip |
| 1b | 513033472 | LH Panel Clip |
| 2 | 513033025 | Fuel Tank Cap |
| 3 | 513033958 | Sensor Level Fuel This part replaces 513033168. |
| 3a | 710001995 | Fuse, 0.5 Ampère |
| 4 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 5 | 513033559 | GROMMET - Call your local BRP dealership |
| 6 | 414115200 | Tie-Rap 180 mm |
| 7 | 513033842 | Check Valve This part replaces 513033188. |
| 8 | 513033596 | Grommet This part replaces 513033189. |
| 9 | 219704410 | Polyurethane Hose 10000Mm Long |
| 10 | 414554800 | Spring Clamp |
| 11 | 504153074 | Tube Protector This part replaces 504152900. |
| 12 | 513034262 | PUMP FUEL This part replaces 513033508. |
| 13 | 513033180 | Ring |
| 14 | 513033334 | Gasket |
| 15 | 513033418 | RH Cap |
| 16 | 513033419 | LH Cap |
| 17 | 513033326 | Shoulder Bushing |
| 19 | 513033135 | Locking Clip |
| 20 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 21 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 22 | 293650047 | Crimp Clamp, 15.3-706R |
| 23 | 513033336 | FILTER CLIP - Call your local BRP dealership |
