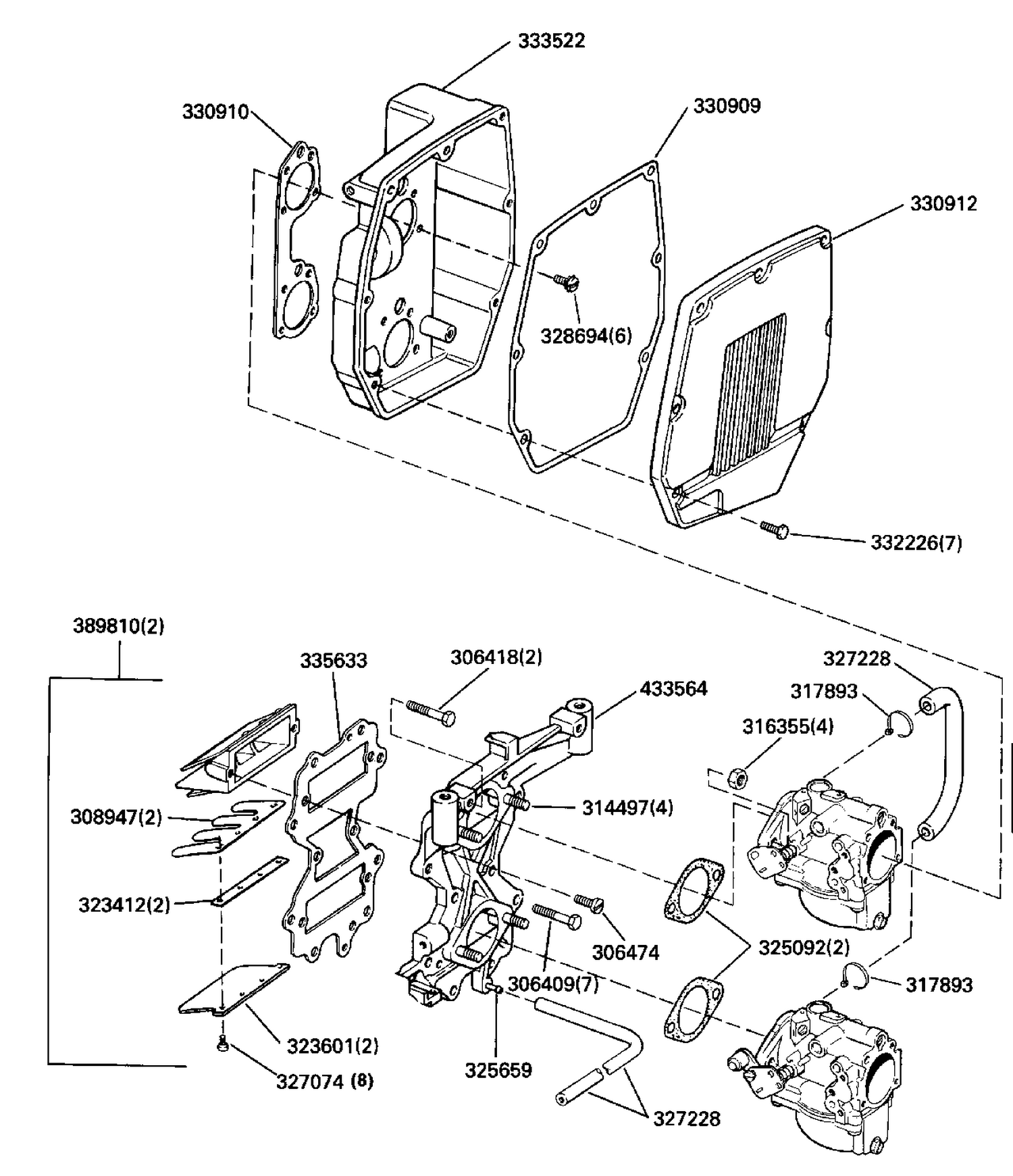

INTAKE MANIFOLD
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 0306409 | 0306409 | VIS, collecteur vers carter-moteur |
| 0306418 | 0306418 | VIS, ancrage |
| 0306474 | 0306474 | SCREW |
| 0316355 | 0316355 | BUT, Carburetor mounting |
| 0325092 | 0325092 | GASKET |
| 0330909 | 0330909 | GASKET |
| 0330910 | 0330910 | GASKET |
| 0330912 | 0330912 | COVER, Air silencer |
| 0333522 | 0333522 | BASE |
| 0335633 | 0335633 | GASKET |
| 0389810 | 0389810 | LEAF PLATE |
| 0433564 | 0433684 | MANIFOLD Assy This part replaces 0433564. |
