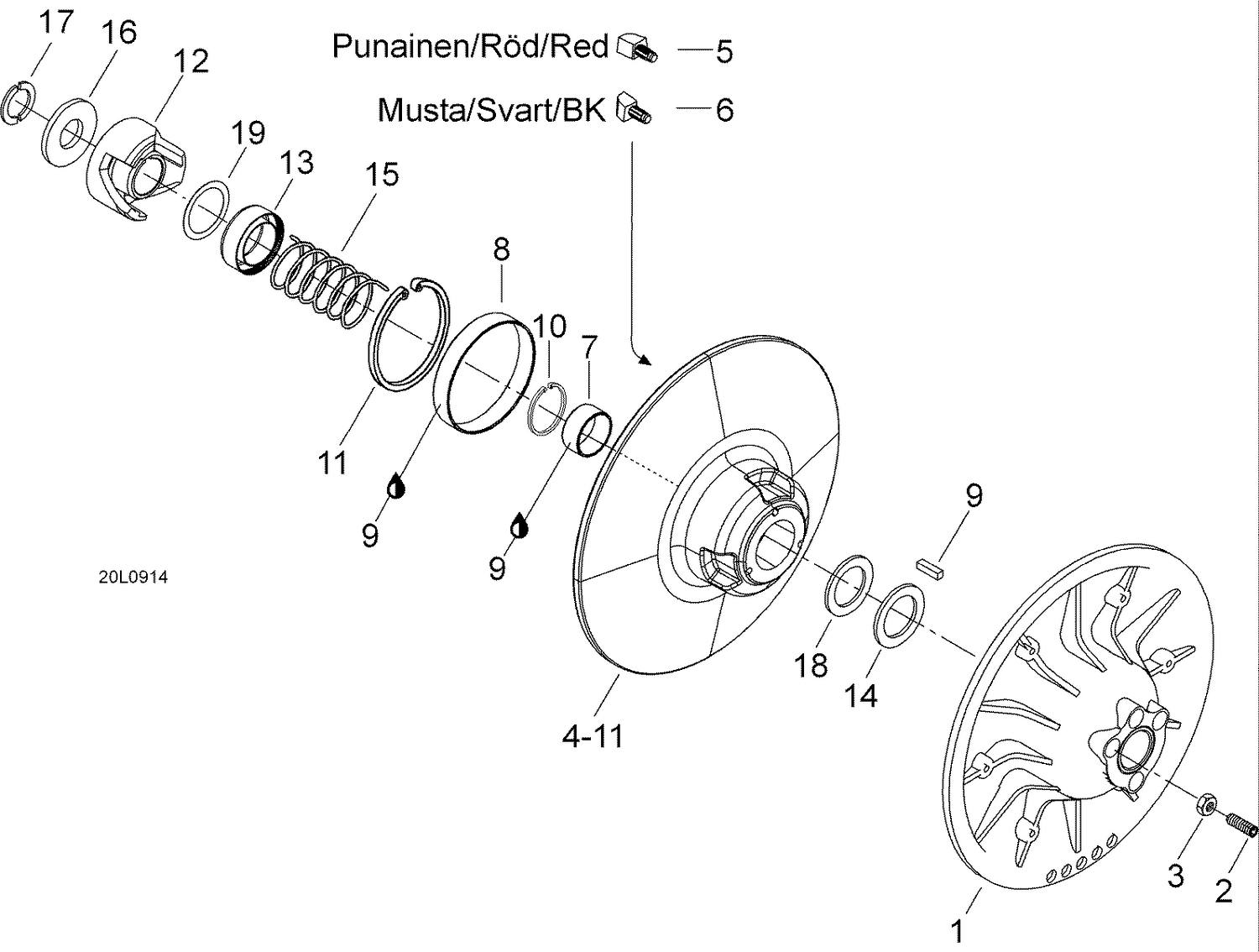

| Ref | Part Number | Description |
|---|
| 2 |
250000408 |
Socket Set Screw, M6x25 mm. This part replaces 206262599. |
| 3 |
233061414 |
Elastic flange nut M6 |
| 5 |
417126373 |
Front cam shoe slide, RD |
| 6 |
417126374 |
Front cam shoe slide, BK |
| 7 |
417126901 |
BUSHING - Call your local BRP dealership |
| 8 |
417126902 |
BUSHING - Call your local BRP dealership |
| 9 |
413703100 |
Loctite 609, 10 ml |
| 10 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 11 |
417126878 |
CIRCLIP - Call your local BRP dealership |
| 12 |
417126830 |
CAM ASS'Y - Call your local BRP dealership |
| 13 |
417126381 |
GUARD - Call your local BRP dealership |
| 14 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 15 |
417127061 |
Spring, Brown |
| 16 |
417126733 |
SPACER - Call your local BRP dealership |
| 17 |
417126734 |
HALF KEY - Call your local BRP dealership |
| 18 |
504112300 |
SHIM - Call your local BRP dealership |
| 19 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
