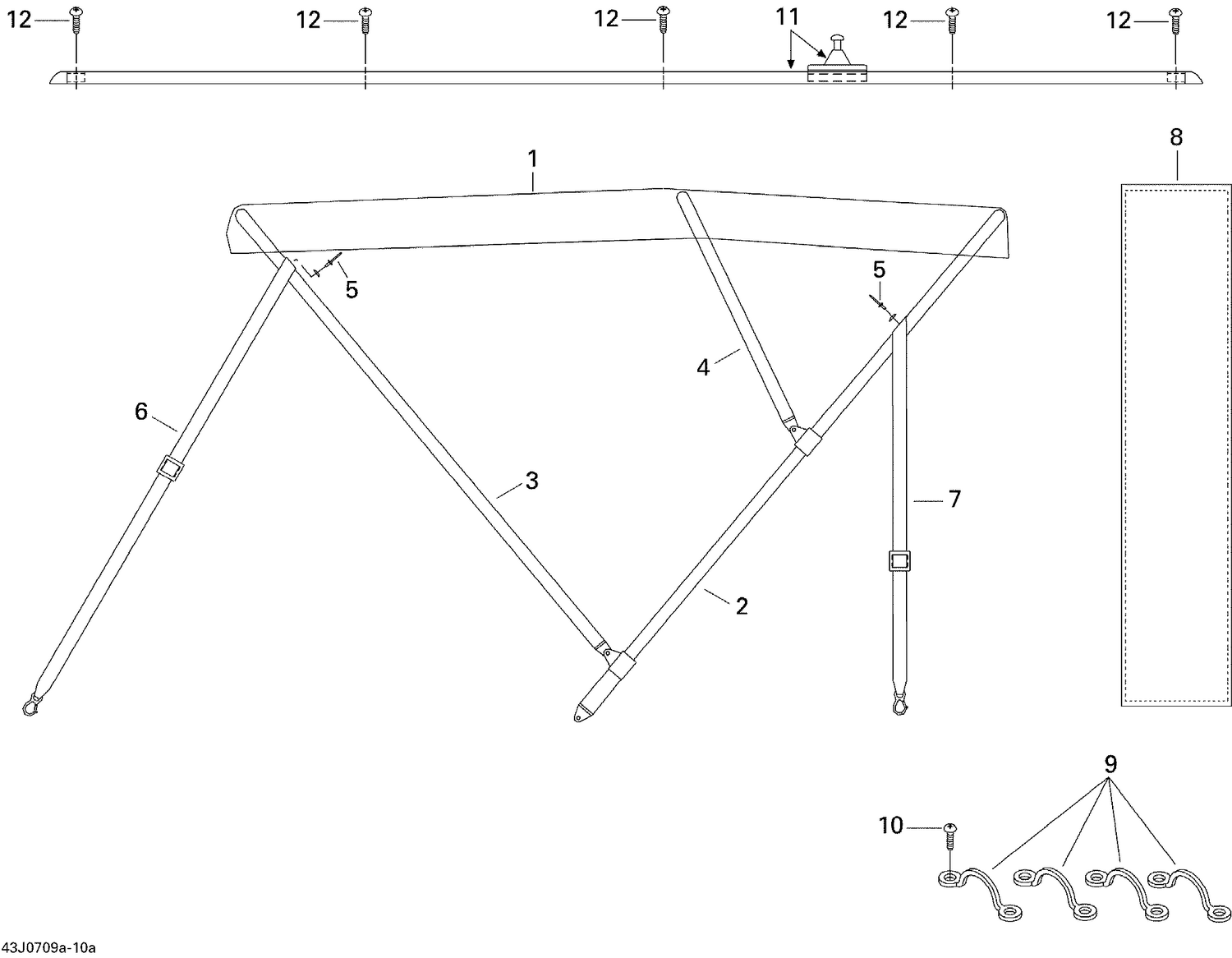

09- Bimini Top
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204072171 | Bimini Top Canvas |
| 2 | 204071608 | REAR BRACE - Call your local BRP dealership |
| 3 | 204071609 | FRONT BRACE - Call your local BRP dealership |
| 4 | 204071610 | Upper Brace |
| 5 | 293150039 | Pop Rivet 3/16" |
| 6 | 204071611 | FRONT STRAP - Call your local BRP dealership |
| 7 | 204071612 | Rear Strap |
| 8 | 204072172 | Bimini Top Boot |
| 9 | 204071845 | STRAP EYE - Call your local BRP dealership |
| 10 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 11 | 204072333 | Slide Rail |
