Parts Catalog

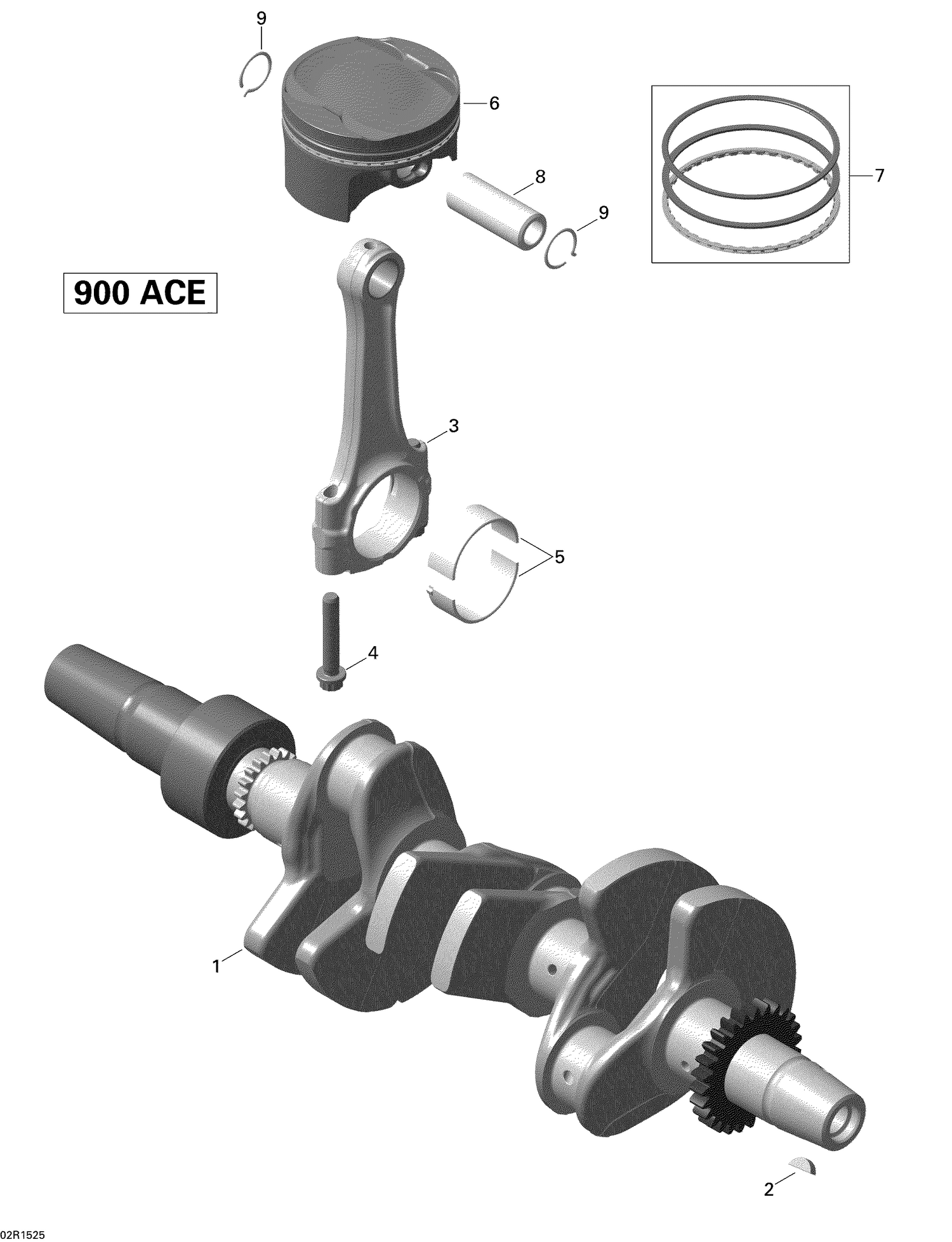

01- Crankshaft And Pistons _02R1525

Parts (5)

Ref	Part Number	Description
2	420246571	Woodruff Key
4	420641794	Connecting Rod Screw M7 X 1 This part replaces 420641790.
5	420933191	Plain Bearing
7	420892824	Piston Ring Set
8	420916510	Piston Pin
