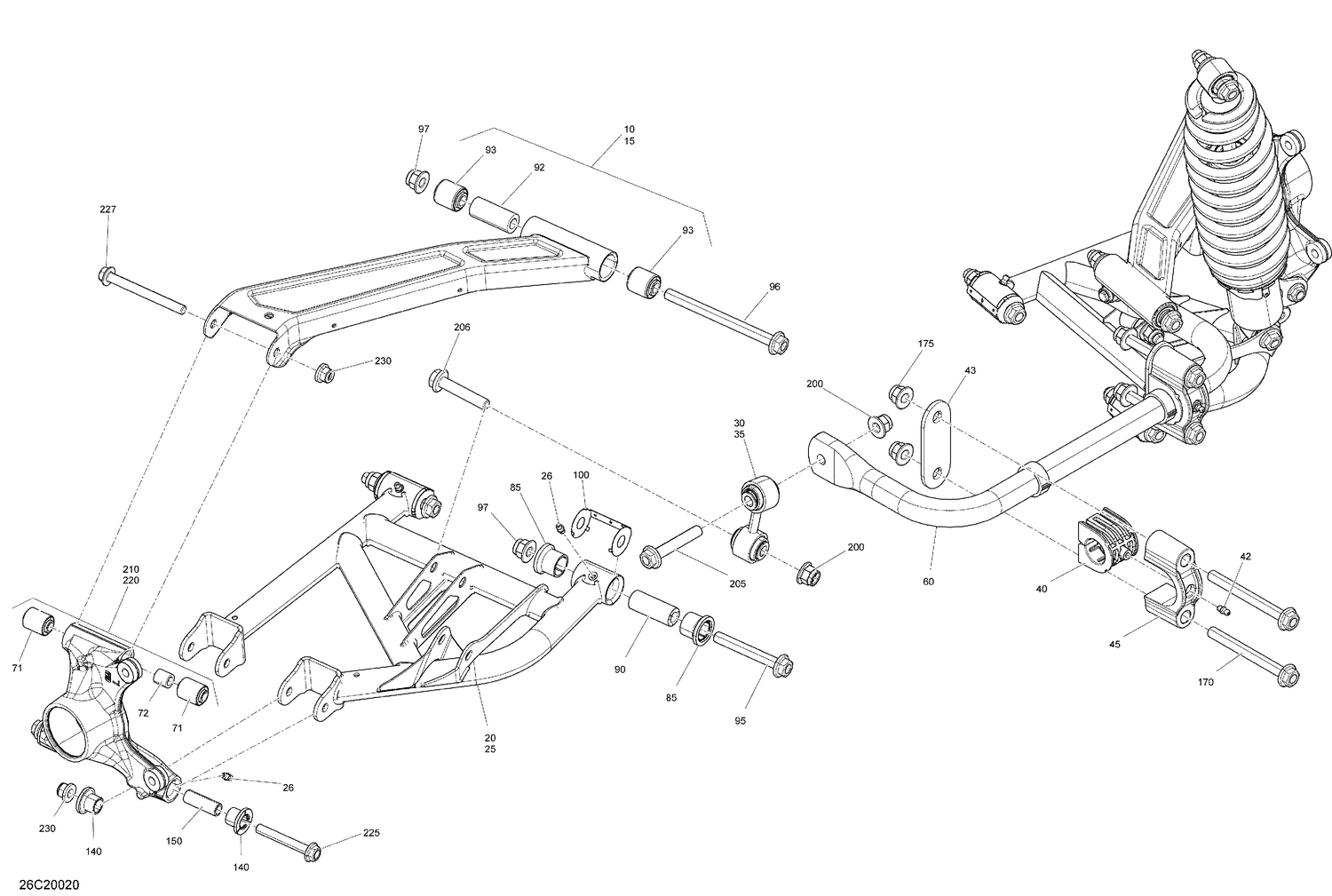

| Ref | Part Number | Description |
|---|
| 10 |
715006622 |
Hyper Silver, LH Upper Suspension Arm Ass'y This part replaces 706003878. |
| 15 |
715006623 |
Hyper Silver, RH Upper Suspension Arm Ass'y This part replaces 706003879. |
| 20 |
706003893 |
LH Lower Suspension Arm |
| 25 |
706003894 |
RH Int. Suspension Arm |
| 26 |
408200700 |
Grease Fitting |
| 30 |
706003004 |
Sway Bar Double Link |
| 35 |
706003003 |
Sway Bar Double Link |
| 40 |
706004266 |
Stabilizer Bar Bushing This part replaces 706002971. |
| 42 |
408200700 |
Grease Fitting |
| 43 |
706002977 |
Plate Support |
| 45 |
706002970 |
Clamp |
| 60 |
706003475 |
Sway Bar Ass'y |
| 71 |
Not |
Available As Spare Part - Suspension Arm Bushing |
| 72 |
Not |
Available As Spare Part - Spacer |
| 85 |
706204409 |
Suspension Arm Bushing This part replaces 706201659. |
| 90 |
706202257 |
Interior Bushing |
| 92 |
Not |
Available As Spare Part - Spacer |
| 93 |
Not |
Available As Spare Part - Suspension Arm Bushing |
| 95 |
250000859 |
Flange Screw M12 X 85 |
| 96 |
250000861 |
Flange Screw M12 X 145 |
| 97 |
233221466 |
Elastic Flange Nut M12 |
| 100 |
706202300 |
Wear Plate |
| 140 |
703500875 |
Suspension Arm Bushing Kit |
| 150 |
703500875 |
Suspension Arm Bushing Kit |
| 170 |
250000860 |
Screw Flange M12 X 115 |
| 175 |
233221466 |
Elastic Flange Nut M12 |
| 200 |
233221466 |
Elastic Flange Nut M12 |
| 205 |
250000858 |
Hex. Flange Screw M12 X 70 |
| 206 |
250000857 |
Flange Screw M12 X 60 |
| 210 |
715006137 |
LH Rear Knuckle Ass'y |
| 220 |
715006138 |
RH Rear Knuckle Ass'y |
| 225 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 227 |
230600046 |
Hex Flange Screw DIN.6921 - Call your local BRP dealership |
