Parts Catalog

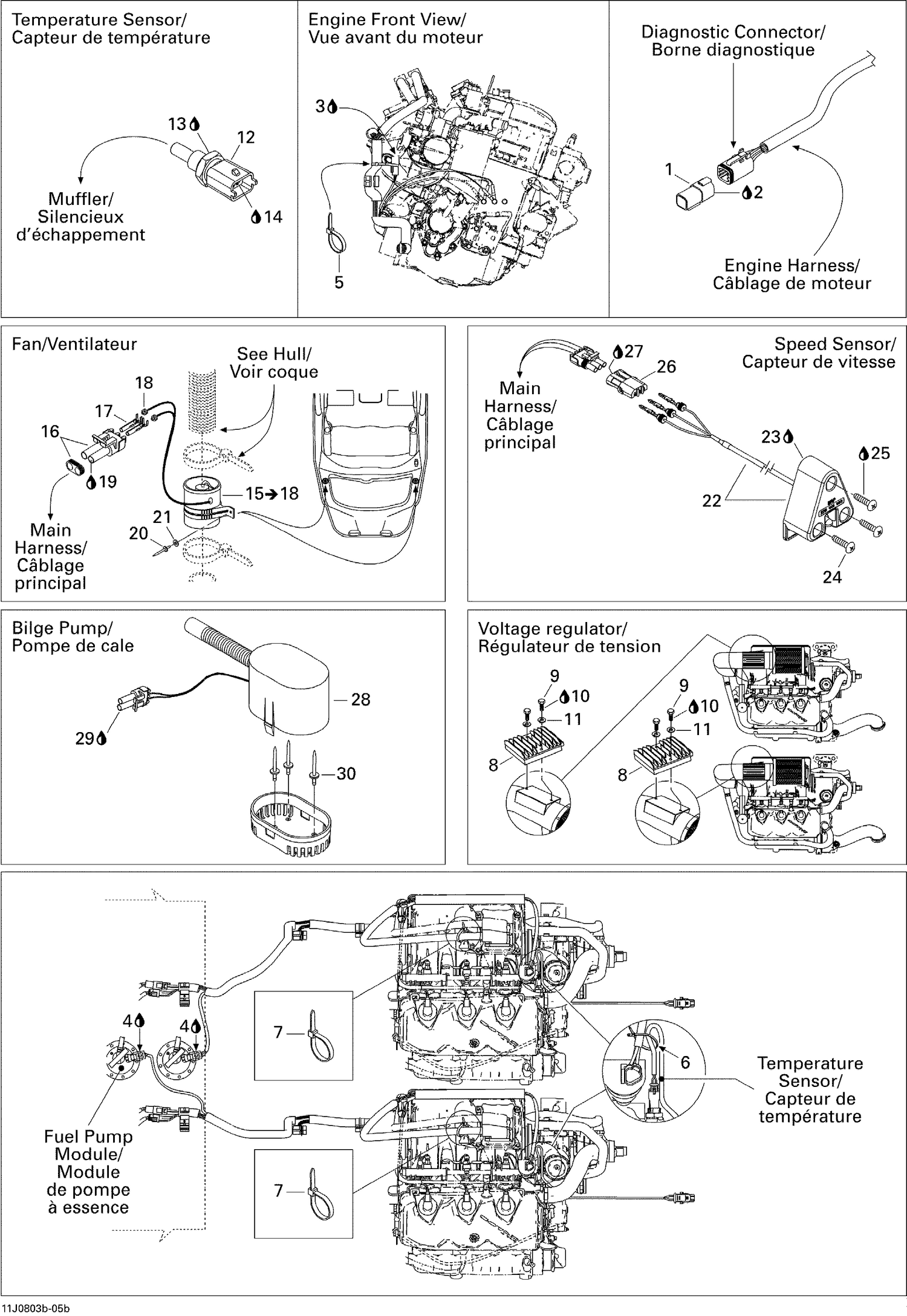

10- Electrical Accessories 2

Parts (27)

Ref	Part Number	Description
1	278002704	Diagnostic Connector This part replaces 278002148.
2	219704453	Was 293550004 Dielectric Grease, 150 g
3	219704453	Was 293550004 Dielectric Grease, 150 g
4	219704453	Was 293550004 Dielectric Grease, 150 g
5	414115200	Tie-Rap 180 mm
6	293750002	Tie Wrap 142 mm
7	293750002	Tie Wrap 142 mm
8	710001103	Voltage Regulator
9	204100226	HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership
10	293800060	Loctite 243, 10 ml
11	211200025	Lock Washer 1/4”
12	278002895	Temperature Sensor This part replaces 278001016.
14	219704453	Was 293550004 Dielectric Grease, 150 g
16	278000220	Male Connector, 2 Circuits
17	278000223	Female Terminal
18	278000218	Wire Seal
19	219704453	Was 293550004 Dielectric Grease, 150 g
20	293150008	Pop Rivet 3/16" This part replaces 293150011.
21	234052600	Flat Washer 5 mm, Stainless
22	278001993	Speed Sensor This part replaces 204471107.
23	296000309	Silicone Sealant 51388, 300 ml
24	211000021	PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
25	296000309	Silicone Sealant 51388, 300 ml
26	278000281	Female Terminal Housing, 3 Circuits
27	219704453	Was 293550004 Dielectric Grease, 150 g
28	204471431	Bilge Pump
29	219704453	Was 293550004 Dielectric Grease, 150 g
