Home / BRP / ELECTRIC / Enduro 550 F RC, 2004 / BOW ARM & DECK BRACKET GROUP

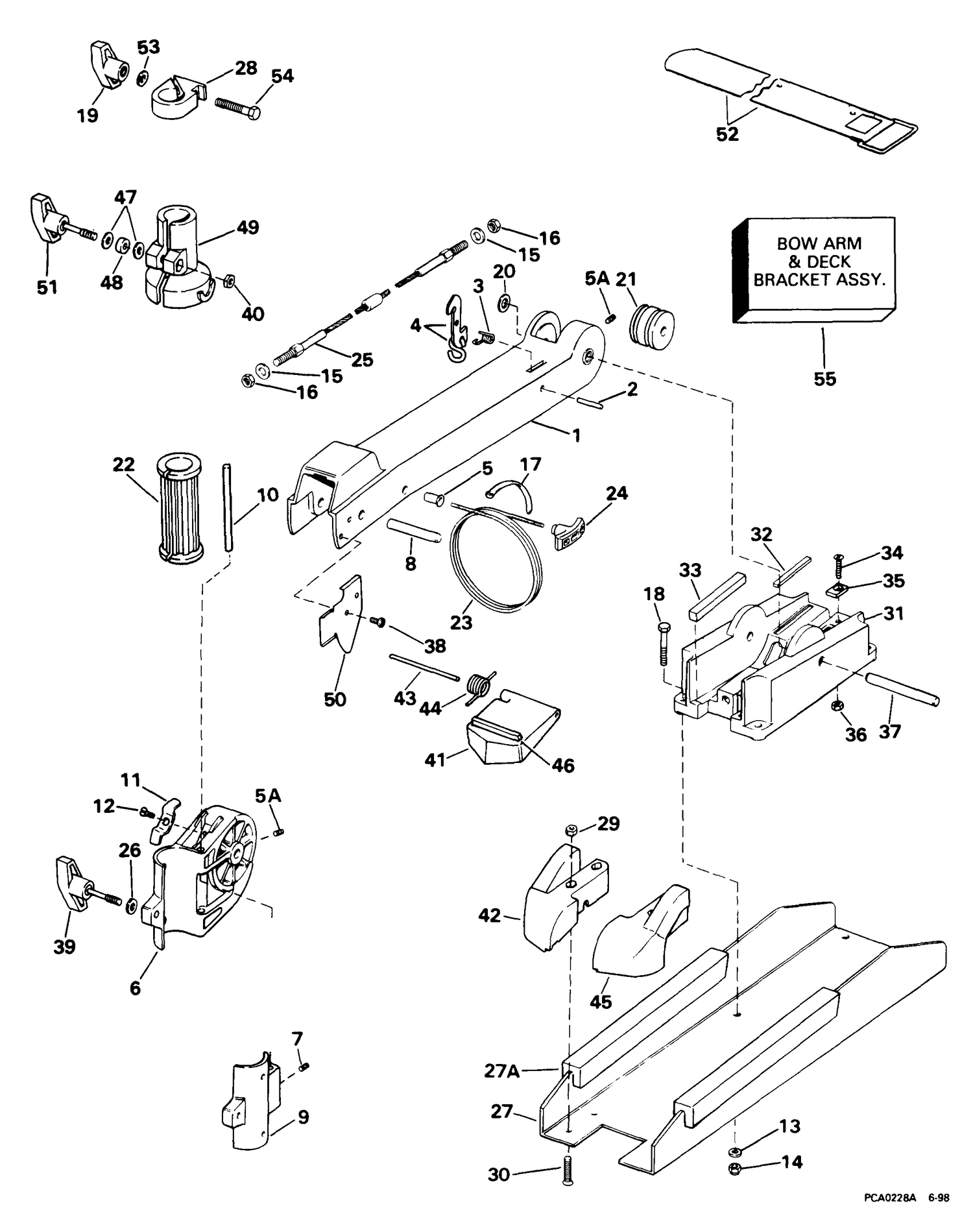

BOW ARM & DECK BRACKET GROUP

BOW ARM & DECK BRACKET GROUP

Parts (58)

RefPart NumberDescription
1 0433925 BOW ARM ASSY.
1 0433926 BOW ARM ASSY.
1 0433928 BOW ARM ASSY.
2 0321351 PIVOT PIN, Latch
3 0333726 SPRING
4 0116529 LATCH, Bow arm
5 0320356 EYELET
5A 0321223 SET SCREW
6 0397886 BRACKET & PIN ASSY. This part replaces 0332333.
7 0321223 SET SCREW
8 0328395 PIN, Arm to bracket
9 0332773 CLAMP
10 0329439 PIN
11 0332334 PLATE, Motor tube bracket
12 0310096 SCRE, Throttle link
17 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
18 0334688 SCREW, Mounting bracket to boat
19 0398863 ADJUSTMENT KNOB, Tube to bracket
20 0309335 WASHER
21 0319711 DRUM, Cable
22 0327269 BUSHING
23 ROPE, Latch release
24 0325747 HANDLE
25 0397704 CABLE ASSY., Bow arm
25 0397937 CABLE ASSY., Bow arm
25 0432788 CABLE ASSY., Bow arm
27 0394318 MOTOR REST ASSY
27 0397458 MOTOR REST ASSY.
27 0432789 MOTOR REST ASSY.
27A 0325705 BUMPER, Motor rest
27A 0332346 BUMPER, Motor rest
27A 0334848 BUMPER, Motor rest
28 0325617 CLAMP, Motor tube height adj.
30 0335565 SCREW, Guide to motor rest
31 0432081 MOUNTING BRACKET ASSY., Arm to deck
32 0319750 PAD, Deck bracket
33 0320791 PAD
34 0116414 SCREW, Plate to bracket
35 0321334 PLATE, Bow arm latch
37 0334291 PIN, Arm to deck bracket
39 0398862 ADJUSTMENT KNOB ASSY.
41 0394798 GUIDE ASSY
42 0329626 GUIDE, Starboard
43 0329627 PIN
44 0329628 SPRING, Guide
46 0320791 PAD
48 0326489 BUSHING, Knob to steering friction clamp
49 0326490 CLAMP, Steering friction
50 0326491 ARM, Steering friction
51 0398862 ADJUSTMENT KNOB ASSY.
52 0335466 STRAP, Bow arm to bracket
54 0306427 BOLT
55 0116761 BOW ARM & DECK BRKT. ASSY.
55 0116762 BOW ARM & DECK BRKT. ASSY.
55 0116769 BOW ARM & DECK BRKT. ASSY.
55 0116770 BOW ARM & DECK BRKT. ASSY.
0394795 0394795 MOTOR GUIDE ASSEMBLY
0397886 0397886 BRACKET & PIN ASSY.
