Parts Catalog

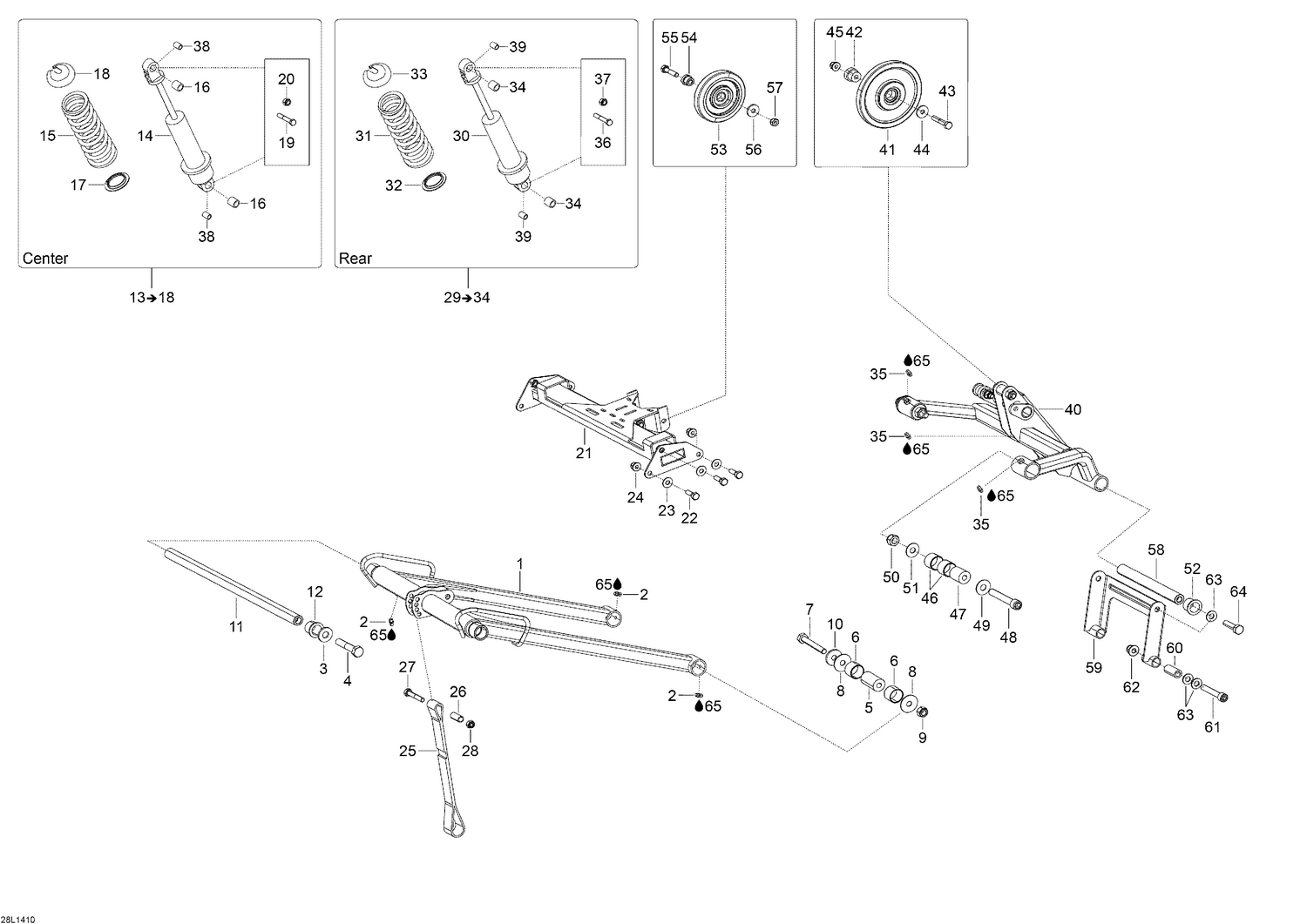

08- Rear Suspension

Parts (62)

Ref	Part Number	Description
1	503192557	Front Arm
2	408200700	Grease Fitting
3	250200131	Washer Spring Conical
4	250000555	Hex. Cap Screw M12 x 60
5	605354157	Shaft
6	503193700	Bushing
7	207007044	Hex. Cap Screw M10 x 70
8	605355801	Washer
9	232500416	Elastic Stop Nut M10
10	503183300	Washer
11	503192046	Shaft
12	31024	Cushion
14	503193516	Shock, Front Arm
15	503192431	Spring, Front Arm
16	31094	Cushion
17	230078	Adjusting Cam
18	230076	Spring Seat
19	207004544	Hex. Screw M10 X 45
20	232500416	Elastic Stop Nut M10
21	503192566	Middle Beam
22	250000556	Hex. Cap Screw M8 x 25
23	503193095	WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership
24	233281414	Hex. Flange Elastic Nut M8
25	605355116	Limiter Strap
26	605455335	Sleeve
27	207084544	Hex. Screw M8 X 45
28	232581414	Hex. Elastic Stop Nut M8
30	503193518	Shock, Rear Arm
31	605625009	Spring, Rear Arm
32	230078	Adjusting Cam
33	230076	Spring Seat
34	31094	Cushion
35	408200700	Grease Fitting
36	40134	Screw Socket HD.DIN 912
37	232500416	Elastic Stop Nut M10
38	5446652	Bushing
39	5446652	Bushing
40	503192524	Rear Arm Weld
41	503193644	Idler Wheel 133mm
42	605454461	Sleeve
43	207084544	Hex. Screw M8 X 45
44	20077	M8 Washer
45	233281414	Hex. Flange Elastic Nut M8
46	503193700	Bushing
47	605354157	Shaft
48	250000560	Socket Head Screw M10 x 65
49	503191926	Washer
50	232500416	Elastic Stop Nut M10
51	605355801	Washer
52	31024	Cushion
53	572043500	Idler Wheel
54	503193330	Sleeve
55	207083544	Hex. Screw M8 X 35
56	20077	M8 Washer
57	232581414	Hex. Elastic Stop Nut M8
58	605355118	Shaft
59	503192571	Rear Swing
60	503192341	Rear Swing Shaft
61	205006044	Socket Head Screw M10 x 60
62	233201414	Hex. Flanged Elastic Nut M10
63	234001410	Flat Washer 10 mm
64	207204044	Hex Cap Screw Din.931 S.grip
