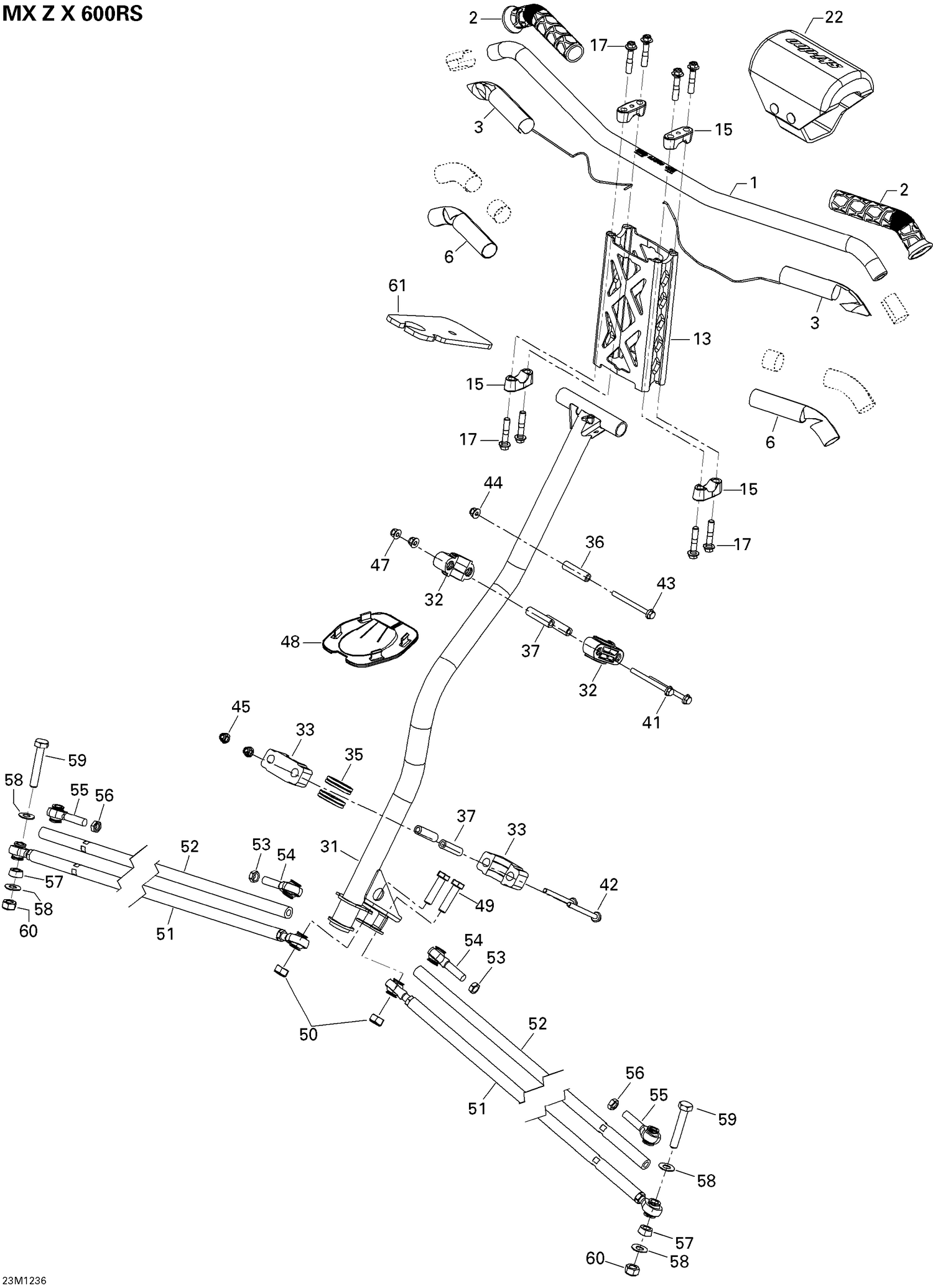

| Ref | Part Number | Description |
|---|
| 1 |
506152712 |
FULL MOON HAND BAR - Call your local BRP dealership This part replaces 506152537. |
| 2 |
506152486 |
Grip This part replaces 506152226. |
| 3 |
506152484 |
Heating Element 20W |
| 6 |
506152360 |
Insulant |
| 13 |
506152529 |
Gold Handle Bar Extension |
| 15 |
506152751 |
Steering Support This part replaces 506152395. |
| 17 |
250000352 |
Hex. Flange Screw M8 X 40 |
| 22 |
506152522 |
STEERING PAD - Call your local BRP dealership |
| 31 |
506152962 |
Steering Column This part replaces 506152494. |
| 32 |
506152293 |
Half-Housing |
| 33 |
506152549 |
LOWER HALF-HOUSING - Call your local BRP dealership |
| 35 |
506152518 |
Lower Vibration Ring This part replaces 506152218. |
| 36 |
506152297 |
Housing Bushing |
| 37 |
506152297 |
Housing Bushing |
| 41 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 42 |
207667044 |
Hex. Flange Screw M6 X 70 |
| 43 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 44 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 45 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 47 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 48 |
506152163 |
Plate |
| 49 |
207004034 |
Hex. Screw M10 X 1.5 X 40 |
| 50 |
232500416 |
Elastic Stop Nut M10 |
| 52 |
506152499 |
ROD_TIE ASSY - Call your local BRP dealership This part replaces 506152500. |
| 53 |
506152081 |
LH Thread Ball Joint |
| 54 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 55 |
506152019 |
RH Threaded Ball Joint |
| 56 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 57 |
234001410 |
Flat Washer 10 mm |
| 58 |
506152194 |
Washer |
| 59 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 60 |
232500416 |
Elastic Stop Nut M10 |
