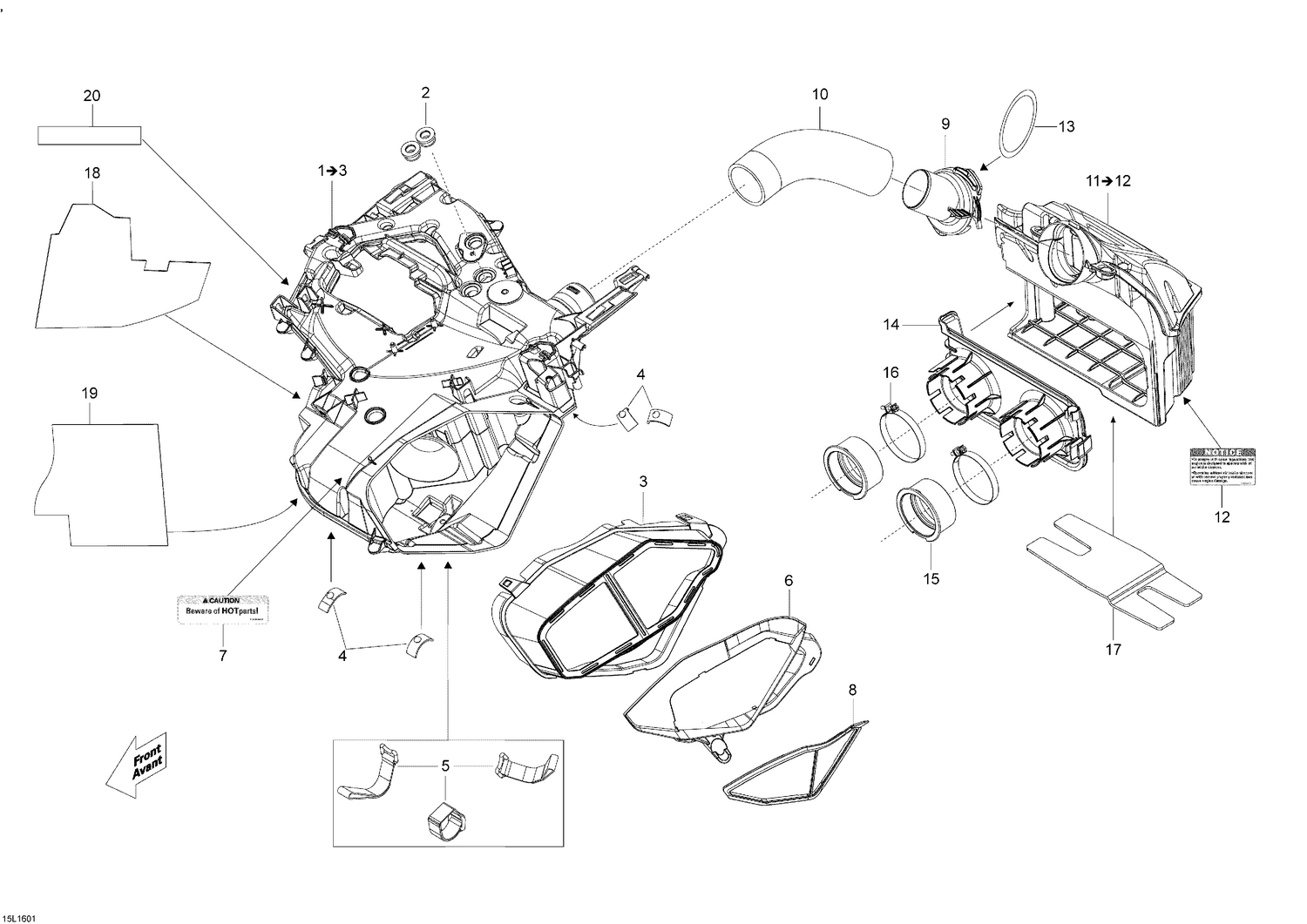

02- Air Intake System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000574 | Grommet |
| 3 | 508000595 | Air Intake Filter |
| 4 | 508000537 | Rubber Stopper |
| 5 | 508000820 | Strip Velcro |
| 6 | 508001021 | Adapter This part replaces 508000687. |
| 7 | 516006903 | Hot Parts Decal |
| 8 | 508000609 | Air Filter |
| 9 | 508000562 | Link |
| 10 | 508000406 | Tube |
| 12 | 516005876 | Air Intake Decal |
| 13 | 293300115 | O-Ring |
| 14 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 15 | 508000594 | Air Intake Adapter |
| 16 | 508000369 | Clamp |
| 17 | 508000674 | Insulated Foam |
| 18 | 508000684 | Heat Shield |
| 19 | 508000685 | Heat Shield |
