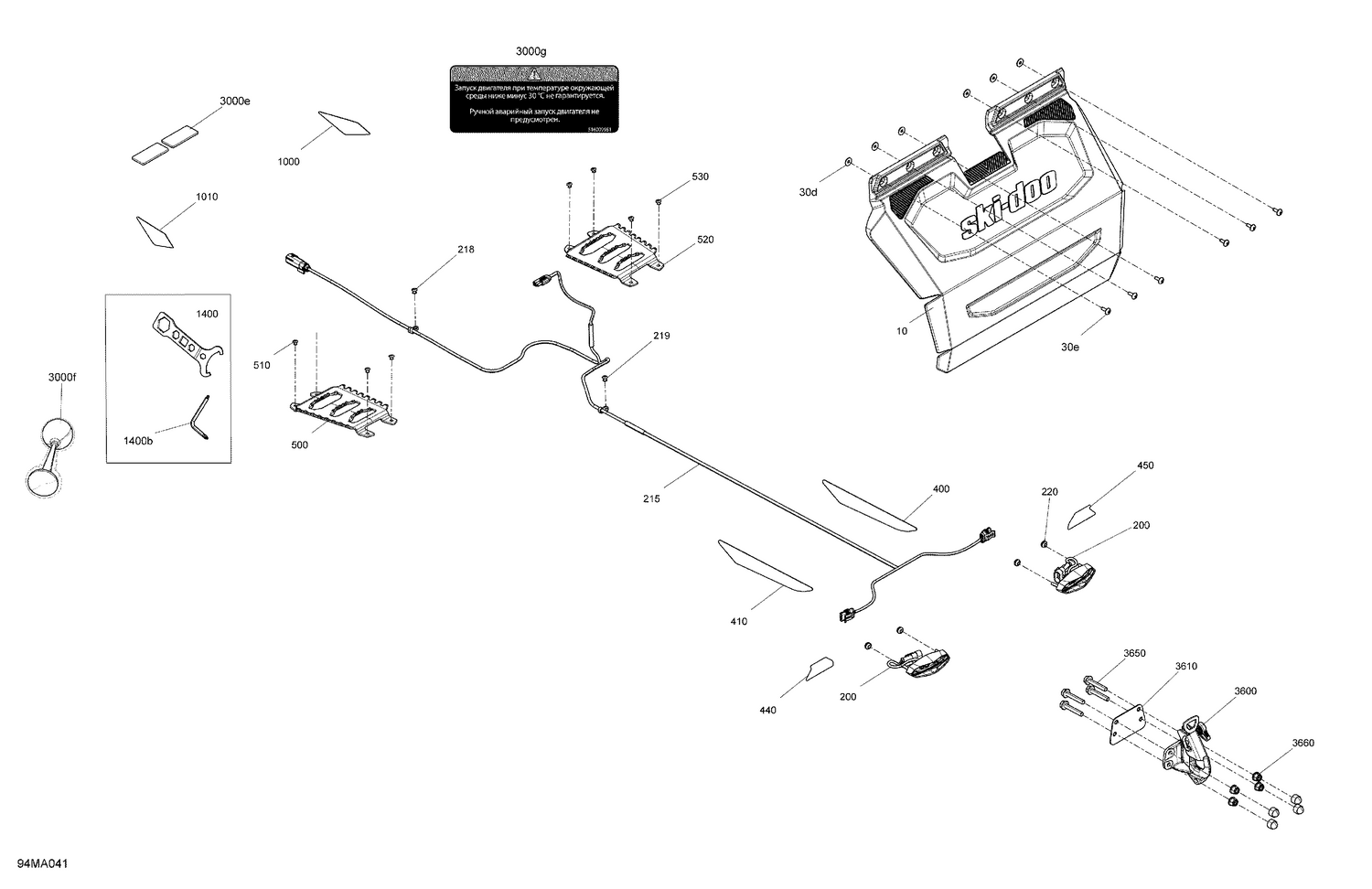

09- Miscellaneous - Utilities
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | XXX | Not Available As Spare Parts |
| 30d | 250200025 | Washer M5 |
| 30e | 250000676 | Forming Screw M5 x 16 |
| 200 | 520002636 | Tail Light This part replaces 520001738. |
| 215 | 515178633 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 219 | 390402200 | Pop Rivet 3/16" |
| 220 | 293720101 | Grommet |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 500 | 520002896 | Deep Black, Passenger Footrest This part replaces 520001782. |
| 510 | 293150102 | Rivet 3/16" |
| 520 | 520002896 | Deep Black, Passenger Footrest This part replaces 520001782. |
| 530 | 293150102 | Rivet 3/16" |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3000e | 520000271 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 3600 | 520001826 | Hitch Ass'y |
| 3610 | 511001560 | RH Chassis Reinforcement |
| 3650 | 207684544 | Hex. Flange Screw M8 X 45 |
