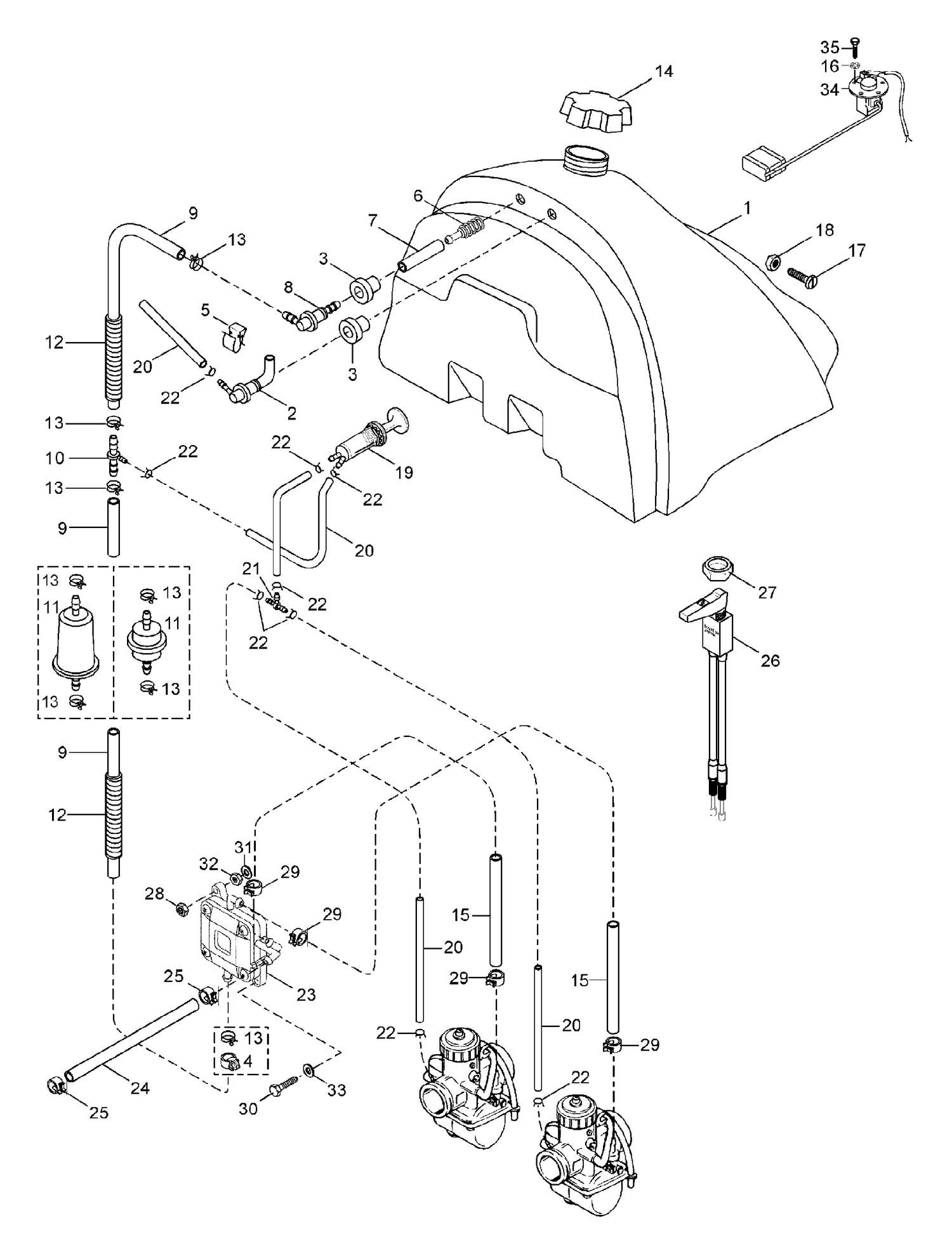

| Ref | Part Number | Description |
|---|
| 1 |
5243132 |
Fuel tank, holes |
| 2 |
5442152 |
Air vent fitting a’ssy |
| 3 |
280000674 |
Grommet This part replaces 28037. |
| 4 |
27040 |
Clamp |
| 5 |
414227300 |
Clip |
| 6 |
414872100 |
Fuel filter |
| 7 |
39048 |
Fuel line 13.5/8.5 |
| 8 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 9 |
39046 |
Hose 11/8 |
| 10 |
415119300 |
Plastic T-fitting (Primer) |
| 11 |
414536500 |
Fuel filter |
| 12 |
28012 |
Tubing |
| 13 |
27119F |
Clamp |
| 14 |
282594 |
Cap assembly |
| 15 |
39004 |
Fuel line 8/5 |
| 16 |
20018 |
Washer |
| 17 |
40211 |
Screw M6x35 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 |
415060500 |
Primer This part replaces 414479200. |
| 20 |
39035 |
Airhose 5/3 |
| 22 |
543230 |
Clamp, primer hode |
| 23 |
403901200 |
Fuel pump |
| 24 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 25 |
414420700 |
Universal Spring Clamp |
| 26 |
535482 |
Choke |
| 27 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 28 |
Not |
Available As Spare Part - Nut elastic M6 - DOES NOT APPLY TO THIS MODEL |
| 29 |
414554800 |
Spring clamp |
| 30 |
40029 |
Screw M6x16 |
| 31 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 32 |
Not |
Available As Spare Part - Nut M6 - DOES NOT APPLY TO THIS MODEL |
| 33 |
20052 |
Lock washer |
| 34 |
5343169 |
Gauge Assy |
