Parts Catalog

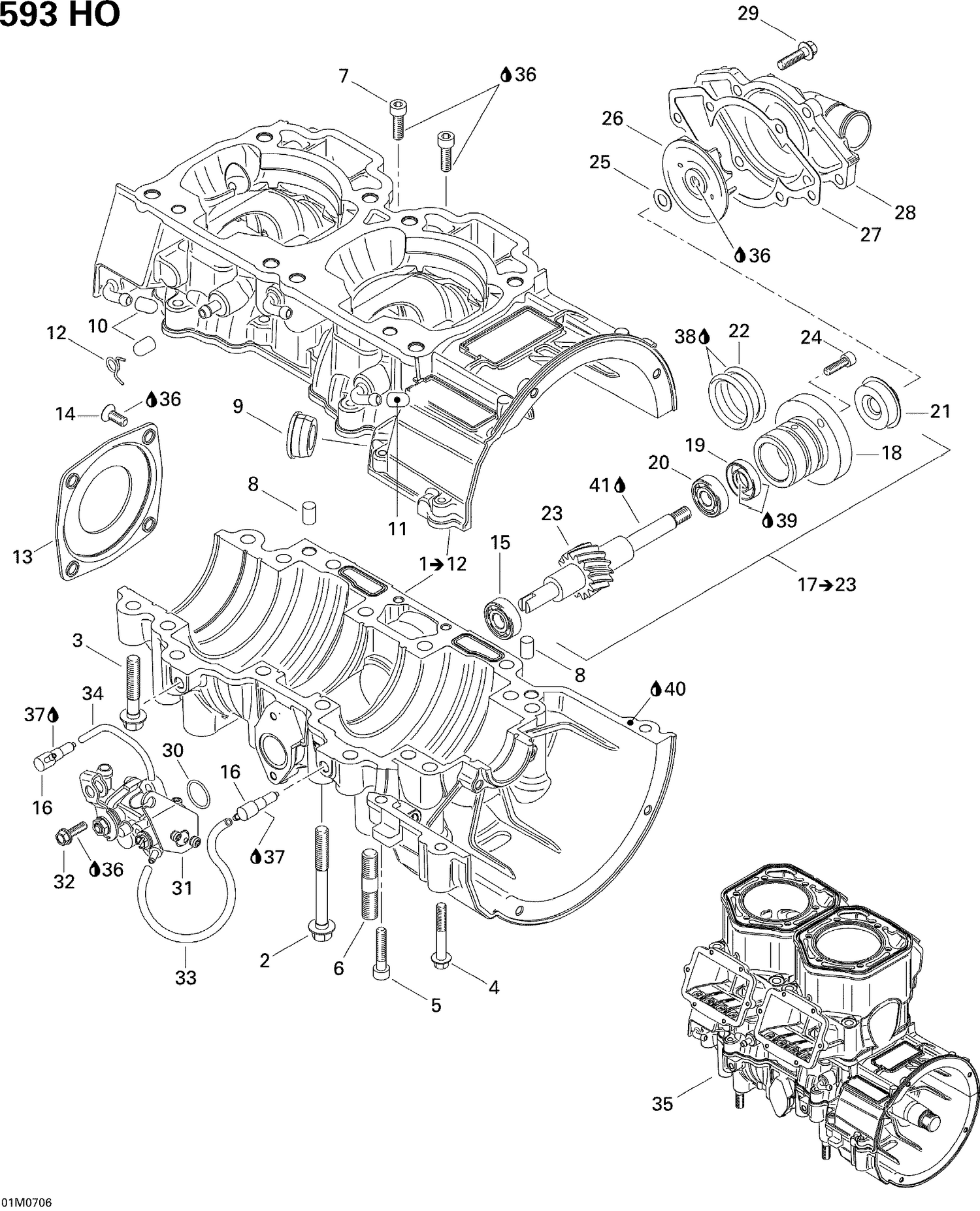

01- Crankcase, Water Pump And Oil Pump

Parts (39)

Ref	Part Number	Description
2	420640836	Hex. Collar Screw M8 X 75
3	420640433	Collar Hex Screw M8 X 45 This part replaces 420640431.
4	420640312	Allen Screw M6 x 45 This part replaces 420640311.
5	205063044	Socket Head Screw M6 X 30
6	420641834	STUD M10 X 29 - Call your local BRP dealership
7	420840403	Allen Screw M6 x 22 This part replaces 420840401.
8	420632010	Center Pin 8 X 12
9	420860965	Cable Grommet
10	420960770	Cap
11	420960777	CAP - Call your local BRP dealership
12	420938190	CLAMP - Call your local BRP dealership
13	420812422	Oil Seal Cover This part replaces 420812420.
14	420941436	Screw M6 X 20 This part replaces 420941430.
15	420232100	Ball Bearing
16	420956511	Check Valve This part replaces 420956510.
18	Not	Available As Spare Part - Step Collar
19	420230195	Oil Seal This part replaces 420230196.
20	420232100	Ball Bearing
21	420650371	Rotary Seal This part replaces 420650370.
22	420950890	O-Ring
23	Not	Available As Spare Part - Water Pump/iOil Pump Shaft
24	420840514	Allen Screw M5 x 16 This part replaces 420840511.
25	420227945	Thrust Washer
26	420222505	Water Impeller
27	420931811	Gasket This part replaces 420931810.
28	420922630	Water Pump Housing
29	420240034	Hex. Screw M6 X 25 This part replaces 420240031.
30	293300041	O-Ring
31	420888780	Oil Pump Ass'y
32	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
33	219704404	Oil Hose 1500Mm Long
34	219704404	Oil Hose 1500Mm Long
35	420059342	Short Block 593 H.O.
35	421000615	REBUILD-SHORT-BLOCK PACKAGE - Call your local BRP dealership
36	293800060	Loctite 243, 10 ml
37	219703000	Sealant Loctite 648 This part replaces 413711400.
38	413707000	Dow Corning 111, 150 g
39	420899271	Petamo Grease, GHY133N, 400 g
40	293800081	Loctite 5910, 300 ml
