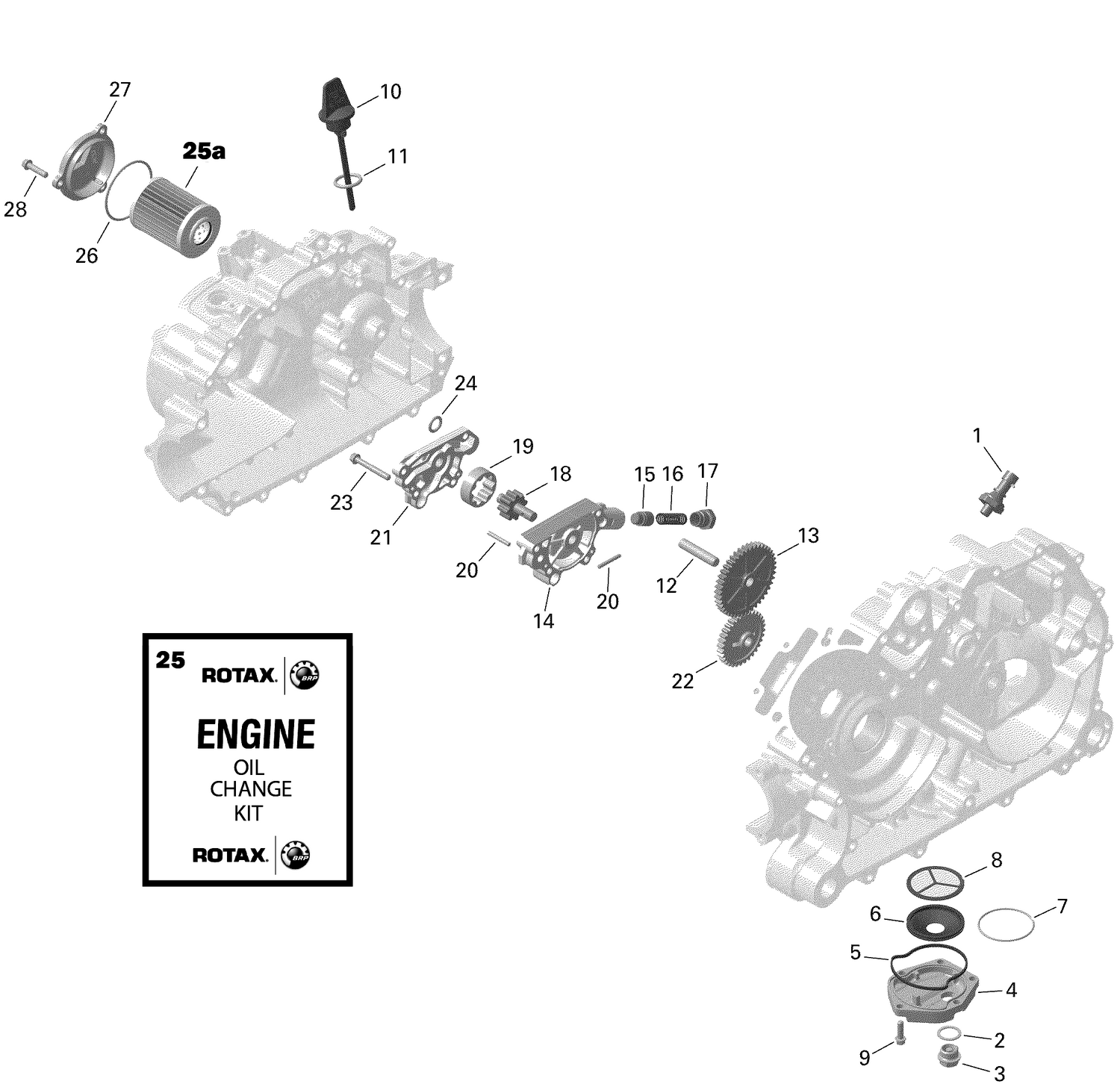

01- Rotax - Lubrication - 450
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420256915 | Oil Pressure Switch |
| 2 | 420552280 | Crush Washer |
| 3 | 420840278 | Drain Plug M18 X 1.5 This part replaces 420840277. |
| 4 | 420211944 | Oil Sieve Cover |
| 5 | 420650560 | Rubber Ring |
| 6 | 420256650 | Oil Collector |
| 7 | 420650697 | O-Ring This part replaces 420650695. |
| 8 | 420256576 | Oil Sieve |
| 9 | 420440207 | Torx Flange Screw M6 X 20 |
| 10 | 420256800 | Oil Dipstick |
| 11 | 420631640 | O-Ring |
| 12 | 420229302 | Location Pin 10 M6x50 |
| 13 | 420635660 | Idle Gear, 42 Teeth |
| 14 | 420610221 | Oil Pump Housing |
| 15 | 420256922 | Piston Valve This part replaces 420256921. |
| 16 | 420238220 | Compression Spring |
| 17 | 420641167 | Plug Screw M16 |
| 18 | 420220814 | Oil Pump Shaft |
| 19 | 420256935 | Oil Pump Outer Rotor |
| 20 | XXX | Not Available As Spare Parts |
| 21 | 420232431 | Needle Pin |
| 21 | 420610570 | Oil Pump Cover |
| 22 | 420635220 | Oil Pump Gear, 32 Teeth |
| 23 | 420440324 | Torx Flange Screw M6 X 45 |
| 24 | 420250290 | O-ring |
| 25 | 9779257 | Ensemble de vidange d’huile synthétique 4T 0W-40 pour moteur Rotax de 450 cc ou moins |
| 25 | 9779487 | Can-Am Oil Change Kit 4T 5W40 450 CC or less Engine |
| 25a | 420256188 | Oil Filter |
| 26 | 420230923 | O-Ring This part replaces 420230920. |
| 27 | 420612135 | Oil Filter cover |
