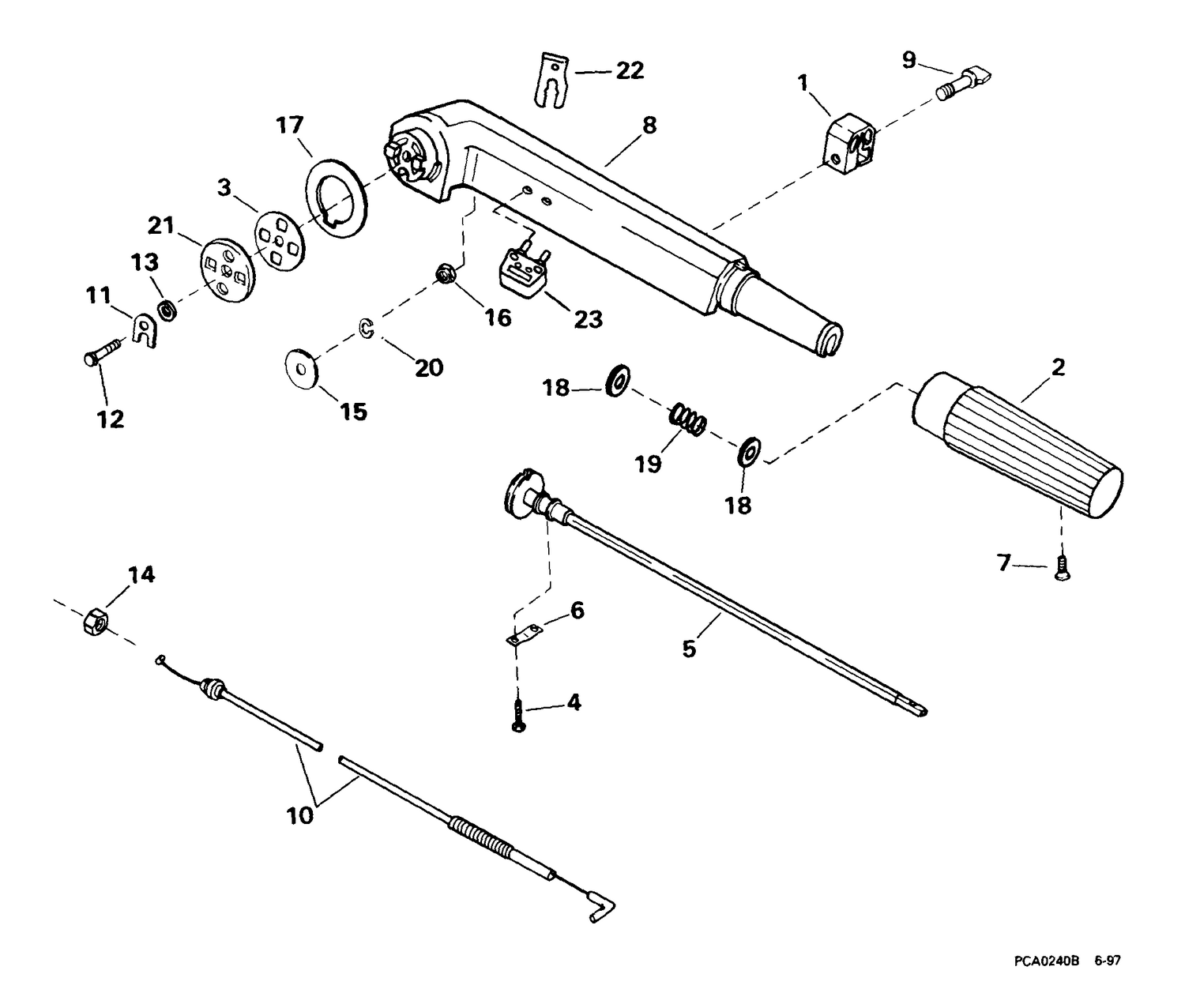

TILLER ARM
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0335980 | BLOCK, Friction |
| 2 | 0433578 | GRIP, Tiller arm |
| 3 | 0338955 | WASHER, Arm to housing |
| 4 | 0124880 | SCREW, Bracket, timing pointer |
| 5 | 0433328 | THROTTLE ROD ASSY. |
| 6 | 0335208 | RETAINER, Rod to arm |
| 7 | 0511292 | SCREW, Grip to rod |
| 8 | 0344333 | TILLER ARM |
| 9 | 0336007 | THUMBSCREW, Throttle friction |
| 10 | 0437512 | THROTTLE CABLE |
| 12 | 0305652 | VIS, manette des gaz |
| 16 | 0123603 | LOCKNUT, Cover |
| 17 | 0336214 | WASHER, Screw |
| 19 | 0336640 | SPRING, Grip to arm |
| 21 | 0338956 | PLATE, Retaining |
