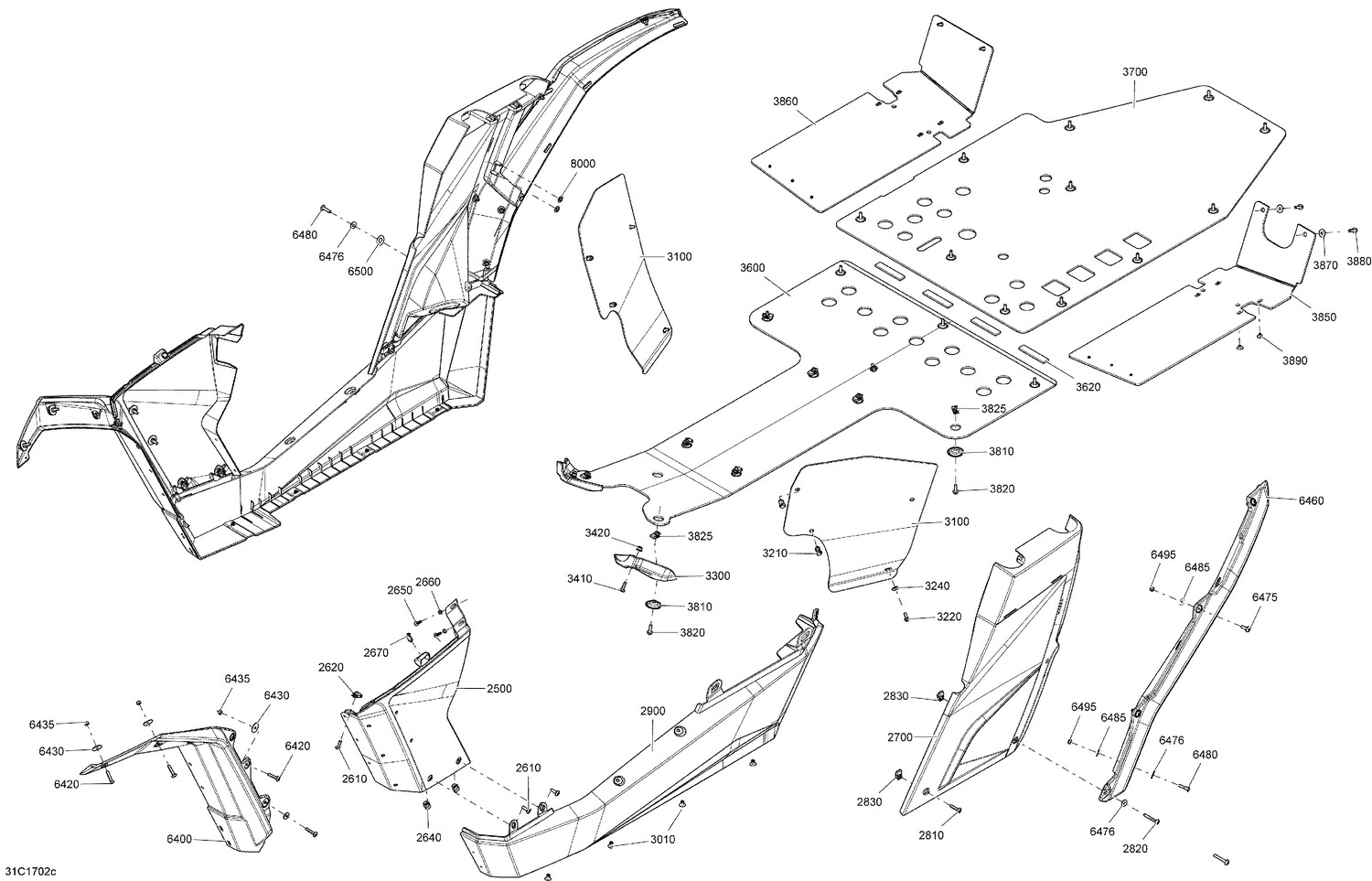

| Ref | Part Number | Description |
|---|
| 2500 |
705007358 |
White, LH Front Lateral Pannel |
| 2500 |
705007359 |
White, RH Front Lateral Pannel |
| 2500 |
705011644 |
Timeless Black, LH Front Panel This part replaces 705008488. |
| 2500 |
705011645 |
Timeless Black, RH Front Panel This part replaces 705008489. |
| 2500 |
705011650 |
PANEL_BODY FL B-282 - Call your local BRP dealership This part replaces 705009717. |
| 2500 |
705011651 |
PANEL_BODY FR B-282 - Call your local BRP dealership This part replaces 705009718. |
| 2610 |
250000722 |
Torx Screw M6 X 20 |
| 2620 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2640 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2650 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 2660 |
234051410 |
Flat Washer M5 |
| 2670 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 2700 |
705007362 |
White LH Rear Lateral Panel |
| 2700 |
705007363 |
White RH Rear Lateral Panel |
| 2700 |
705011710 |
PANEL_BODY REAR L B-302 - Call your local BRP dealership This part replaces 705008492. |
| 2700 |
705011711 |
Panel_Body Rear R B-302 This part replaces 705008493. |
| 2700 |
705011718 |
PANEL_BODY REAR L B-282 - Call your local BRP dealership This part replaces 705009721. |
| 2700 |
705011719 |
Hyper Silver, RH Rear Central Body Panel This part replaces 705009722. |
| 2810 |
250000843 |
Torx Truss Screw M6 X 30 |
| 2820 |
250000748 |
Torx Screw M6 X 45 |
| 2830 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2900 |
705006991 |
LH Lateral Middle Panel |
| 2900 |
705006992 |
RH Lateral Middle Panel |
| 3010 |
293150104 |
Pop Rivet 3/16" |
| 3100 |
705007827 |
INNER FENDER - Call your local BRP dealership |
| 3210 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 3220 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 3240 |
234062670 |
Stainless Steel Flat Washer |
| 3300 |
705006038 |
LH BUMPER SKID CAP - Call your local BRP dealership |
| 3300 |
705006039 |
RH BUMPER SKID CAP - Call your local BRP dealership |
| 3410 |
250000712 |
Torx Screw M6 X 20 |
| 3420 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 3600 |
705005798 |
Front Skid Plate |
| 3620 |
291001932 |
Pad |
| 3810 |
705007171 |
Cup |
| 3820 |
210262050 |
Hexagonal Head Screw |
| 3825 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 3860 |
705007038 |
RH Lateral Skid Plate |
| 3870 |
250200097 |
Flat Washer |
| 3880 |
210262050 |
Hexagonal Head Screw |
| 3890 |
293150104 |
Pop Rivet 3/16" |
